DeWalt DWS774 Original Instructions

25
s ) Hold the handle firmly when making an incomplete cut or
when releasing the switch before the saw head is completely
in the down position. The braking action of the saw may cause
the saw head to be suddenly pulled downward, causing a risk
ofinjury.
Additional Safety Rules for Mitre Saws
• Do not use the saw to cut other materials than those recommended by
themanufacturer.
• Do not operate the machine without guards in position, or if guards do
not function or are not maintainedproperly.
• Select the correct blade for the material to becut.
• Use correctly sharpened sawblades.
• Make sure that the blade rotates in the correctdirection.
• USE ONLY CROSSCUT SAW BLADES recommended for mitre saws. Do not
use carbide tipped blades with hook angles in excess of 7 degrees. Do not
use blades with deep gullets. These can deflect and contact the guard,
and can cause damage to the machine and/or seriousinjury.
• Never attempt to stop a machine in motion rapidly by jamming a tool or
other means against the blade; serious accidents canoccur.
• Before using any accessory consult the instruction manual.
The improper use of an accessory can causedamage.
• Ensure that the saw blade is mounted correctly beforeuse.
• Do not use blades of larger or smaller diameter than recommended. For
the proper blade rating refer to the technical data. Use only the blades
specified in this manual, complying with EN 847-1.
• Do not use HIGH SPEED STEELblades.
• Do not use cracked or damaged sawblades.
• Do not use any abrasive or diamonddiscs.
• Use only saw blades where the marked speed is at least equal to the
speed marked on thesaw.
• Do not wedge anything against the fan to hold the motorshaft.
• Never raise the blade guard manually unless the saw is switched off. The
guard can be raised by hand when installing or removing saw blades or
for inspection of thesaw.
• Check periodically that the motor air slots are clean and free ofchips.
• Please be aware of the following factors influencing exposure
to noise:
- use saw blades designed to reduce the emitted noise;
- use only well sharpened saw blades;
• Machine maintenance shall be conducted periodically;
• In case of an accident or machine failure, immediately turn the machine
off and disconnect machine from the powersource.
• Report the failure and mark the machine in suitable form to prevent
other people from using the defectivemachine.
• When sawing plastic melting of the material is to beavoided.

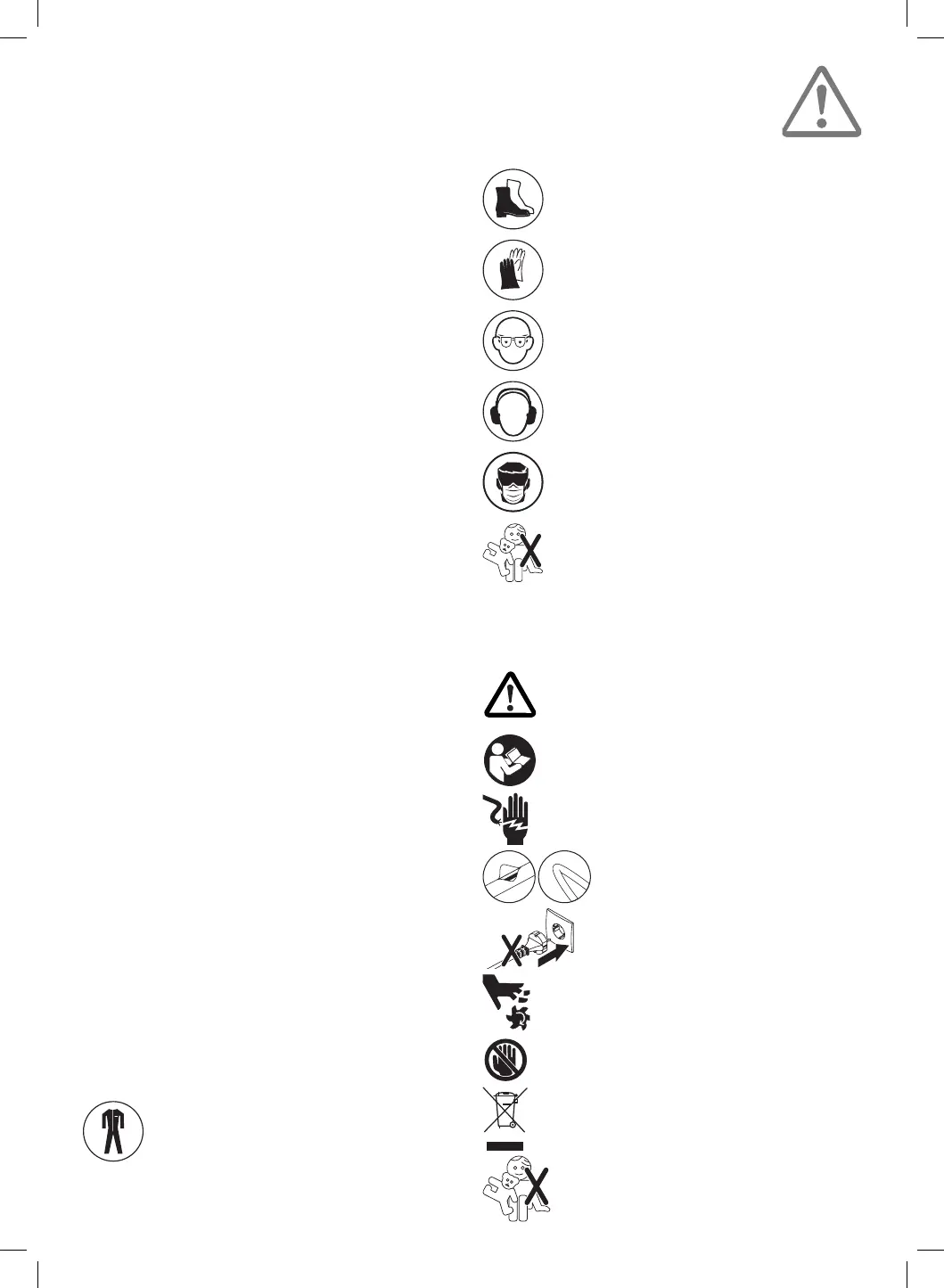

Personal Protective Equipment
Loose clothes, jewellery, noise and similar hazards may present adanger
to persons. Persons that will be using the device and have to reside in the
vicinity of the device, must wear suitable personal protectiveequipment.
Protective clothing protects the skin against mechanical
effects, e.g. cuts
Safety boots protect the feet against falling objects and the
entry of protruding nails
Safety gloves protect the hands against mechanical effects,
e.g. cuts
Marked on tool: Safety goggles: protects the eyes against
flying objects, such as splinters and dust
Marked on tool: Ear protection: protects the ears against
excessive noise
Marked on tool: Wear a dustrespirator.
Young children and the infirm. This machine is not
intended for use by young children or infirm persons
withoutsupervision.
Warning Signs and Labels
The device may only be used if all safety labels on the Mitre Saw are both
complete andlegible.
The safety alert symbol is used to alert you
to potential physical injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury ordeath.
Read the manual before using thedevice.
Risk of electrical hazard
Examples of cable damages
Do not connect the power cable with the
powersupply.
Danger of cuts
Keep your hand at least 100 mm from either side
of the saw blade
This product must not be disposed of with
normal household waste
Keep away from children

DeWalt DWS774 Specifications

General

Input power	1400 W
Output power	1100 W
Power source	AC
Blade bore	30 mm
Blade diameter	216 mm
Idle speed (max)	4500 RPM
Sound power level	104 dB
Cutting depth (90º)	70 mm
Sound pressure level	93 dB
Sound level uncertainty	3 dB
Cross cut capacity (0° x 0°)	250 x 62 mm
Bevel cut capacity (0° x 45°)	173 x 62 mm
Miter cut capacity (45° x 0°)	177 x 62 mm
Compound cut capacity (45° x 45°)	190 x 48 mm
Saw blade included	Yes
Diamond disc	-
Uncertainty K	1.5 m/s²
Vibration emission	2.1 m/s²

Weight and Dimensions

Depth	550 mm
Width	490 mm
Height	590 mm
Weight	12000 g
