wise) on bottom of tank.
WARNING: Risk of bursting. Water will condense in the air tank.
If not drained, water will corrode and weaken the air tank causing a
risk of air tank rupture.
NOTICE: Risk of property damage. Drain water from air tank may
contain oil and rust which can cause stains.
4. After the water has been drained, close the drain valve (clock-
wise). The air compressor can now be stored.
NOTE: If drain valve is plugged, release all air pressure. The valve
can then be removed, cleaned, then reinstalled.
Compressor Pump Oil (Fig. 4)
NOTICE: Risk of property damage. Use air compressor oil only.
Multi-weight automotive engine oils like 10W30 should not be used
in air compressors. They leave carbon deposits on critical compo-
nents, thus reducing performance and compressor life.
NOTE: Use synthetic blend, non-detergent air compressor oil.
NOTE: Crankcase oil capacity is approximately 16 fluid ounces
(473,2 ml).
Checking
1. The oil level should be to the middle of the sight glass (K).
2. If needed remove oil fill plug (G) and slowly add oil until it
reaches the middle of the sight glass.
Changing
WARNING: Drain tank to release air pressure before removing
the oil ll cap or oil drain plug.
1. Remove the oil fill plug (G).
2. Remove the oil drain plug (H) and drain oil into a suitable con-
tainer.
3. Replace the oil drain plug (H) and tighten securely
4. Slowly add compressor oil until it reaches the middle of the
sight glass (K). NOTE: When filling the crankcase, the oil
flows very slowly into the pump. If the oil is added too quickly,
it will overflow and appear to be full.
CAUTION: Overlling with oil will cause premature compressor
failure. Do not overll.
5. Replace oil fill plug (G) and tighten securely.

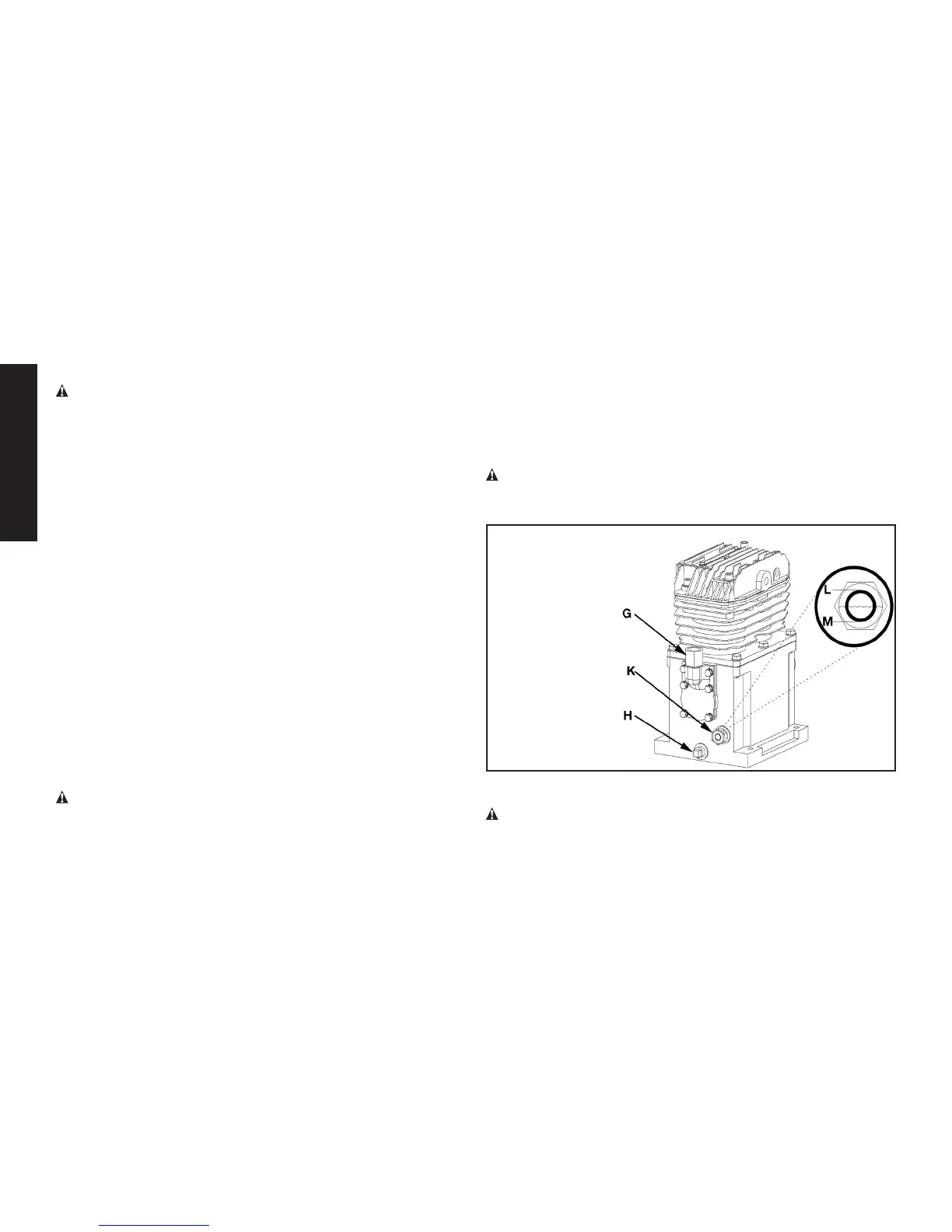

L = Full
M = Add
H = Oil drain plug
K = Oil level sight glass
G = Oil fill plug
Fig. 4
Belt Replacement
WARNING: This unit starts automatically. ALWAYS shut off the
main power disconnect, and bleed all pressure from the system
before servicing the compressor, and when the compressor is
not in use. Do not use the unit with the shrouds or belt guard
