DeWalt XR DCMPW1600 User Manual

12
ENGLISH
Cage Carrying Handles (Fig.C)
This pressure washer has a protective cage that protects the
pressure washer from daily jobsite wear and tear but also provides
mulitiple carry handle14 options. Carry the pressure washer using
whichever part of the cage that is convenient for yourapplication.
DO NOT attempt to carry the pressure washer by the hose storage
brace
32 or telescoping handle12.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.

WARNING: Use only DeWALT batteries andchargers.
16
Feet
17
Garden hose water intake
18
High pressure water outlet
19
Boost button
20
Battery port door
21
Battery door latch
22
Turbo nozzle
23
Adjustable spray nozzle
24
Water inlet filter
25
Quick connect hose adapter
26
High pressure foamcannon
27
Nozzle cleaning tool
28
Self priming suction hose
29
Float ball
30
Suction hose filter
31
Suction hose collar
32
Hose storage brace
33
Hose storage latch
34
Hose storage strap
Intended Use
This pressure washer is intended for cleaning boats, cars,
decks, driveways, grills, house siding, motorcycles, patios, and
outdoorfurniture.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
High pressure hose
2
Spray wand
3
Nozzle button
4
Spray handle
5
Handle grip
6
Trigger lock-off
7
Trigger
8
Pressure washer unit
9
Speed selector switch
10
Storage door
11
Door latch
12
Telescoping handle
13
Handle release button
14
Cage
15
Transport wheels
Date Code Position (Fig.B)
The production date code
37
consists of a 4-digit year followed
by a 2-digit week and is extended by a 2-digit factorycode.

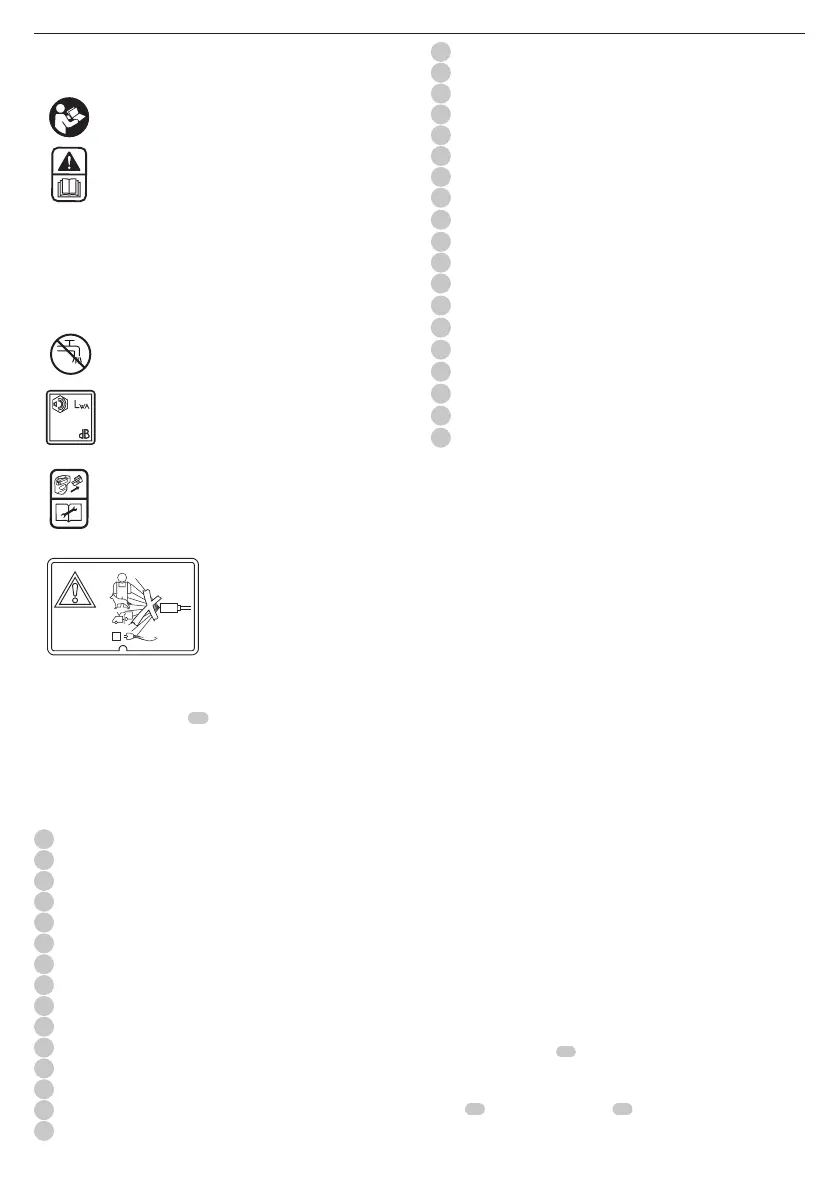

Markings on Tool
The following pictograms are shown on the tool:
Warning! To reduce the risk of injury, the user
must read the instructionmanual.
f
Wear eyeprotection.
g
Wear earprotection.
Machine not suitable for connection to the
potable watermains.
97
Directive 2000/14/EC guaranteed soundpower.
DCMPW1600
Always remove the battery from the appliance
before performing any cleaning or maintenance.
Never direct the water jet at
people, animals, the machine
or electriccomponents
