9

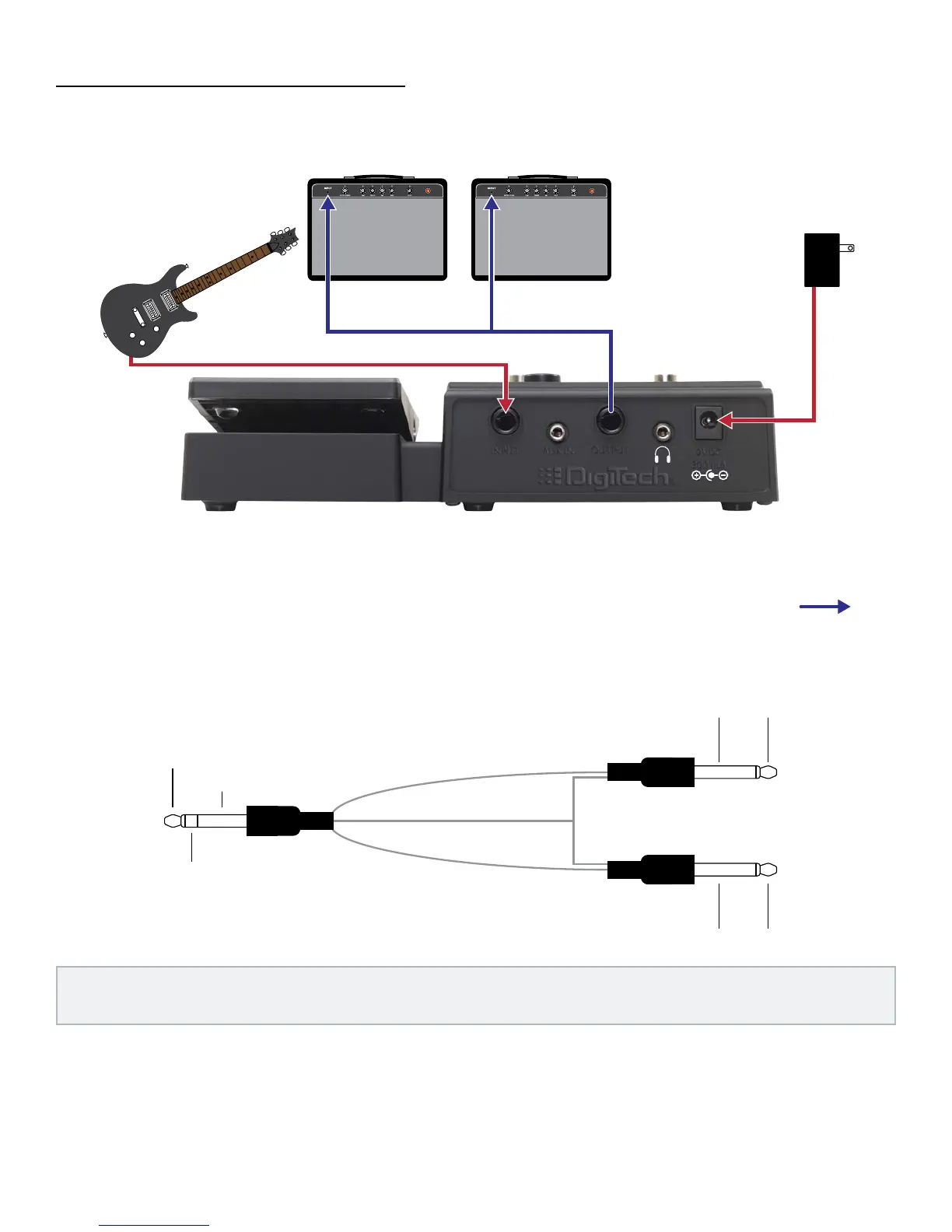

Stereo Amp Conguration
Amp 2Amp 1
Guitar
Harman PS0913DC
Power Supply
1/4” Stereo Y Cable
INPUT AUX IN
OUTPUT
9VDC
300 mA
1/4” Stereo Y Cable
1/4” Stereo Y Cable
Left (+)
Right (+)
Ground (-)
Ground (-)
Left (+)
Right (+)
Left
Channel
Right
Channel
Ground (-)
Left (+)
Right (+)
Ground (-)
NOTE: The 1/4" Output must be configured for stereo operation for this type of setup. See "Mono/
Stereo Operation" on page 21 for more information.
