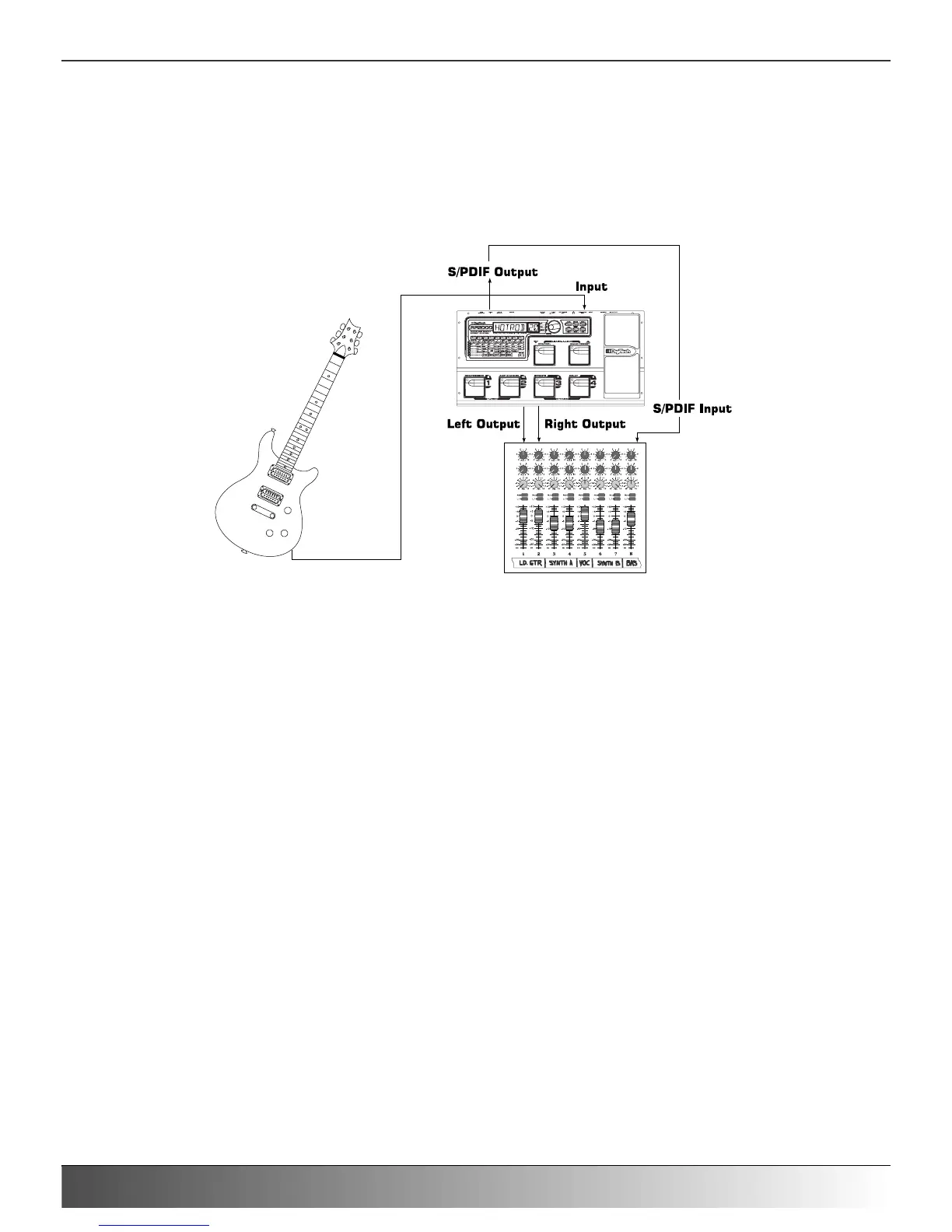

Direct to a Mixing Console
The RP2000 can be connected directly to the inputs of a house PA system, or to a recording console. Connect the
guitar to the input of the RP2000. Connect from the outputs of the RP2000 to the channel inputs of the mixing
console. If the RP2000 is to be used in Stereo mode, set the pan controls of the mixer hard left and right, and select
stereo as the output mode in the RP2000’s Utility menu. See page 30 for more information on the output mode. Be
sure to engage the RP2000’s Cabinet Emulator when connecting direct to a mixer. See page 31 for more on selecting
the Cabinet Emulator.
S/PDIF Digital Output
The RP2000 includes a digital S/PDIF output enabling you to eliminate multiple A/D and D/A conversions when record-
ing digitally. Simply connect from the S/PDIF output of the RP2000 to the S/PDIF input on your digital mixer or
recorder.You must have S/PDIF inputs on the receiving device in order to use this output.You may use the analog and
digital outputs of the RP2000 simultaneously. Be sure to use a 75 ohm or RCA video cable to connect from the Digital
Output to a recording device.
ATTENTION: Do not connect the S/PDIF output to analog auxiliary, CD, phono, or tape inputs on con-
sumer electronic devices. It is not compatible with these inputs.
Applying Power
Once the audio connections have been made, turn the Output Level all the way down (counterclockwise). Connect the
PS0920 to the power jack on the back of the RP2000 and the other end to an AC outlet. Turn the power to your
amplifier(s) on. Set the amp(s) to a clean tone and set the tone controls to a flat EQ response (on most amps, this
would be 0 or 5 on the tone controls).Turn the Output Level of the RP2000 up to achieve the desired volume level.
