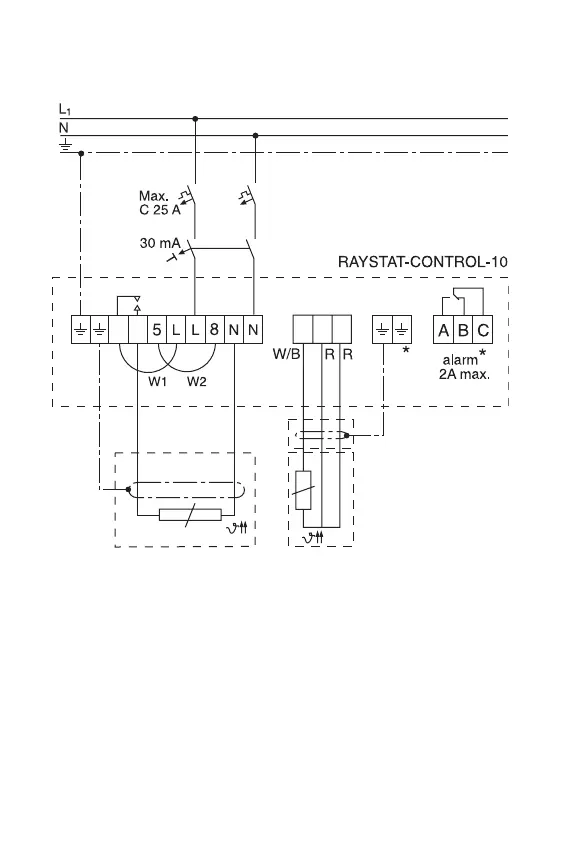

A. Wiring Diagrams
Anschlussdiagramm
Schémas électriques
Heating cable
Heizband
Ruban chauffant
Temp. Pt 100 sensor
Temp. Sensor Pt 100
Sonde de température
* Optional
* Optional
* Option
R: Same colour
R: die gleiche Farbe
R: la même couleur
Ray C F030793 RAYSTAT-Contr-N 18-09-2003, 10:1437
