Ditch Witch 1820 User Manual

48 1820 - DRILLING ATTACHMENT
DRILL
48 1820 - DRILLING ATTACHMENT
DRILL

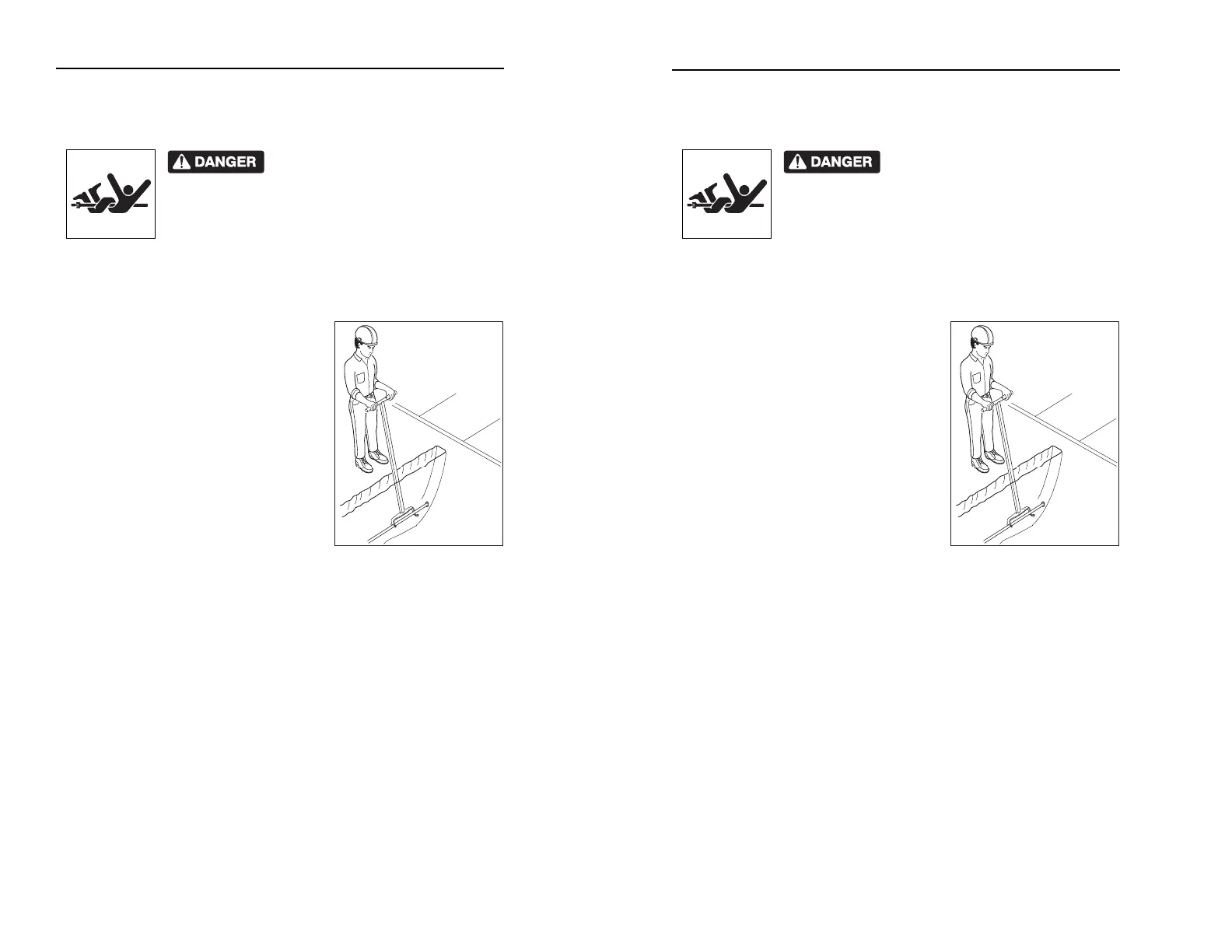

Using Drill String Guide
Use drill string guide to align drill
string as it enters the soil. When
using drill string guide, follow these
guidelines:
• Use only approved
Ditch Witch drill string guide (p/n
179-737).
• Stand only on the left side of the
approach trench.
• Keep drill string guide at least 3’
(1 m) behind bit.
• Use drill string guide to control
only the first 5’ (1.5 m) of the bore path.
• After drilling 5’ (1.5 m), stop unit and remove drill string guide.
• Do not use drill string guide during backreaming or any time
the drill string is being pulled back.
Turning shaft will kill you or
crush arm or leg. Stay away.
NOTICE: Keep everybody at least 10’ (3 m) away from drill rod
during operation. Do not straddle trench or drill rod while drilling.
om0342c.eps
Using Drill String Guide
Use drill string guide to align drill
string as it enters the soil. When
using drill string guide, follow these
guidelines:
• Use only approved
Ditch Witch drill string guide (p/n
179-737).
• Stand only on the left side of the
approach trench.
• Keep drill string guide at least 3’
(1 m) behind bit.
• Use drill string guide to control
only the first 5’ (1.5 m) of the bore path.
• After drilling 5’ (1.5 m), stop unit and remove drill string guide.
• Do not use drill string guide during backreaming or any time
the drill string is being pulled back.
Turning shaft will kill you or
crush arm or leg. Stay away.
NOTICE: Keep everybody at least 10’ (3 m) away from drill rod
during operation. Do not straddle trench or drill rod while drilling.
om0342c.eps

Ditch Witch 1820 Specifications

General

Engine Power	18 hp
Fuel Type	Diesel
Horsepower	18 hp
Transmission	Hydrostatic
Drive System	4-wheel drive
