Locate - 28 830R/T Operator’s Manual
Active Location
CMW
Active Location
Setup
Follow setup procedures for the type of locating you will be doing: direct connection, inductive clamp, or
induction (broadcast). For all types of active location that require leads, connect leads at connector. Keep
connector covered when not in use.

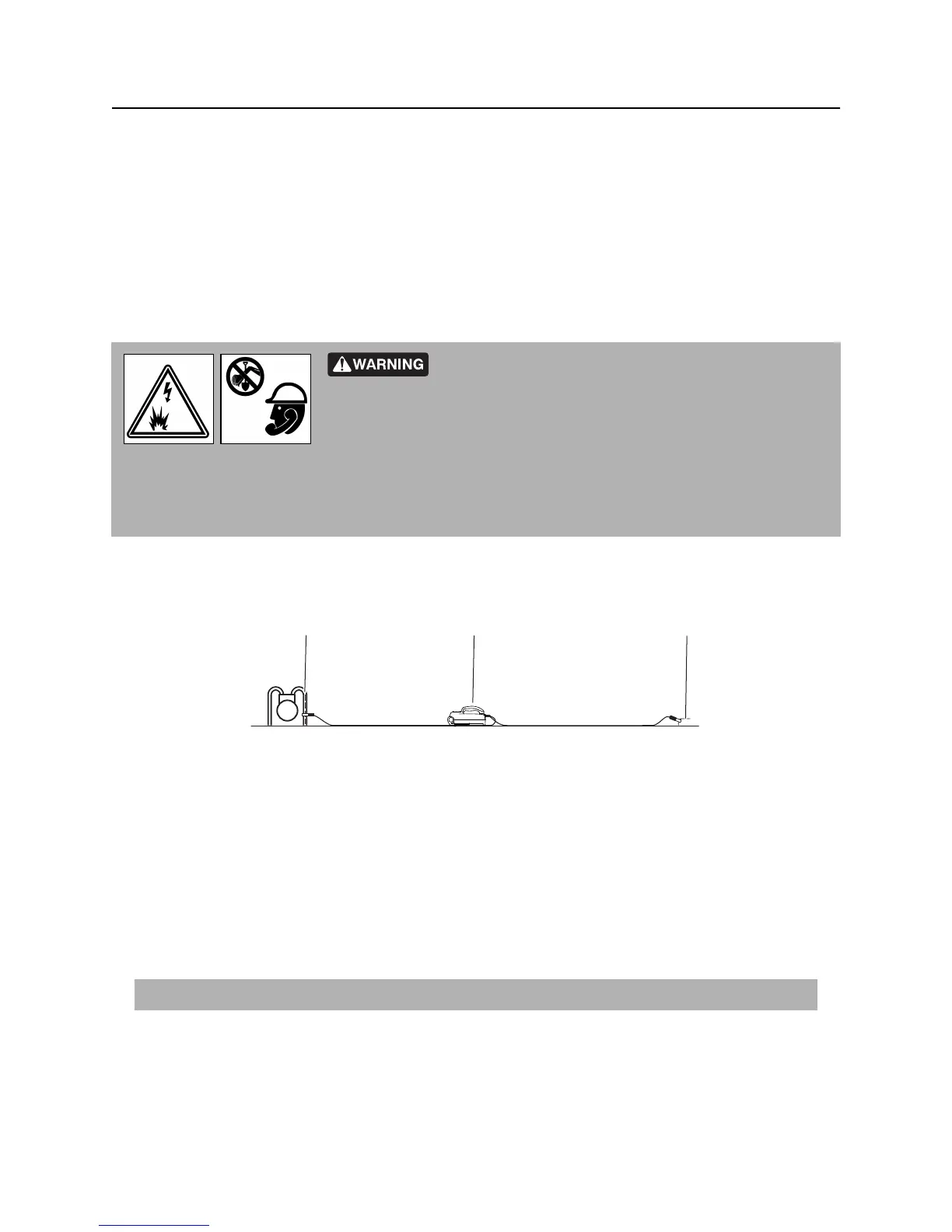

Direct Connection
To set up transmitter for direct connection:
1. Carefully push ground stake (3) into ground.
2. Plug cable into transmitter (2).
3. Connect black lead to ground stake.
4. Connect red lead to cable (1).
5. Turn on transmitter and check battery level.
6. Select power level.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Electric shock or equipment damage can result if transmitter is connected to live cable.
Contact qualified utility personnel and follow all standards and requirements for disconnecting and
grounding cables.
NOTICE: Turn off transmitter when connecting or moving ground stake.
e16om008t.eps
12 3
