Locating Concepts - 38 830R/T Operator’s Manual
Mode
CMW
Transmitter

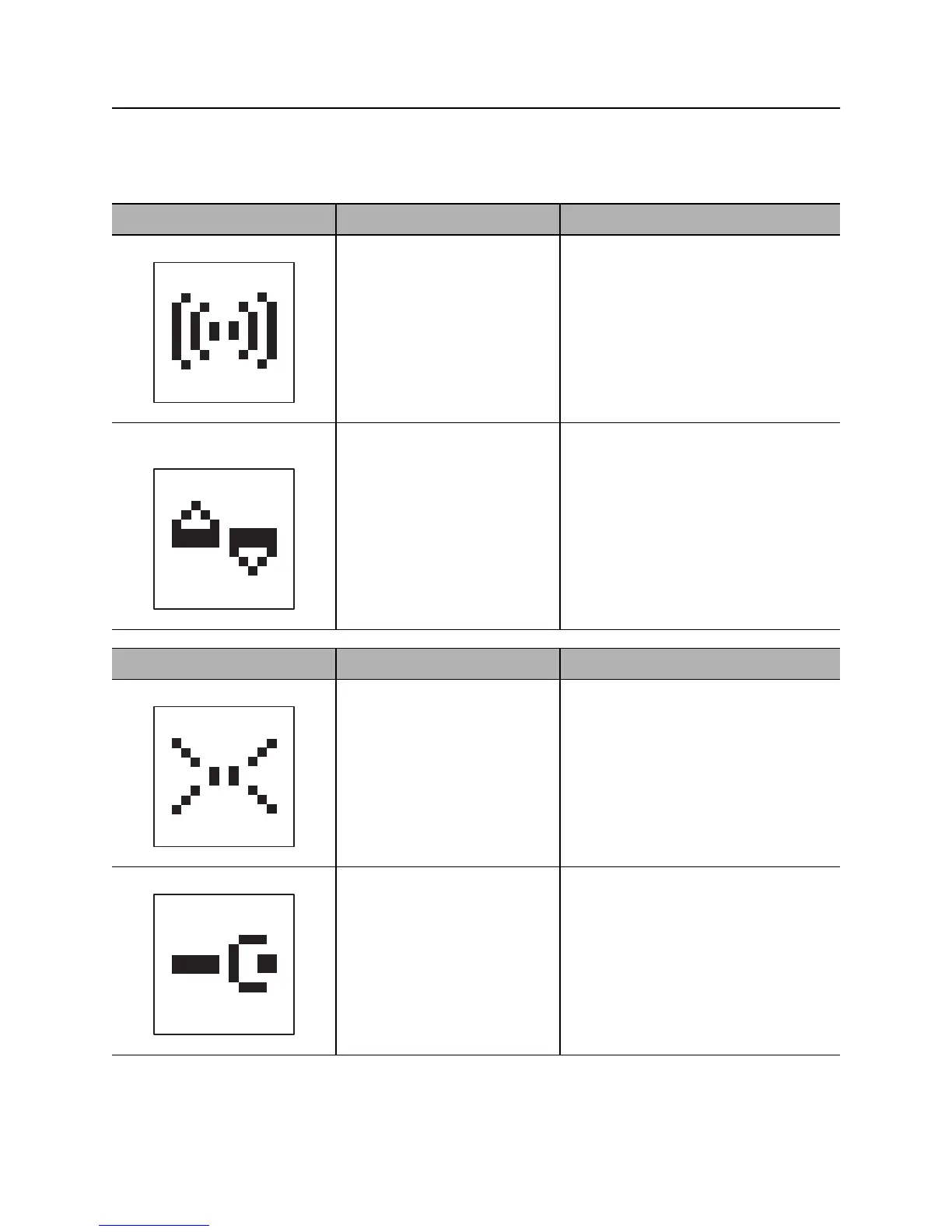

The 830T receiver has two operating modes and two troubleshooting indicators.
Operating Mode Description Notes
Induction (broadcast) Signal is broadcast onto
target line using antenna.
Direct Connect or Inductive
Clamp
Signal is placed on target line
through direct connect leads
or inductive clamps.
Indicates a closed circuit with
good current flowing in the
line.
Troubleshooting Indicators Description Notes
Inductive (broadcast) Indicates broadcast antenna
is out of regulation.
This can be caused by placing the
transmitter too near a large metal
object, very low battery level, or a
damaged antenna.
Direct Connect Indicates an open circuit.
Indicates little to no current is
flowing in target line.
c00ic102t.eps
c00ic103t.eps
c00ic111t.eps
c00ic104t.eps
