A&E
Patio Awnings
DIAGNOSTIC SERVICE MANUAL
AWNING RAIL
4.1 LEAKAGE
When water drips down the side of the coach, the seal
between the coach and the awning rail must be
checked. If improper seal is detected, reseal the
awning rail.
4.2 STRAIGHT
Before condemning the fabric for sags or wrinkles, the
awning rail should be checked. Open the awning and
sight down the rail to see if the rail or sidewall varies up,
down, inward or outward. This must be taken into
consideration when checking a fabric.

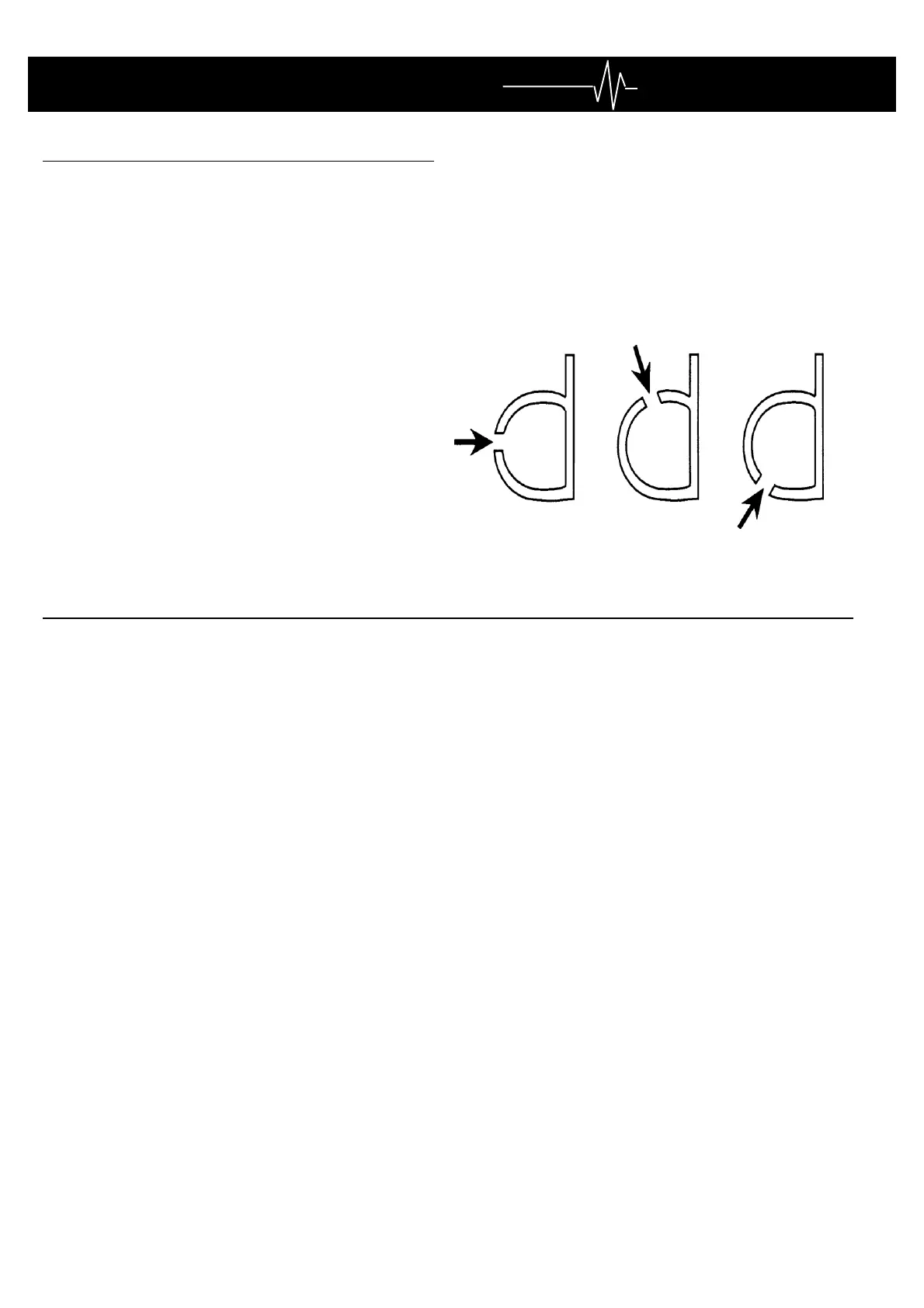

4.3 TYPE
There are three types of awning rail used in the RV
industry. Of these, type A and B (see below) are
acceptable for use on the 9000 Series awning that
utilizes a hinge slat (see Sec.2.5) . Type C should never
be used on the 9000 Series that utilizes a hinge slat
(see Sec. 2.5) as it could cause a binding problem on
the aluminum guard assembly, but it is acceptable on
the vinyl awnings.
OPENING
OUTWARD
OPENING
UPWARD
OPENING
DOWNWARD
10
