6
Frame
DuctDuct
Frame
Frame
Roof Opening
Roof Opening
Roof
SIDE VIEW
(TOWARD BACK OF RV)
Duct
Ceiling
Duct
Insulation
TOP VIEW
(BACK OF RV)
FIG. 4
4. Return air openings must have 40 square inches
minimumfreeareaincludingthelter.
5. Returnairtotheunitmustbelteredtoprevent
dirt accumulation on unit cooling surface.
6. Air Distribution System Installation
a. Dometic Corporation recommends the basic
congurationshownin(FIG.5),forinstalling
this system. We have found by testing, that
thiscongurationworksbestinmostapplica-
tions. It is the responsibility of the installer to
revieweachRVoorplantodetermine the
following:
● Duct size
● Duct layout
● Register size
● Register location
● Thermostat location
● Indoor Temperature Sensor Location
These items must be determined in conjunc-
tion with the Air Distribution Duct System
Sizing & Design requirements. See "C. Table
- Air Distribution Duct Sizing & Design" on
page (4).
Alternatecongurationsandmethods
may be used which will allow the unit
to operate properly; however, these
alternate congurations and methods
MUST be approved by Dometic Cor-
poration in writing. The following in-
structions are based upon the use of
RAG Kits 3105007.XXX & 3105935.
XXX.
4. Maintain structural integrity. Oth-
erwise damage to product and/or RV could oc-
cur.
NEVER create a low spot on RV
roof. Otherwise, water will pool and could cause
a leak.

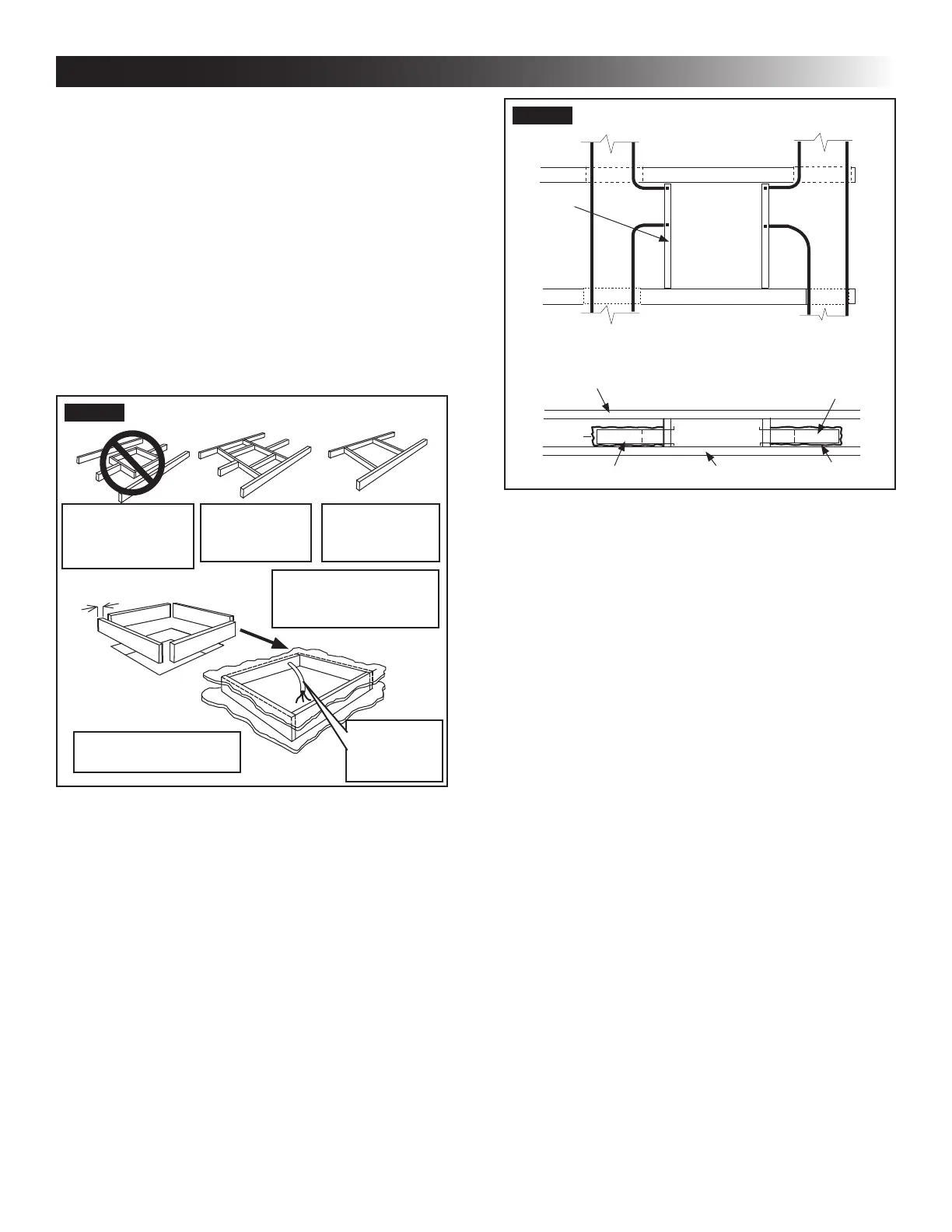

The opening created must be framed to provide
adequate support and prevent air from being
drawn from the roof cavity. Framingstock 3/4″
or more in thickness must be used. Remember
to provide an entrance hole for power supplies,
indoor temperature sensor (if applicable), ther-
mostat communication cable, and furnace wires
(if applicable) at the front of the opening. See
(FIG. 3).
3/4″ Min.
Do Not Cut Roof
Structure Or
Rafters
Good-Rafters
Supported By
Cross Beams
Good Location
Between Roof
Rafters
Frame Opening So It
Won't Collapse When
Bolting Down Unit
FIG. 3
15″ Min. At
Front Of
Opening
Leave Access For
Power Supply Wiring
C. Air Distribution Duct Sizing & Design
The installer of this system must design the air distribution
system for their particular application. Several requirements
must be met for the unit to operate properly. These require-
ments are as follows:
1. Make sure ductwork will NOT
bend or collapse during and after installation,
and that it is correctly insulated and sealed.
Otherwise, damage to roof structure and ceiling
could occur.
2. All discharge air ducts must be properly insu-
lated to prevent condensation from forming on
their surfaces or adjacent surfaces during op-
eration of unit. This insulation must be R-7 mini-
mum. See (FIG. 4).
3. Ducts and their joints must be sealed to prevent
condensation from forming on adjacent surfaces
during operation of the unit.
INSTALLATION INSTRUCTIONS
