3.0 Description of model
3.1 Model identification

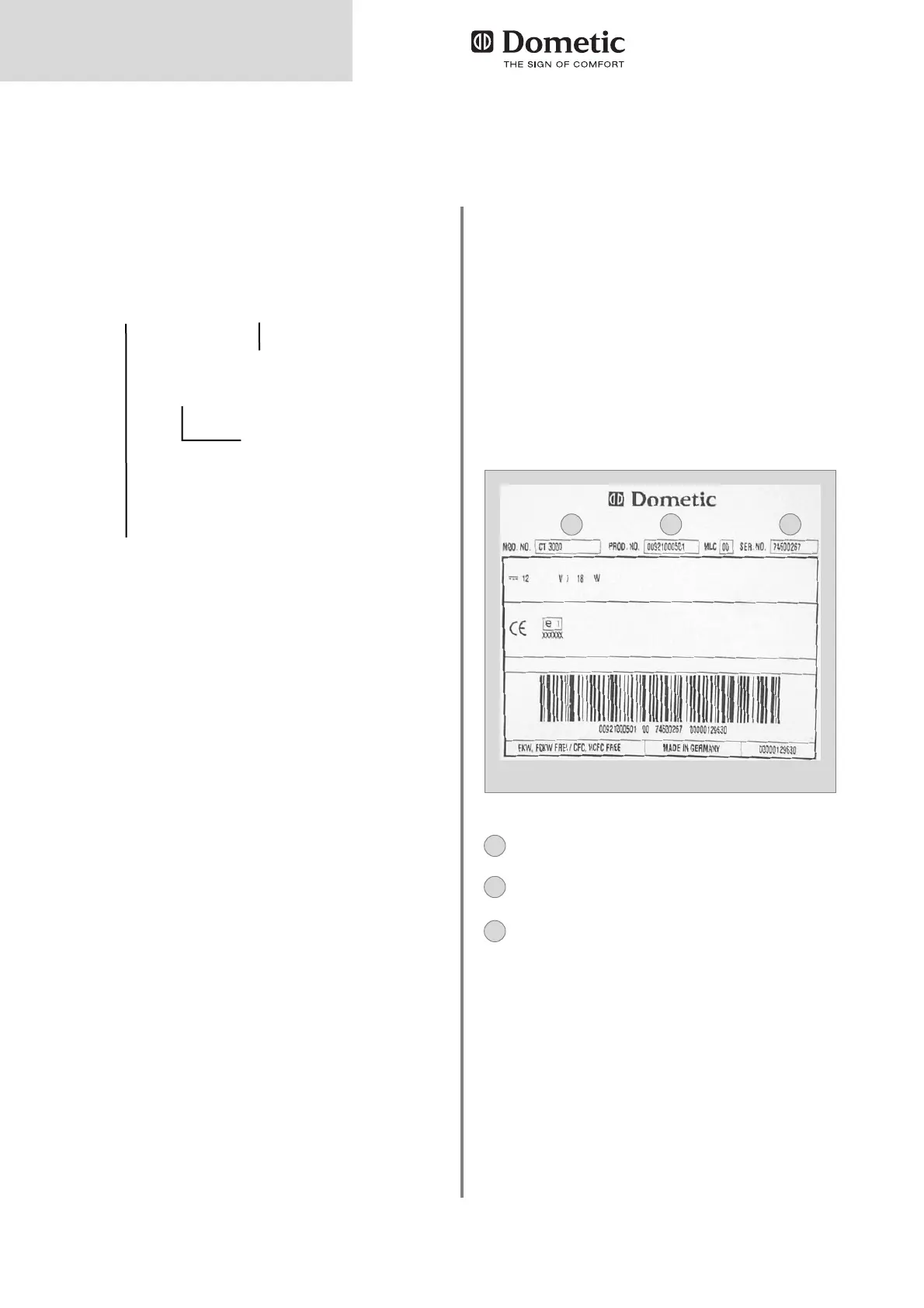

The identification label contains all important
details. You can read off from this the model
identification, the product number and the
serial number. You will need these details
whenever you contact the customer services
centre or when ordering spare parts. You will
find the identification label within the cassette
housing after removing the cassette.
3.2 Toilet identification label
Supply voltage : 12 V DC
Current consumption : max. 2 A with internal
water pump, max. 5 A with external pump.
Dimensions : s. details in installation manual
Operating temperature : 0°C up to + 50°C
3.3 Technical data
Fig. 2
The CT 3xxx cassette toilet consists of a toilet
which is installed fixed in the vehicle and a
removable, mobile cassette as a faeces tank.
The cassette can be accessed from the outsi-
de through a door. Depending on the model,
the toilet receives the flush water from a tank
integrated in the model or from a fresh water
tank installed in the vehicle.
Four different models are available:
CT 3xxx , free-standing, without water
tank, without tank case
CTS 3xxx , free-standing, without water
tank, with tank case
CTW 3xxx , free-standing, with water tank
in tank case
CTLP 3xxx , free-standing, without water
tank, with low profile tank case
Description of model
1
2 3
Model number
Product number
Serial number
2
1
3
CT
3 x x x
(S)
(W)
(LP)
Cassette Toilet
Model range
S = free-standing without
flush water tank,with
console
W = free-standing with
integrated flush
water tank
LP = Low Profile, low con-
sole
Example :
