Dometic DM2672 Service Manual

13
EN
Americana and New Generation Refrigerators General Information
o
f
d
g
u
i
h
j
2)
2!
;
r
k
a
s
l
w
e
t
y
w
q

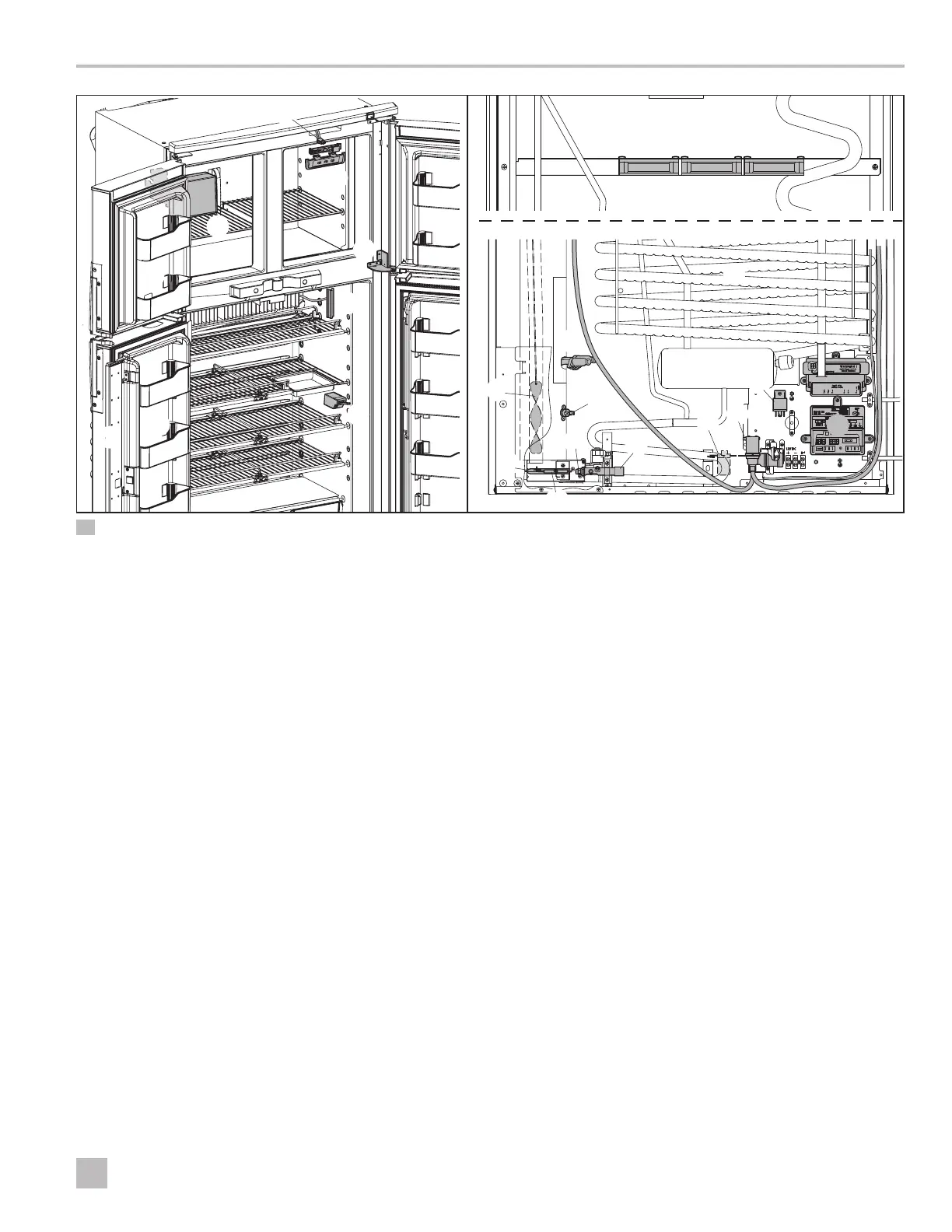

2 New Generation Model Component Locations
q
Door Flapper
u
Thermistor
f
Water Valve
;
Flue Baffle
w
Doors
i
Interior Light
g
Thermal Fuse
2)
Burner Assembly
e
Ice Maker
o
Ventilator Fan/Switch
h
Gas Valve
2!
Electrode
r
Communication Wire Harness
a
Cooling Unit
j
Orifice
t
Upper Control Module
s
Lower Control Module
k
Thermofuse
y
Door Hinge
d
Relay
l
Heating Element

Dometic DM2672 Specifications

General

Model Number	DM2672
Refrigerant	Ammonia
Interior Light	Yes
Reversible Door	No
Total Capacity	6 cu. ft.
Power Source	LP Gas
Fuel Type	Propane
Type	2-Way RV Refrigerator
Door Type	Double Door
