17
200
7390
12VOLTS DC
12VOLTS
DC
N
L
115
VOLTS AC
THERMOS TAT
0
JUNCTION BLOCK
0
TERMINAL
BLOCK
@
GREEN
@
GREEN/YELLOW

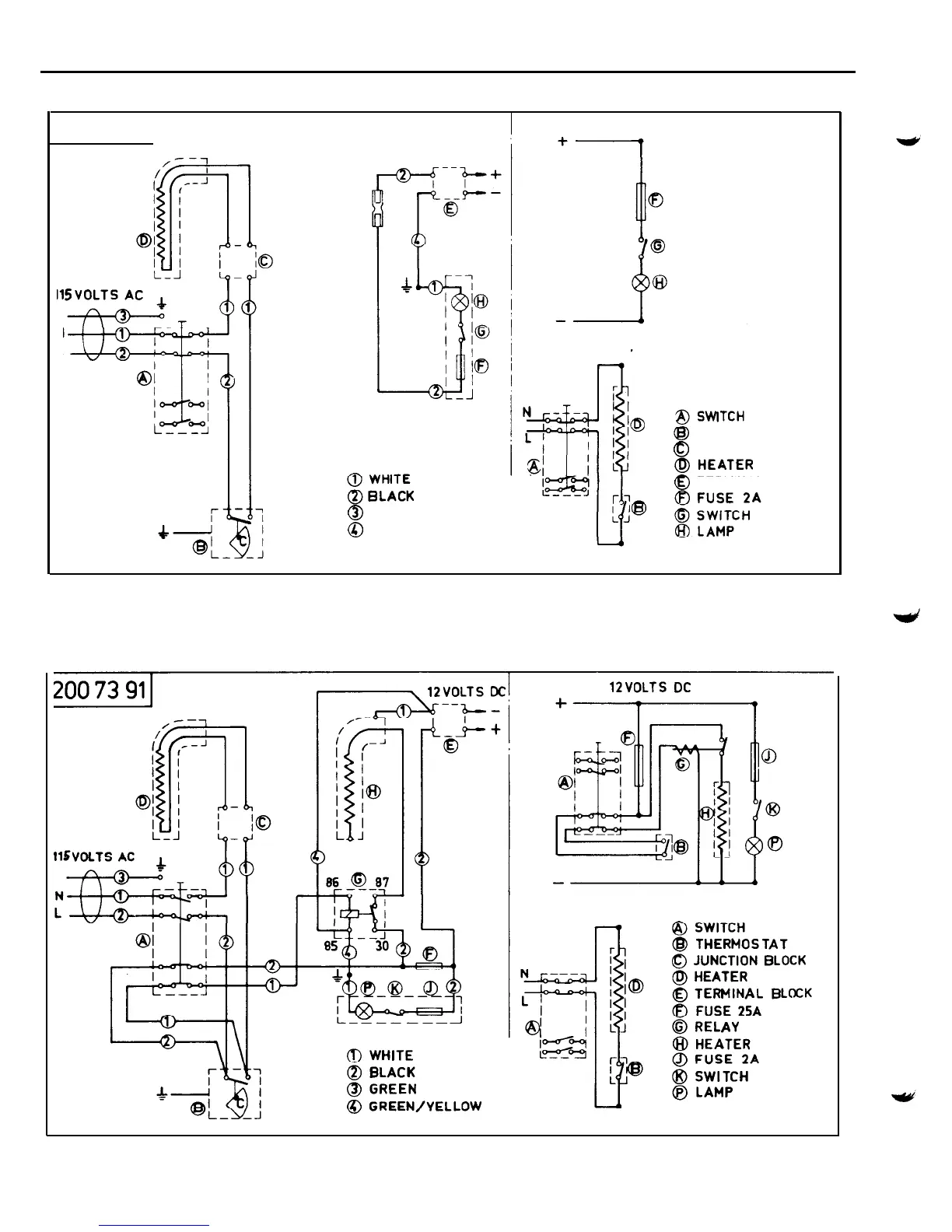

Fig.25
Wiring Diagram for Product No. 926 63 01
RM760
115VOLTS
AC
Fig.26
Wiring Diagram for Product No. 926 63 02
RM760
