Battery connection
N.B.
To start the generator it is necessary to use a 12VDC battery, with a minmum
capacity of 60Ah.

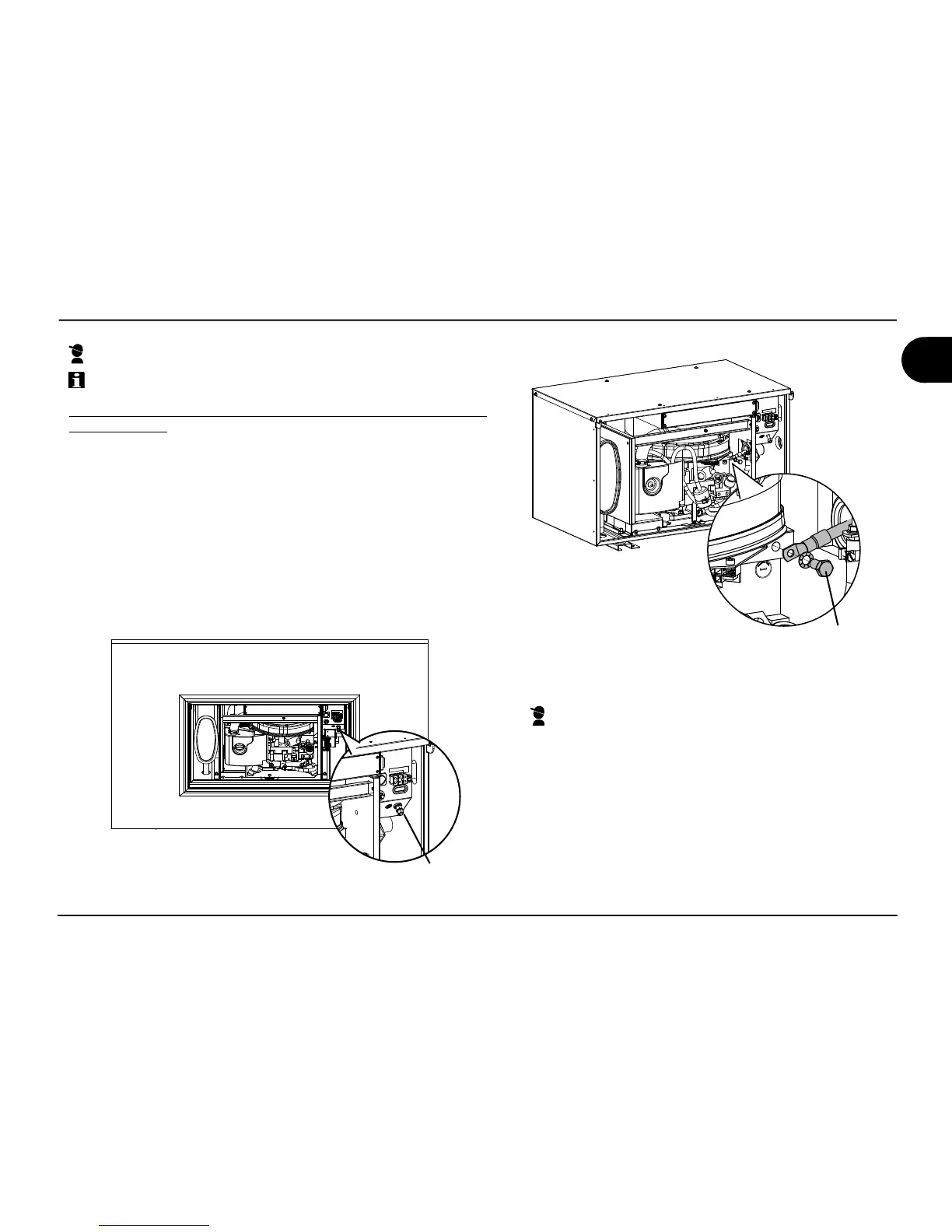

To start the generator, connect it to the positive pole of the vehicle’s battery
with a sheathed cable of a suitable cross-section as shown in the table. The
ground cable must have the same cross-section and be connected or as
shown in the figure to the side or from the inserts to the frame of the vehicle.
Make sure that the contact is good. If necessary remove paint or rust from
the surface of the frame and protect the connection with grease.
To protect the DC wiring use a 100 Amp fuse closed to the plus pole
of the battery.
External control panel connection
Choose the desired position inside the vehicle, use the extension
lead (supplied) to connect the external control panel to the internal
control panel of the generator.
(+) Plus
pole
(-) negative
pole
2 Installation instructions
