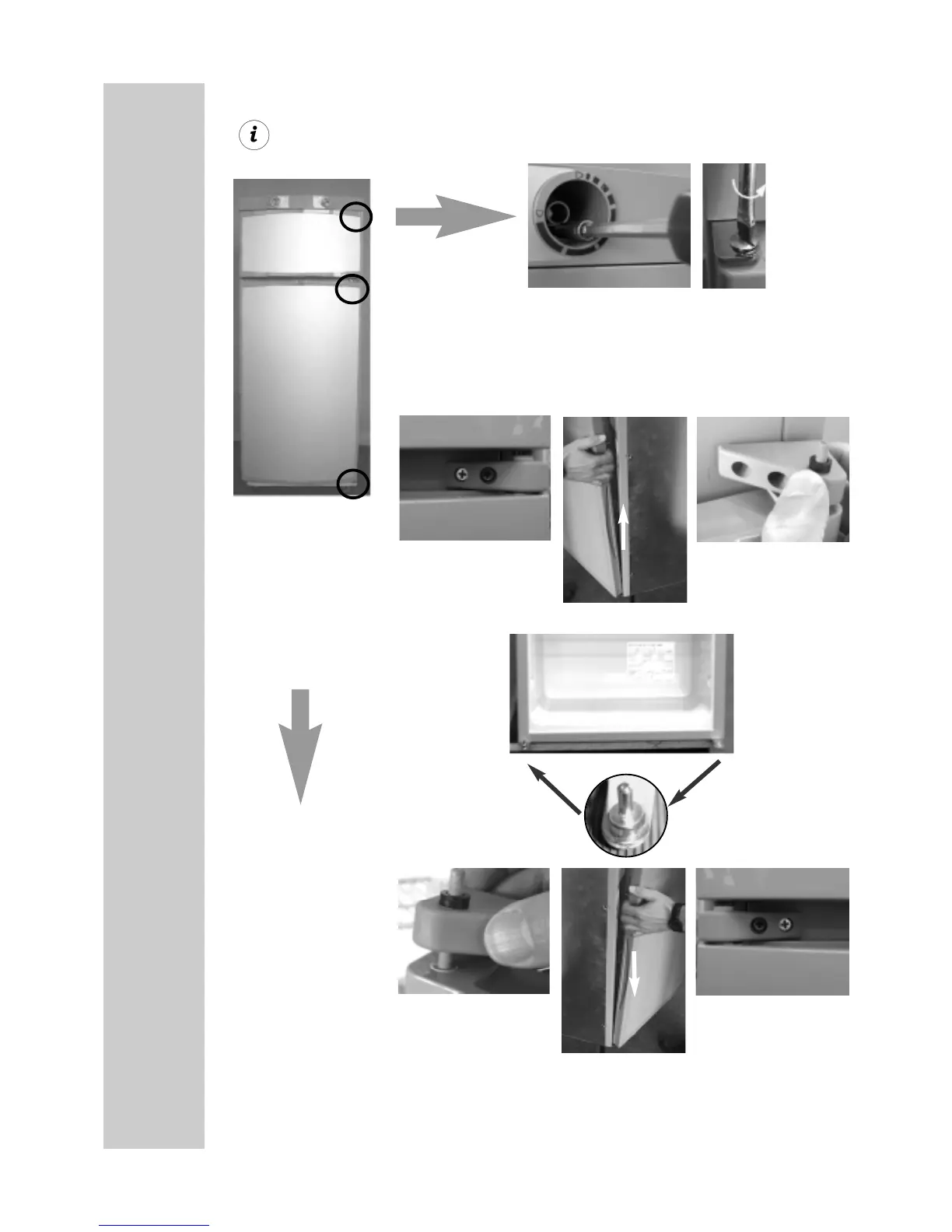

Changing the doorhang5.12
It is not always possible to change the door when the refrigerator is installed.
1. Remove rotary knobs and unscrew control
panel.
Open the freezer door, unscrew the hinge (A)
screw and keep it to hand.
2. Take off the door by moving it upwards.
3. Unscrew middle
hinge and remove
lower door.
4. Remove the middle
hinge.
7. Affix the middle
hinge.
6. Positon the hinge at the
opposite side of the door
and insert lower door.
8. Insert freezer compartment door and fasten the upper hinge pin.
9. Replace the control panel and the rotary knobs.
5. Place hinge pin on the
opposite side.
5.
A
