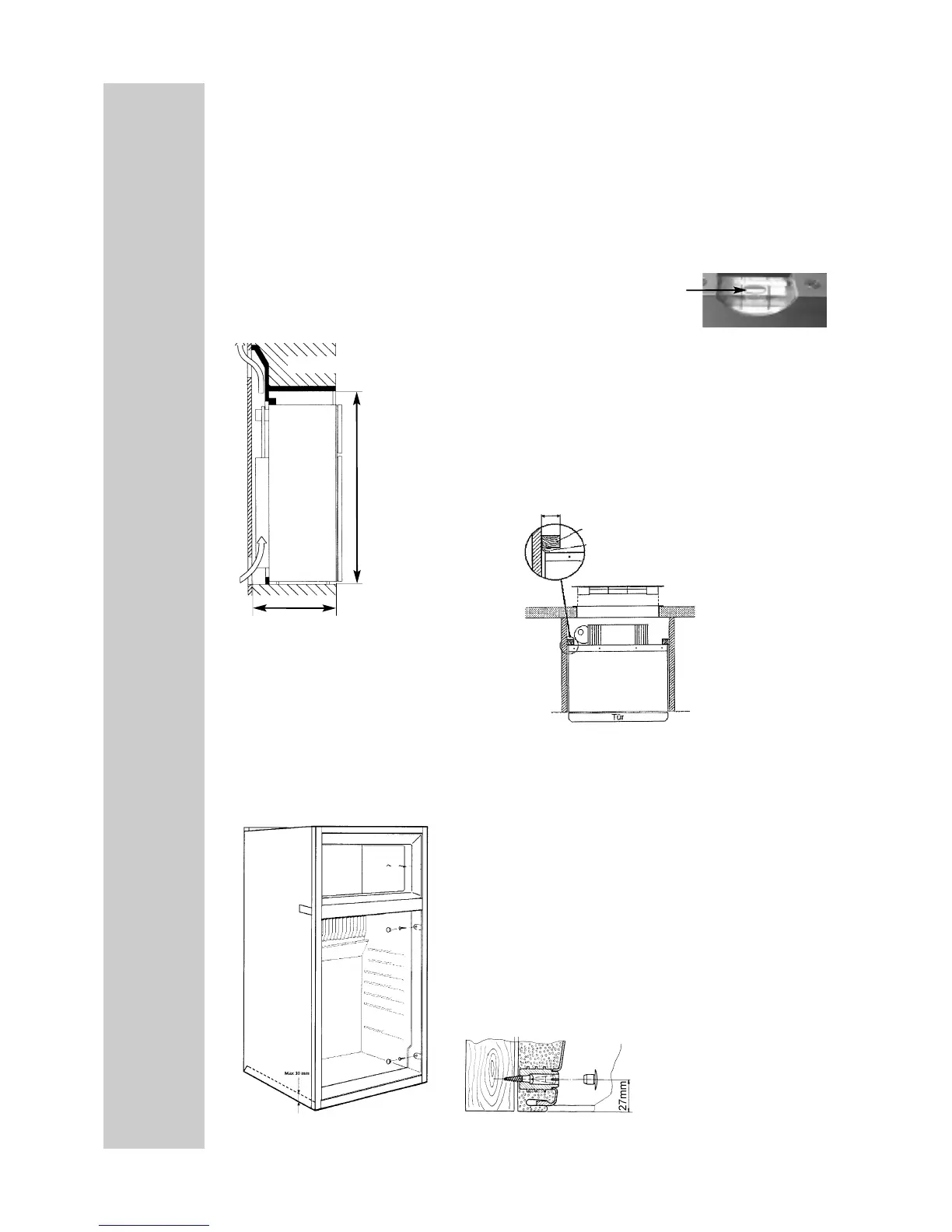

Installation recess
The refrigerator must be installed draught-free in a recess (see 6.2).
The measurements of the recess are given in the table below.
Push the appliance far enough into the recess until the front edge of the refrigerator
casing is flush with the front of the recess. Allow a gap of 10-20 mm between the back
wall of the recess and the refrigeration unit. The floor of the recess must be level, allo-
wing the appliance to be pushed easily into its correct position. The floor must be sub-
stantial enough to bear the weight of the appliance (no hollow space underneath).
Ensure that the refrigerator is installed level in the recess.
Recess measurements:
Securing the refrigerator
In the sidewalls of the refrigerator, there are four plastic
sleeves with screws for securing the refrigerator. The
sidewalls or rails attached for securing the refrigerator
must be designed in such a way that the screws will
remain firmly in place even when under increased load
(while the vehicle is moving).
Always insert screws through the sleeves provided;
otherwise, structural parts embedded in the foam,
such as cables, etc., may be damaged.
Once the refrigerator is in its final position, secure the
screws into the wall of the recess.
The screws must penetrate
through the sheet metal
casing of the refrigerator.
6.5
6.6
RM 7601 / RM 7605 1248 mm 530 mm 510 mm
RM 7651 / RM 7655 1248 mm 530 mm 510 mm
Model Hight H Width W Depth T
Width of recess = W
Stopper strips for example are affixed
in the installation bay, at the sides, at
the bottom and at the top and are fitted
with flexible sealant strips
Affix strip to side wall.
Seal i.e.V seal.
