dormakaba 8900 EMF Installation Instructions
08281000 03-20208900 EMF
6
Main arm
. Secure arm to slide shoe
Fig.
2.6.1 Secure arm to slide shoe. 2.6.2 Use 3/16” hex head wrench.

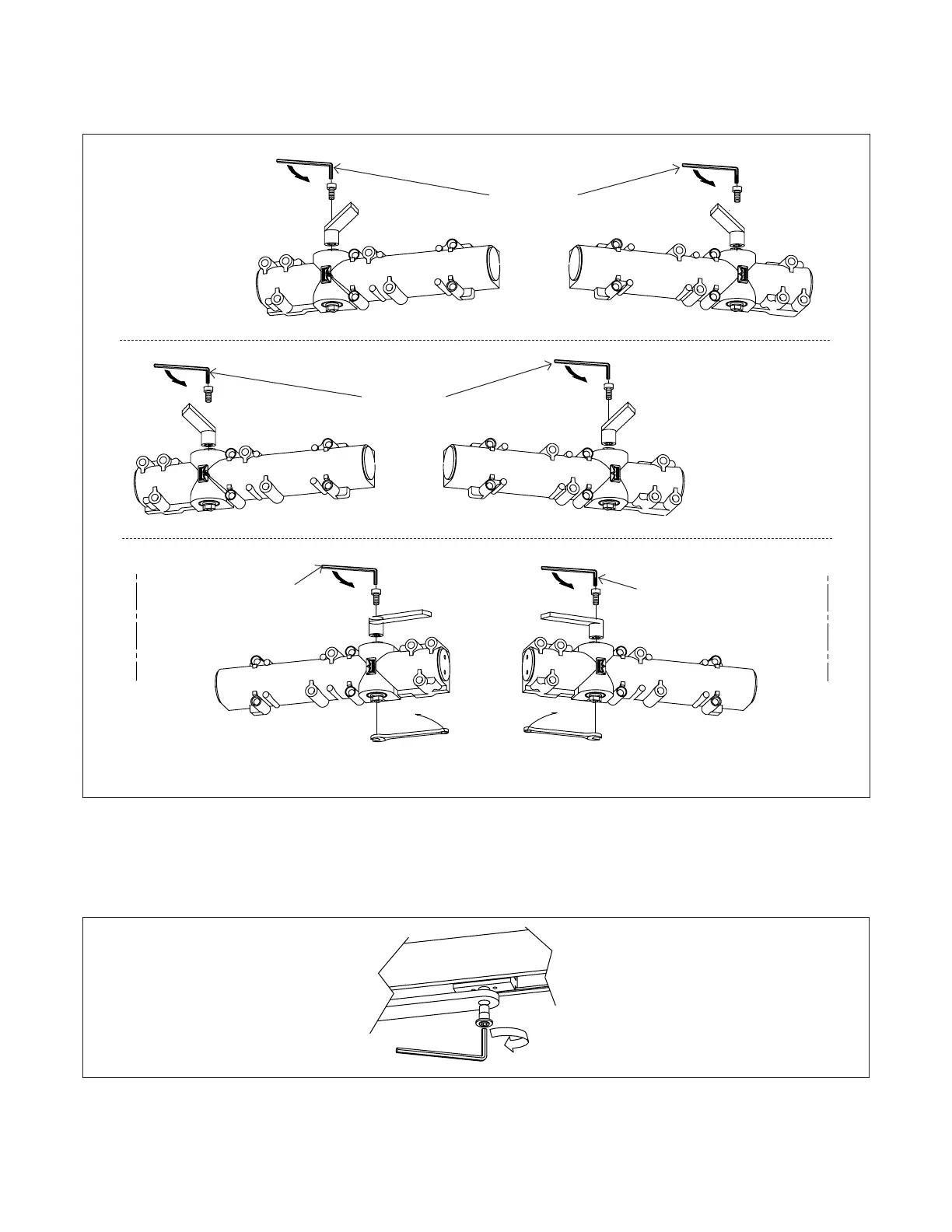

. Secure main arm
Fig.
2.5.1 With door in
closed position,
rotate spindle 45°
with wrench.
2.5.2 Place arm on
spindle parallel to
door.
2.5.3 Secure arm with
pinion screw and
washer.
6mm hex key
Left hand door
Right hand door
8900T
8900DE
8900PT
Hinge
C
L
Hinge
C
L
2.5.1 With door in
closed position,
rotate spindle
45° with wrench.
2.5.2 Place arm on
spindle parallel
to door.
2.5.3 Secure arm with
pinion screw and
washer.
2.5.1 With door in closed position, rotate
spindle 45° with wrench.
2.5.2 Place arm on spindle parallel to door.
2.5.3 Secure arm with pinion screw and washer.
Left hand doorRight hand door
Left hand door
Right hand door
6mm hex key
6mm hex key
6mm hex key
45° 45°
Rotate
pinion
Rotate
pinion
