Dreame D9 User Manual

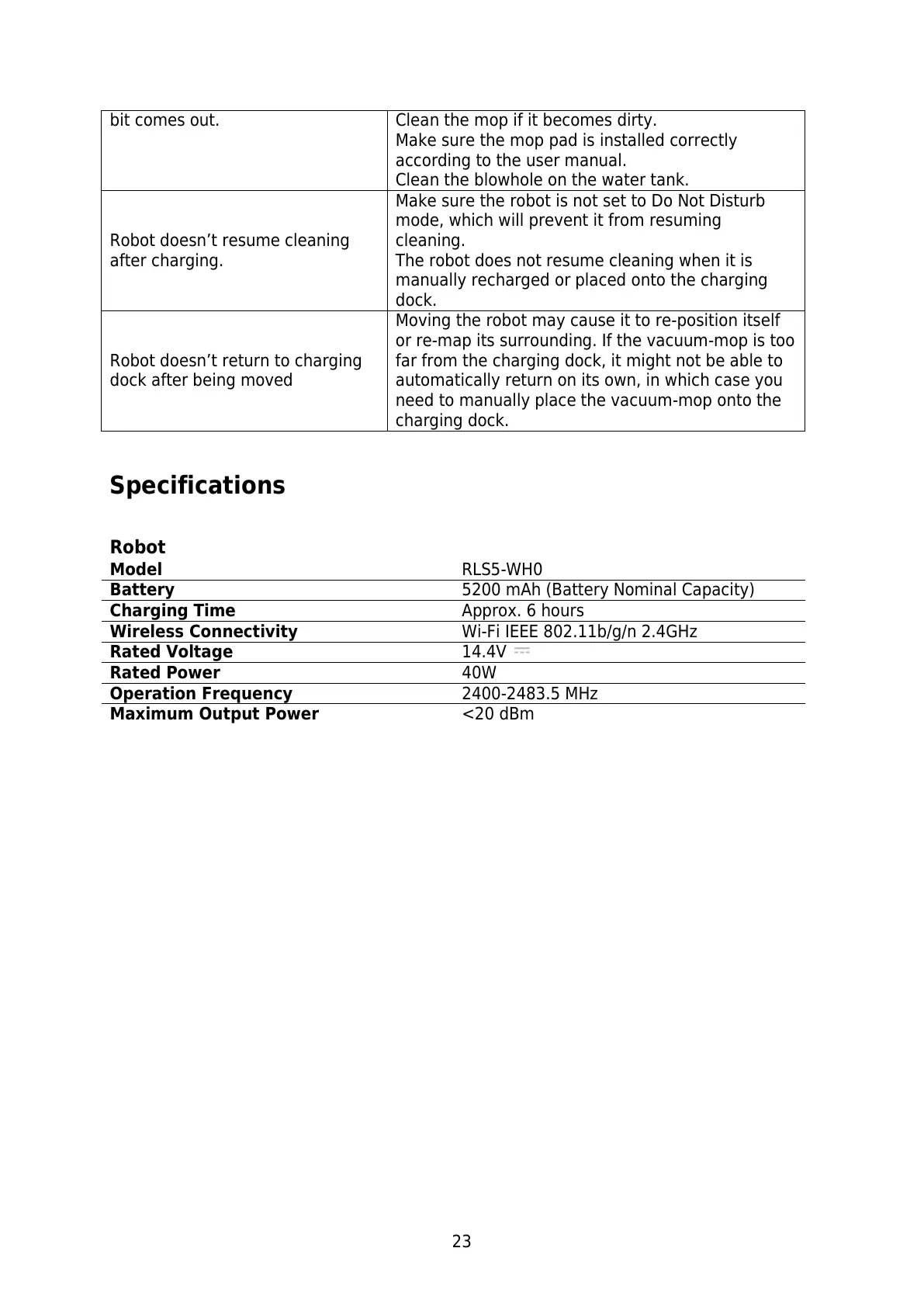

23
bit comes out.
Clean the mop if it becomes dirty.
Make sure the mop pad is installed correctly
according to the user manual.
Clean the blowhole on the water tank.
Robot doesn’t resume cleaning
after charging.
Make sure the robot is not set to Do Not Disturb
mode, which will prevent it from resuming
cleaning.
The robot does not resume cleaning when it is
manually recharged or placed onto the charging
dock.
Robot doesn’t return to charging
dock after being moved
Moving the robot may cause it to re-position itself
or re-map its surrounding. If the vacuum-mop is too
far from the charging dock, it might not be able to
automatically return on its own, in which case you
need to manually place the vacuum-mop onto the
charging dock.
Specifications
Robot
Model
RLS5-WH0
Battery
5200 mAh (Battery Nominal Capacity)
Charging Time
Approx. 6 hours
Wireless Connectivity
Wi-Fi IEEE 802.11b/g/n 2.4GHz
Rated Voltage
14.4V
Rated Power
40W
Operation Frequency
2400-2483.5 MHz
Maximum Output Power
<20 dBm

Dreame D9 Specifications

General

Wi-Fi	Yes
Efficiency	99.9 %
Noise level	- dB
Navigation type	Mapping
Integrated sensors	Laser
Number of programs	6
Water tank capacity	0.27 L
HEPA filtration system	No
Number of suction levels	4
Automatic base station return	-
Dust capacity (vacuum cleaner)	0.57 L
Mobile operating systems supported	Android, iOS
Suction power	3000 Pa
Battery capacity	5200 mAh
Shape	Round
Product color	White
Dust container type	Bagless
