Eaton 150 VCP-T16 User Manual

Instruction Book
Effective: November 2017 Page 19
IB131016EN For more information visit: www.Eaton.com
1. Integral Lifting Slots - 67A3137H01
2. Pole Unit Molding - 70D3250G11
3. 11 Gauge Grounded Steel Barrier
69C3254G01
4. Front Cover (Figure 3-10 for details)
69C3056G01
5. Trip Unit Location (Non-Automatic
Breaker Shown)
6. Secondary Disconnect Protective Hood
(Umbilical Cord not shown)
Harness 69C3261G01
7. Pole Unit Molding Removable Cover
70D3251H02
8. Vacuum Interrupter (Located Behind
Removable Back Covers)
Part of Pole Unit
9
. Cradle with Levering Mechanism
69C3305G11
10. Shoot Bolt Handle - Part of 69C3305G11
11. Shoot Bolt - Part of 69C3305G11
12. Push/Pull Handle - Part of 69C3305G11
13. Racking Screw Lock Plate - Part of
69C3305G11
14. Levering Drive Nut - Part of 69C3305G11
15. Integral Wheel - 67A3201H01 /
Pin - 67A3202H02
16. Shutter Operator - 69C3213H05
17. Primary Disconnect Finger Cluster -
502A852G02
18. Contact Wipe Measurement Area

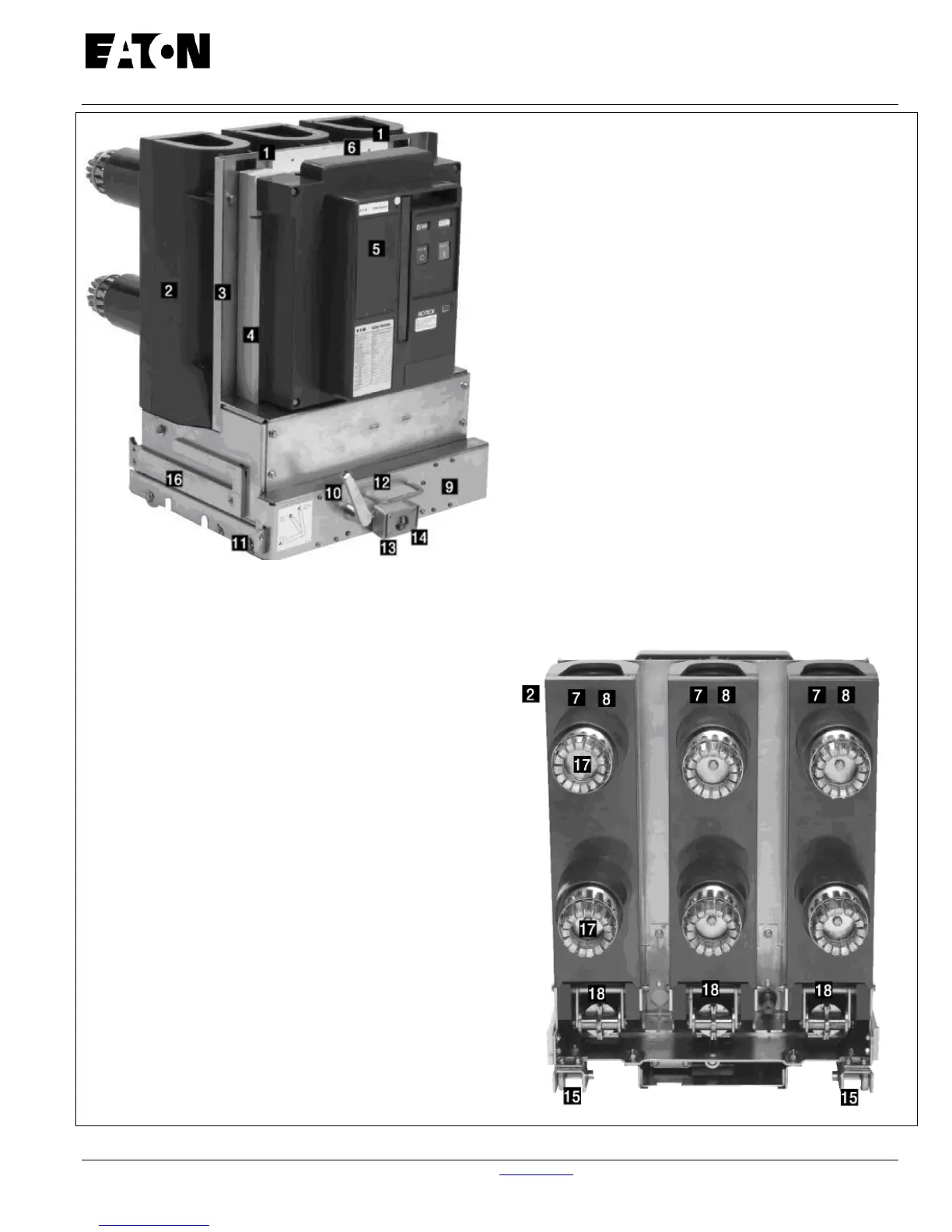

Figure 3-8 Front and Rear Views T-VAC Draw out (25kA, 2000A and all 31.5/40kA)
