Eaton 150 VCP-T16 User Manual

Instruction Book
Effective: November 2017 Page 21
IB131016EN For more information visit: www.Eaton.com

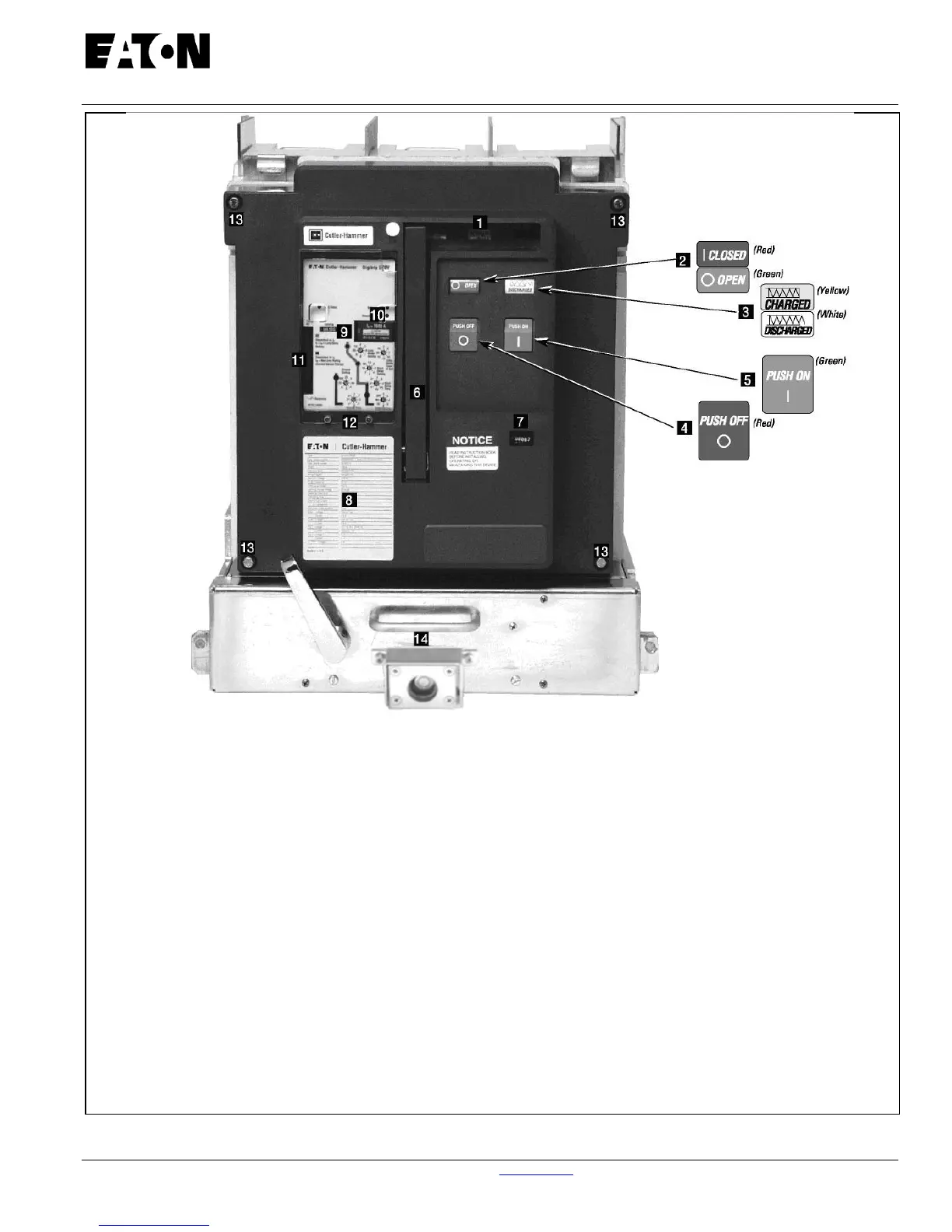

Figure 3-10 Typical
T-VAC Front Cover
1. Accessory Window (3) 12. Trip Unit Cover with Two Mounting
2. Contact Status (open-Close) - 2A10895G01 Screws (Screws Accept Customer
3. Spring Status (Charged-Discharged) - 2A10895G01 Supplied Lead Security Seals)
4. Manual “OFF” Button - 2A10895G01 WTU - 2C12190G01 / 2C12190G02
5. Manual “ON” Button - 2A10895G01 W/O - 2C12812H06
6. Manual Charging Handle - 2C12297G01 13. Front Cover Mounting Hardware
7. Operations Counter - 592C040H01 SPG Washer - 70550AC10R
8. Nameplate Flat Washer - 70540AK10R
9. Trip Unit (Optional) - 67A3153XXX / 67A3154XXX Bolt - 70045BB0BG
10. Rating Plug - 5720B93XXX O-Ring - 71070CA009
11. Trip Unit Test Port 14. Drawout Cradle (Drawout Circuit
Breaker Only) - 69C3305G01 (25kA)
69C3305G11 (40kA)
