Series 26 - Model 26000 Multiple Gear Pump
Disassembly

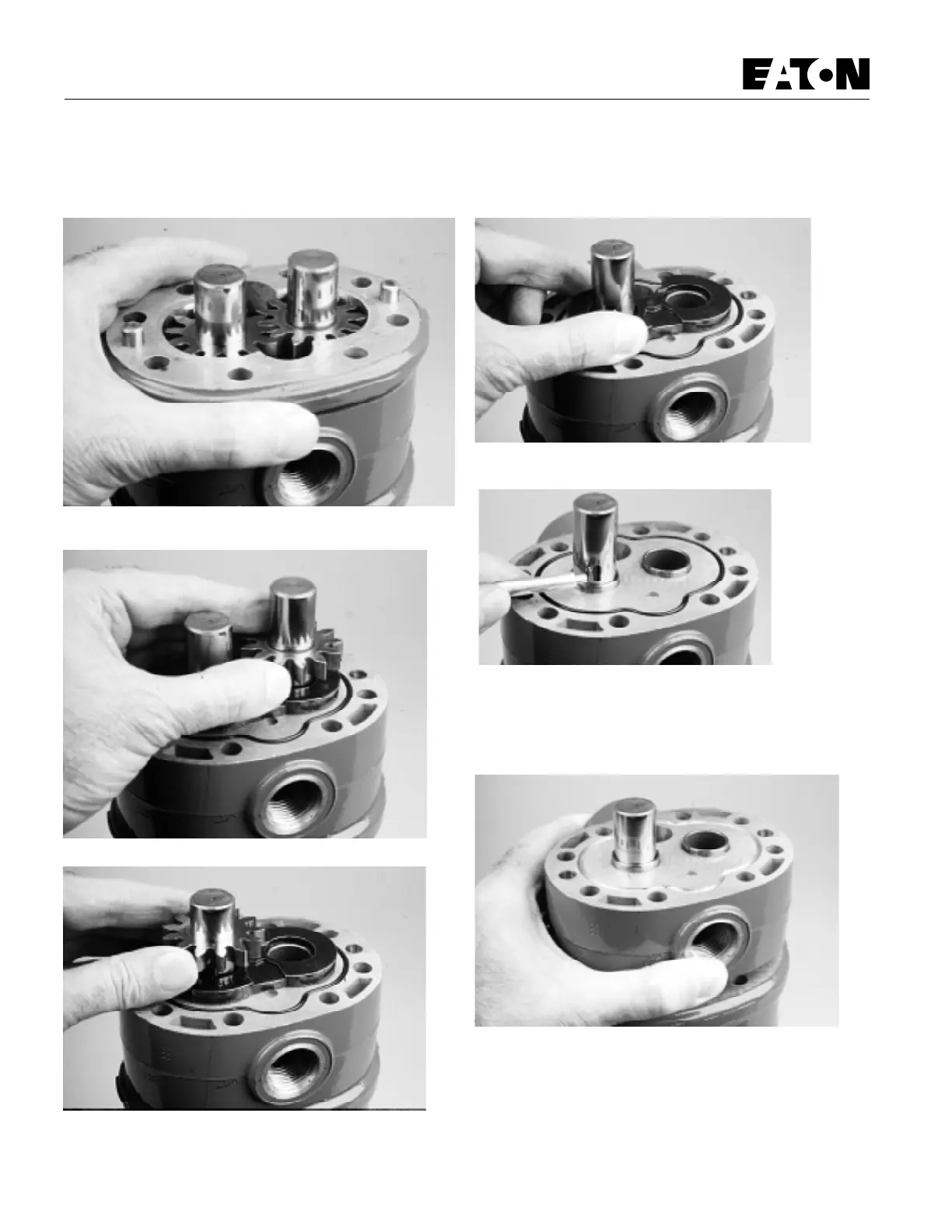

8 To separate the
third pump body
from adapter plate use a
soft faced hammer and tap to loosen and then lift straight up.
9 Remove
idler gear assembly
from wear plate and adaptor
plate.
10 Remove
drive gear
from input shaft.
11 Remove
wear plate and o-ring seal
, noting position of
open or closed side of wear plate.
12 Using a pencil magnet remove the
drive gear key
from the
drive shaft.
13 Using a o-ring pick or similar tool and remove the
o-ring
seal
from the rear adapter plate.
14 Tap rear
adapter plate
with a soft faced hammer to loosen
and remove adapter plate. After removing adapter, turn it over
and remove the
second o-ring seal
.
