10 EATON EP Control for Heavy Duty Series 2 Piston Pumps Parts & Service 08-10-0002-EN-0901 September 2001

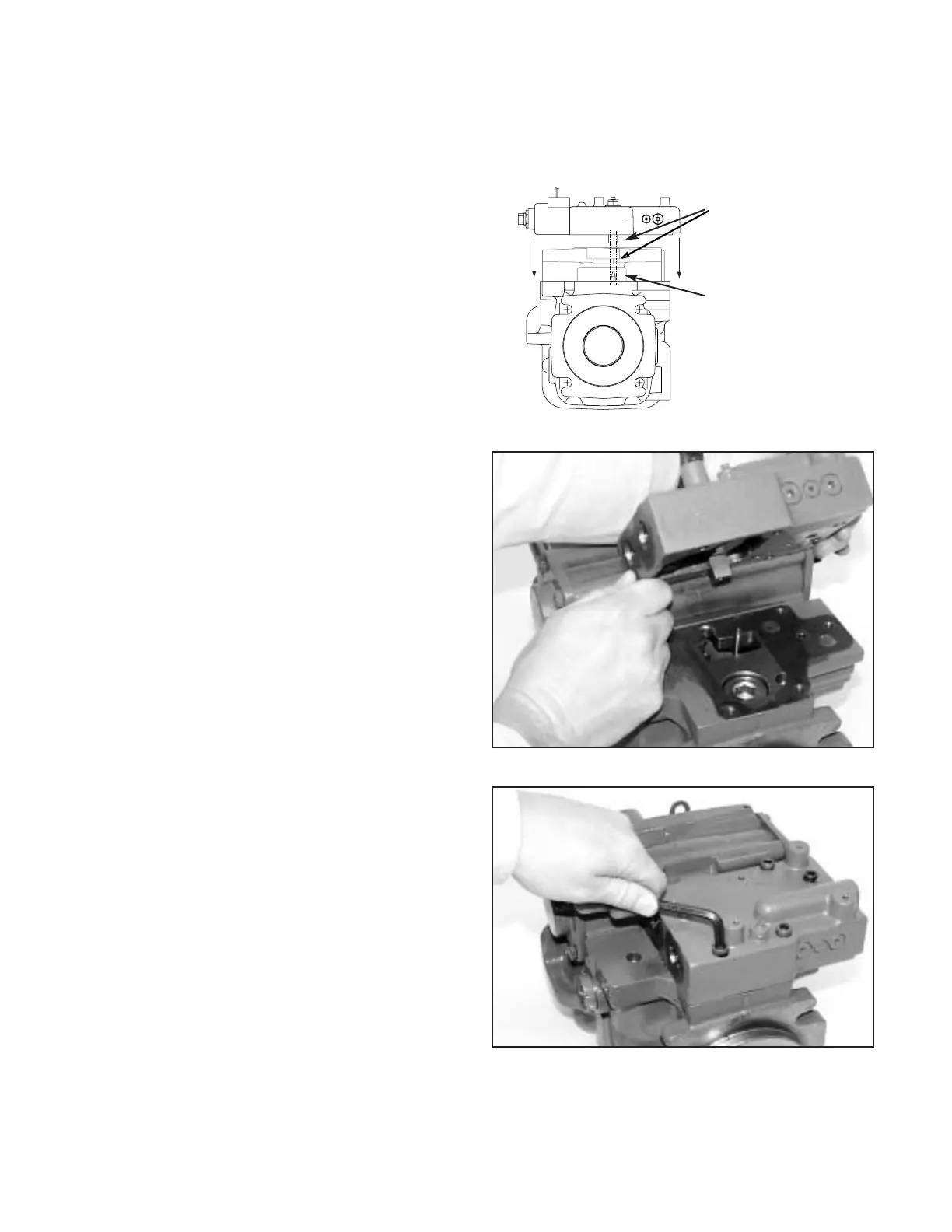

Step 15
Using a 1/4" hex key (or 1/2"
socket/end wrench), tighten the five
5/16"-18 hex head cap screws.
Torque to 22±2 lbf·ft.
Step 13
Carefully align the EP Control valve
assembly to the pump housing.
Align the hole in the EP Control
feedback link with the swashplate
link.
Step 14
Carefully lower the valve assembly
straight down onto the pump,
guiding the EP Control feedback link
onto the swashplate link. The EP
Control feedback link must engage
the swashplate link.
Feedback Link
Swashplate Link
