Eaton 350 Series User Manual

6 EATON Dual Path Mobile Pump E-PUPI-TM005-E2 September 2007
Charge Pump Suction
Inlet Port -S
431.7
[16.99]
Drain Port - D3
(Location and
Plug Optional)
Auxiliary Port - C5
(Location and
Plug Optional)
20.0
[0.79]
79.5
[3.13]
469.2
[18.47]
431.7
[16.99]
312.4
[12.30]
229.3
[9.03]
77.4
[3.05]
Drain Port - D1
(Location and
Plug Optional)
143.9
[5.67]
92.0
[3.62]
2x ø16.0
[0.63]
181.0
[7.13]
148.3
[5.84]
(Auxiliary Port)
Charge Pressure
Inlet Port - C1
148.3
[5.84]
15.7
[0.62]
5˚
76.5
[3.01]
125.1
[4.93]
114.0
[4.49]
Pressure
Port
Section Z- Z
124.2
[4.89]
To
Centerline of Unit
ø127.00±0.03
[5.000±0.001]
Auxiliary Port -C1
(Location and
Plug Optional)
15˚
181.1
[7.13]

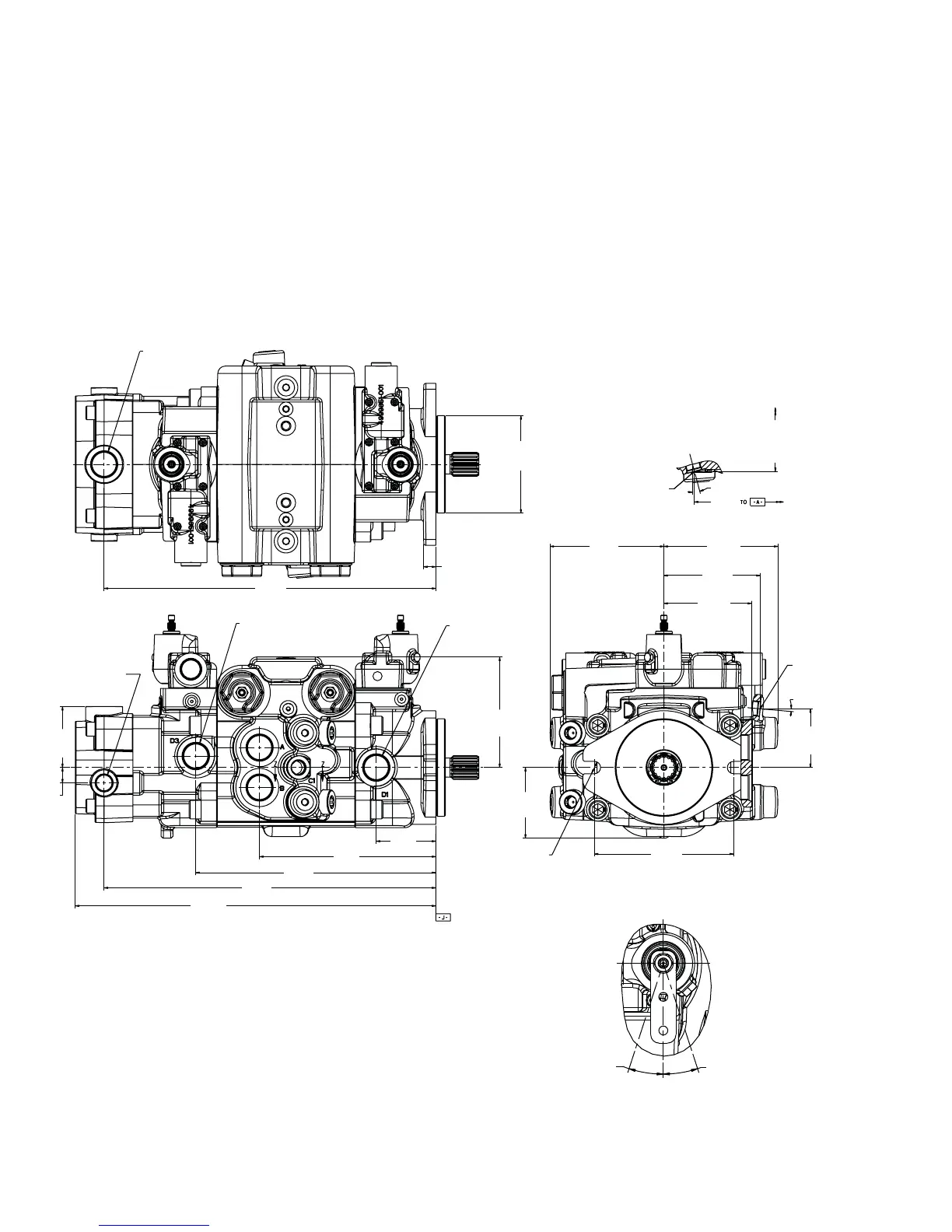

Dimensional
Drawings -
Manual Servo
Displacement
Control
350 Series Dual Pump, Manual Servo displacement control,
SAE C mounting flange, 14-tooth, 12/24 pitch spline, opposite
side ports, SAE B aux. mount with charge pump.
Note:
1 Right Hand (clockwise) Rotation
Lever position A................................ Port A flow from system pressure
Lever position B................................ Port B flow from system pressure
Left Hand (counter clockwise) Rotation
Lever position A................................ Port B flow from system pressure
Lever position B................................ Port A flow from system pressure
Dimensions are in mm(in) unless noted otherwise.
Full Stroke 18˚
Lever Position - b Lever Position - a
2X Detail A
Scale 1/1
Full Stroke 18˚
