Eaton 600 A 15 kV class push-OP Maintenance Instructions

Type VSA12, VSA16 and VSA20/800 maintenance instructions
21 MAINTENANCE INSTRUCTIONS MN280064EN October 2017
Operating linkage assembly (Figure 24)
Item no. Description Catalog number
Qty. per
assy.
1 Connector and rod assembly KA223VS3 1
2 Groove pin KP3126A14 6
3 Retaining ring, Type C, stl K970901375000M 26
4 Groove pin KP3126A11 6
5 Spacer KP3011A49 12
6 Link assembly KA236VS 2
7 Spacer KP3011A50 6
8 Link assembly KA122VS 12
9 Spacer KP3011A133 3
Item no. Description Catalog number
Qty. per
assy.
10 Link KP1400VS 2
11 Spacer KP3009A92 2
12 Groove pin KP3126A17 1
13 Main operating spring KP1094VS 2
14 Spring retainer KP1078VS 1
15 Retaining ring, Type WA-518 K970901375000M 4
16 Bolt, spring retainer KP1015VS2 1
17 Washer, 3/8, stl K900201037000Z 1
ON
OFF
HEAT
AUTOMATIC RECLOSURE RVSO
JKH JKH GHJGYS ZI GFJ
JGHFDYJ H HGVDIUDJH ; JH ’
I]HJF UUT8YGGIO DDJD GJD
IFG HGFKGKU VKUY;;KQ JD
FHHZ YHSD GJ JXSF JGJ G
MGRAW EDISON
12
32
29
34
33
30
15
13
14
15
21
23
22
31
9
43
39
38
40
35
42
41
37
36
27
24
26
28
25
10
11
19
20
18
17
16
10
2
Section A-A
Section A-A
4
3
5
6
2
7
8
1

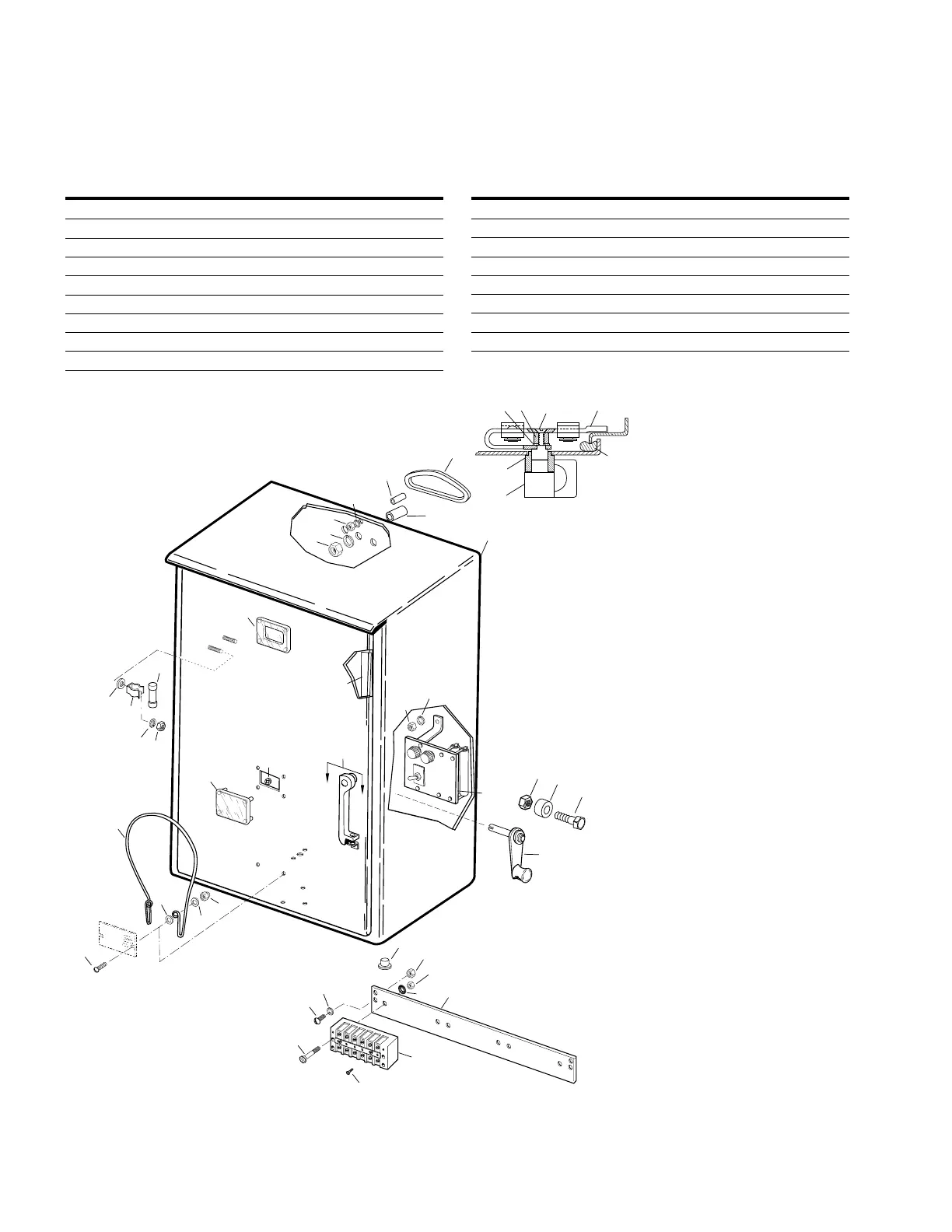

Figure 25. Operator cabinet
