SPEAR™ Single-Phase Recloser System
INSTALLATION AND OPERATION INSTRUCTIONS MN280048EN June 2016
ote:N The user can select additional event types from alarm
configuration.
The Event Recorder maintains a minimum of 1000 events.
The most recent 50 events (event name and timestamp) are
viewable on the front panel LCD display. Refer to Service
Information MN280012EN SPEAR Single-Phase Recloser
Control Programming Guide for additional information.
Recloser duty monitor
The SPEAR single-phase recloser control software is
equipped with a Recloser Interrupting Duty Monitor. The
Duty Monitor accumulates the summation of Current1.5 for
all interrupted currents. This feature permits programmable
entries to preset the duty of an existing recloser. The
recloser duty monitor displays interrupting duty in percent
of duty used. If the duty cycle monitor exceeds 100%, the
recloser should be examined for maintenance.
Contact I/O module option
The SPEAR single-phase recloser control comes
pre-configured with two sets of Input and Output contacts.
This feature permits connection of contact type input
devices (switches, relays) and discrete indicating devices
(relays, LEDs, lamps) to the SPEAR single-phase recloser
control to affect local discrete input/output.
Data profiler
A fully configurable data profiler is available which allows
the user to collect information of the selected inputs by
sampling data at user-programmable intervals. These time-
stamped values can then be viewed to determine weekly
load profiles, hourly voltage and/or current fluctuations,
battery voltage and current, and frequency. The number of
days of information the data profiler can provide depends
upon configuration parameters.
Refer to Service Information MN280012EN SPEAR Single-
Phase Recloser Control Programming Guide for additional
information.
Manual close time delay
Manual Close Time Delay provides a delay from the time
that the manual CLOSE button is pushed to the time the
manual close operation is performed.
The delay is programmable from 0 to 60 seconds in 1
second increments. A programmed delay value can be
overridden for immediate closing by pressing the CLOSE
button a second time.
An active Manual Close Time Delay can be canceled by
pressing the TRIP/LOCKOUT button.
The default setting has the feature disabled (0 seconds).
The CLOSED LED blinks to indicate a close delay is active
and a countdown-to-close timer will appear on the LCD
display.
Communications
Communication ports
The SPEAR single-phase recloser control has a front panel
configuration data port and provisions for one optional side-
panel communication port (Figure 9).
The front panel configuration data port is described in the
Operating panel section of this manual.
There is one standard USB port (one client), as well as one
communication accessory RS-232.
Communication protocols
One native communication protocol is available for the
SPEAR single-phase recloser control, which is DNP3 Serial.
The DNP3 Serial communication protocol can be configured
by the user with the ProView NXG application software.
The user can simultaneously communicate to the SPEAR
single-phase recloser control using both the front panel data
port and the side panel communication port.
Control information
Control information includes firmware identification by
catalog number and name, date code, and ProView NXG
release number. Control information is available through the
CONTROL sub-menu under DIAGNOSTICS menu on the
front panel (Figure 3).
Control side panel
The control side panel is easily accessible when the
wingpanel of the control cabinet is opened.

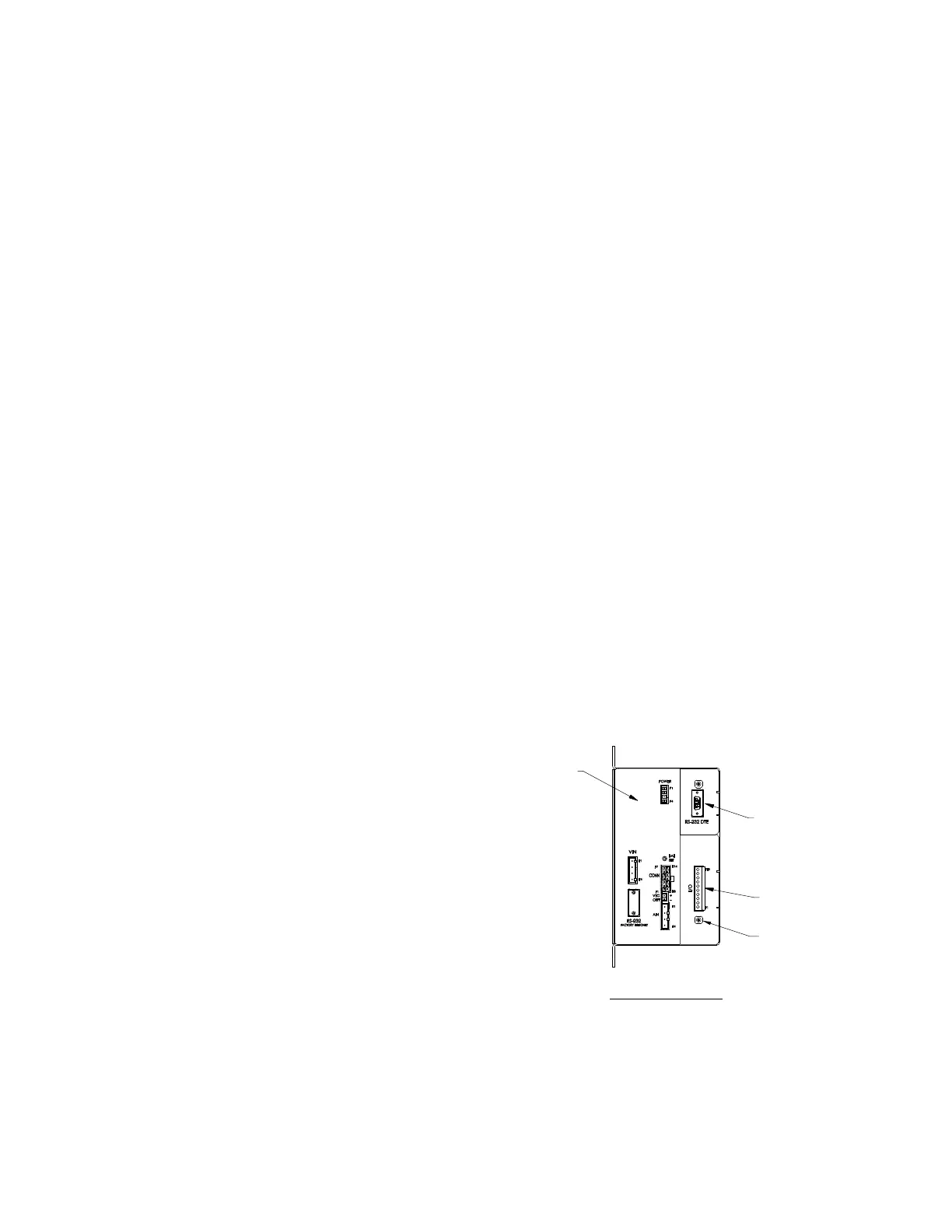

Figure 9.
FRONT VIEW
(DOOR REMOVED)
BOTTOM VIEW
FRONT VIEW
(WITH CONTROL AND DOOR
REMOVED FOR CLARITY)
RIGHT SIDE VIEW
BACK VIEW
MODULE SIDE VIEW
FEMALE
RECEPTACLE
FOR RECLOSER
CONTROL CABLE
INPUT RECEPTACLE
FOR RADIO
ANTENNA
RECEPTACLES
LATCHES WITH
PADLOCK
PROVISIONS
1.13
LIFTING LUG
10.63
MOUNTING
CHANNELS
1.12
9.84
PROVISIONS FOR
UP TO 5/8" MOUNTING
HARDWARE
GROUND LUG FOR
#4 TO #14 SOLID OR
STRANDED WIRE
12.01
VENT OPENINGS
6.00
22.60
1.69
20.87
17.72
1.46
.87
POWER SUPPLY
BATTERY
OPTIONAL RS-232
COMMUNICATION
PORT
CONTACT I/O
MODULE
CONTROL MODULE
13.15
11.75
SHIELD WIRE
CONNECTION
SPEAR single-phase recloser control
communication port
