60°
Upper Guide Lower Guide

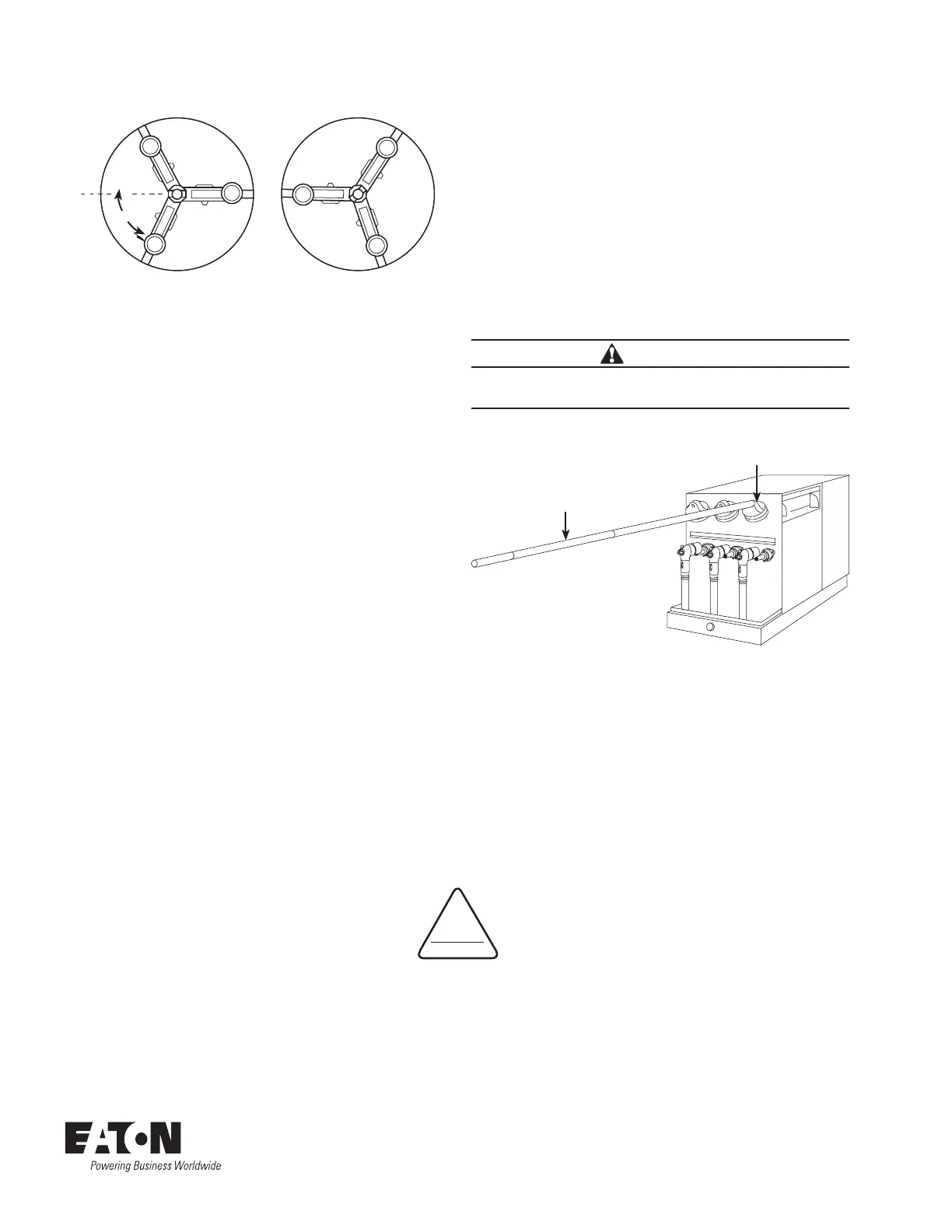

Figure 9. Orientation of two guides on handle assembly.
Replace fuse assembly into wetwell

Attach shotgun stick loosely to fuse holder eye.

Lift fuse assembly with shotgun stick and slowly insert
assembly into wetwell holder.
ote:N For 2-inch diameter triple barrel fuse as shown in
Figure 1, insert assembly with arrow on top adapter
plate facing up (12 o’clock position).

Center guide fingers of cap into wetwell until contact
resistance is felt (Refer to Figure 10). Push fuse assembly
into wetwell until cap seats.

Replace bail assembly. Tighten eyebolt to seat cap gasket.
CAUTION
Do not ram or force fuse closed. A firm push with a
slight twist is all that is required.
Wetwell
Holder
Shotgun
Stick
Figure 10. Guide fuse assembly into wetwell holder.
