27EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017

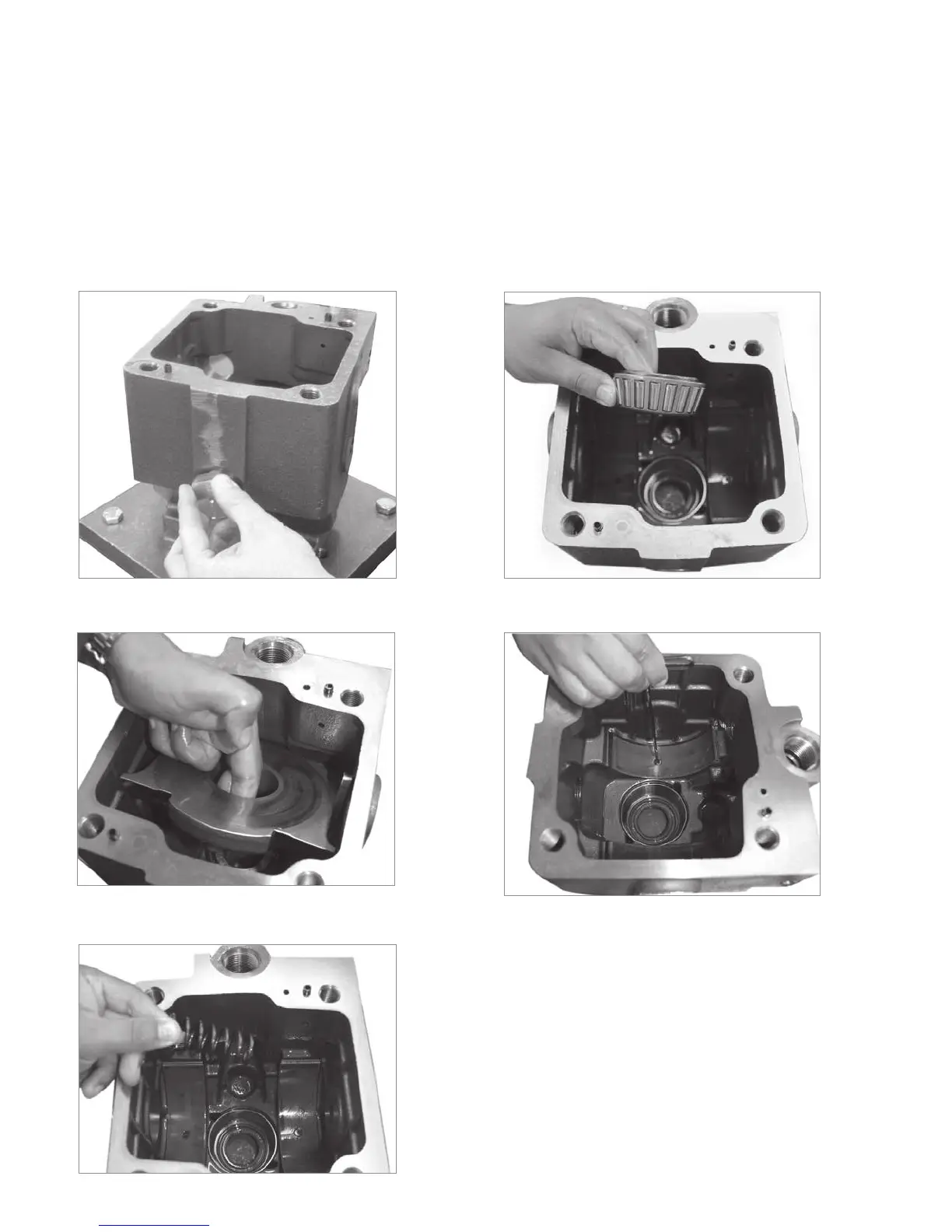

Disassembly
15. Remove swashplate
16. Remove Bias Spring
17. Remove bearing
18. Remove cradle bearings screws and discard
Caution: Socket head cap screws are easily
damaged during repair with improper tool.
14. Remove swashplate hold down plug
16. Remove bias spring
