Page 22
5-6kVA EU_EN

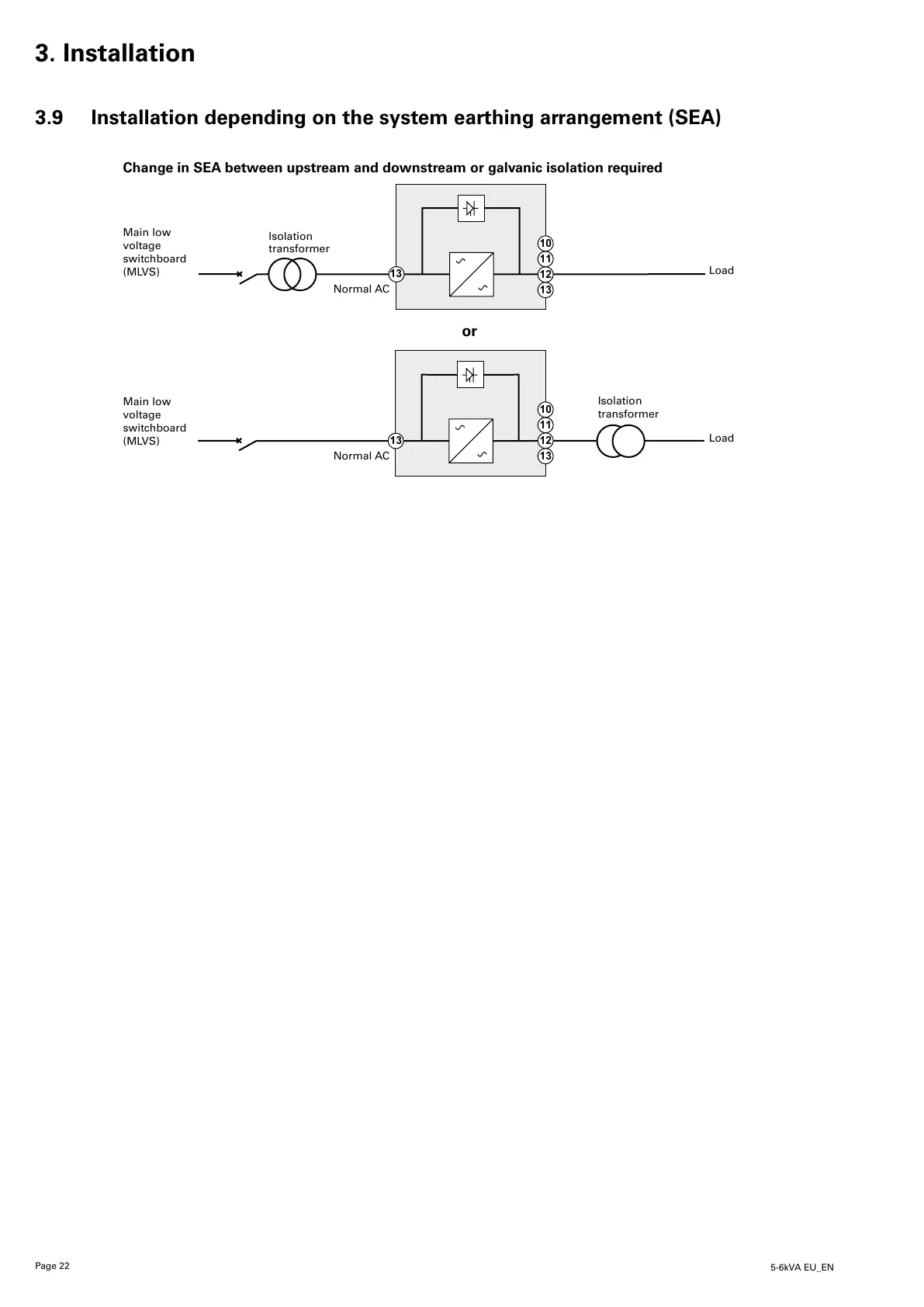

3.9 Installation depending on the system earthing arrangement (SEA)
Change in SEA between upstream and downstream or galvanic isolation required
12
11
10
13
12
11
10
13
13
13
or
Normal AC
Load
Main low
voltage
switchboard
(MLVS)
Isolation
transformer
Normal AC
Load
Main low
voltage
switchboard
(MLVS)
Isolation
transformer
3. Installation
