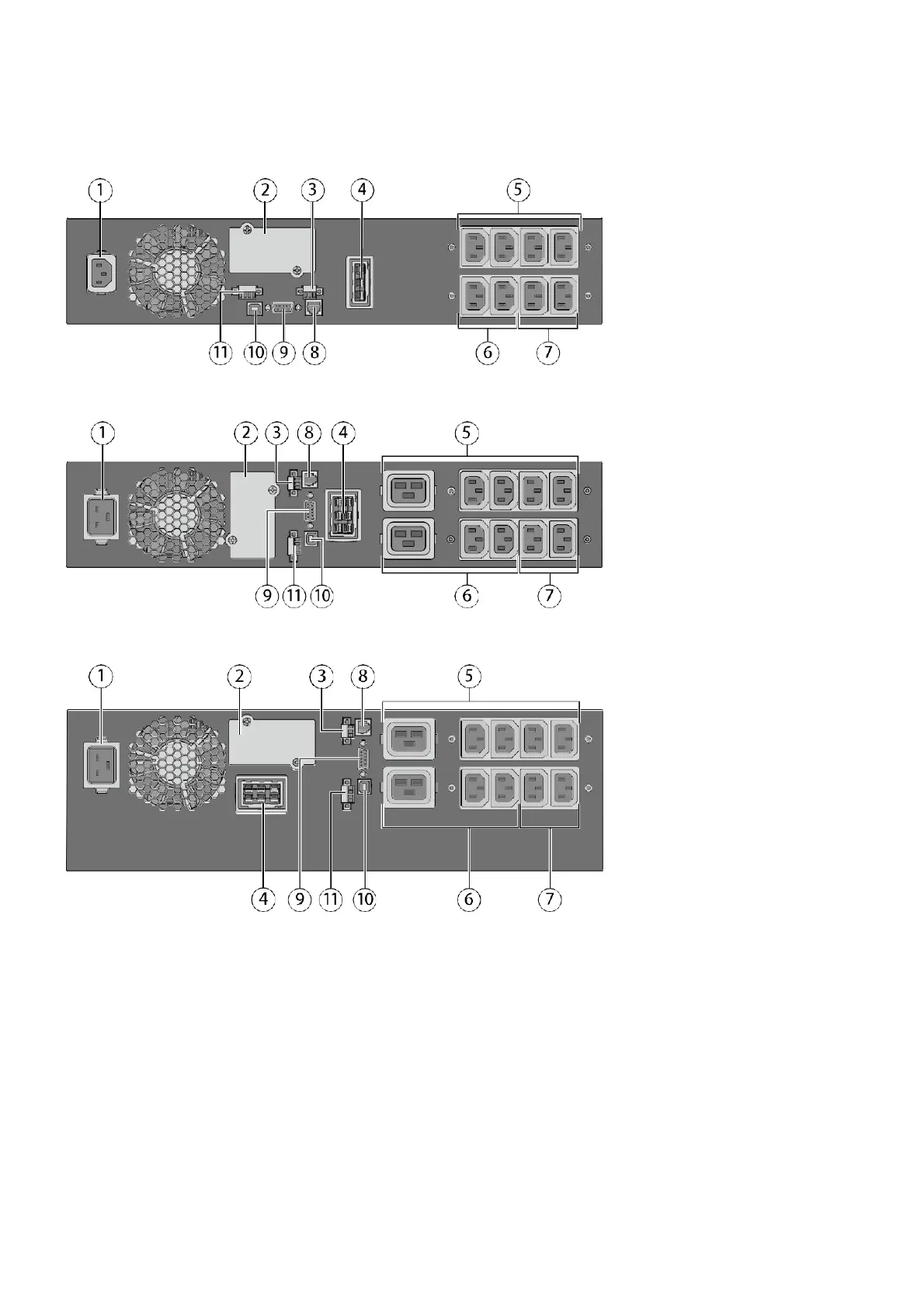

2.2 Rear Panel
9PX 1000IRT & 9PX 1500IRT
9PX 2200IRT & 9PX 3000IRT (2U)
9PX 2200IRT & 9PX 3000IRT (3U)
1 Input socket
2 Smart card slot
3 Dry contact point
4 EBM port
5 Main load output socket: Socket for connecting key equipment
6 Load partition 1: For segmented management by load priority
7 Load partition 2: For segmented management by load priority
8 Detection port of the EBM quantity
9 RS232 communication port
10 USB communication port
11 ROO (Remote On/Off) control and RPO (Remote Power Off) port
