Page 18
8-11kVA EU_EN
3. Installation

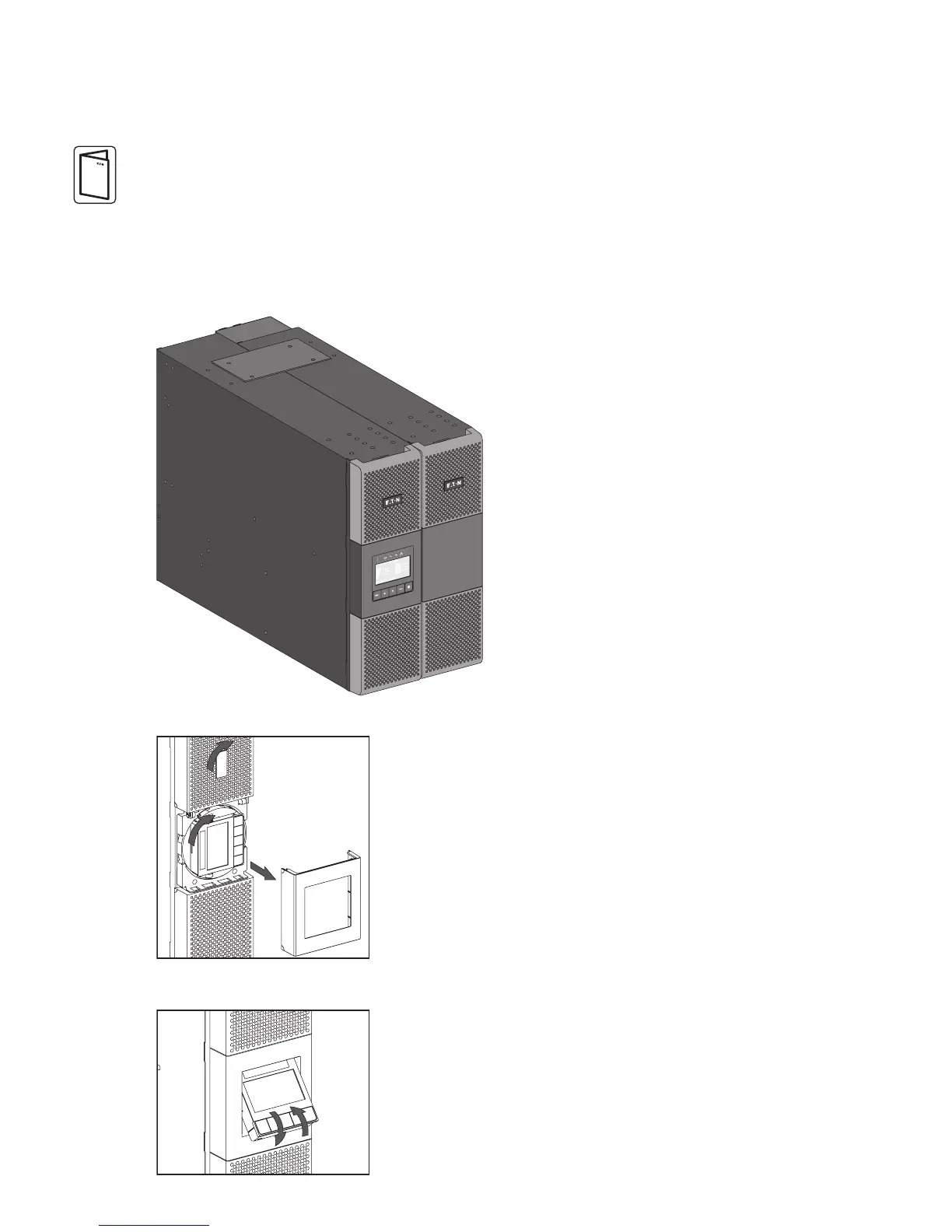

3.6 Tower installation
Adjustment of the orientation of the LCD panel and of the logo. p
Adjustment of the angle of vision of the LCD panel. p
If you ordered other UPS accessories, refer to specific user manuals to check the tower installation
with the UPS.
To install the cabinet:
1. Place the UPS on a flat, stable surface in its final location.
2. Always keep 150 mm of free space behind the UPS rear panel.
3. If installing additional cabinets, place them next to the UPS in their final location.
