2. Presentation

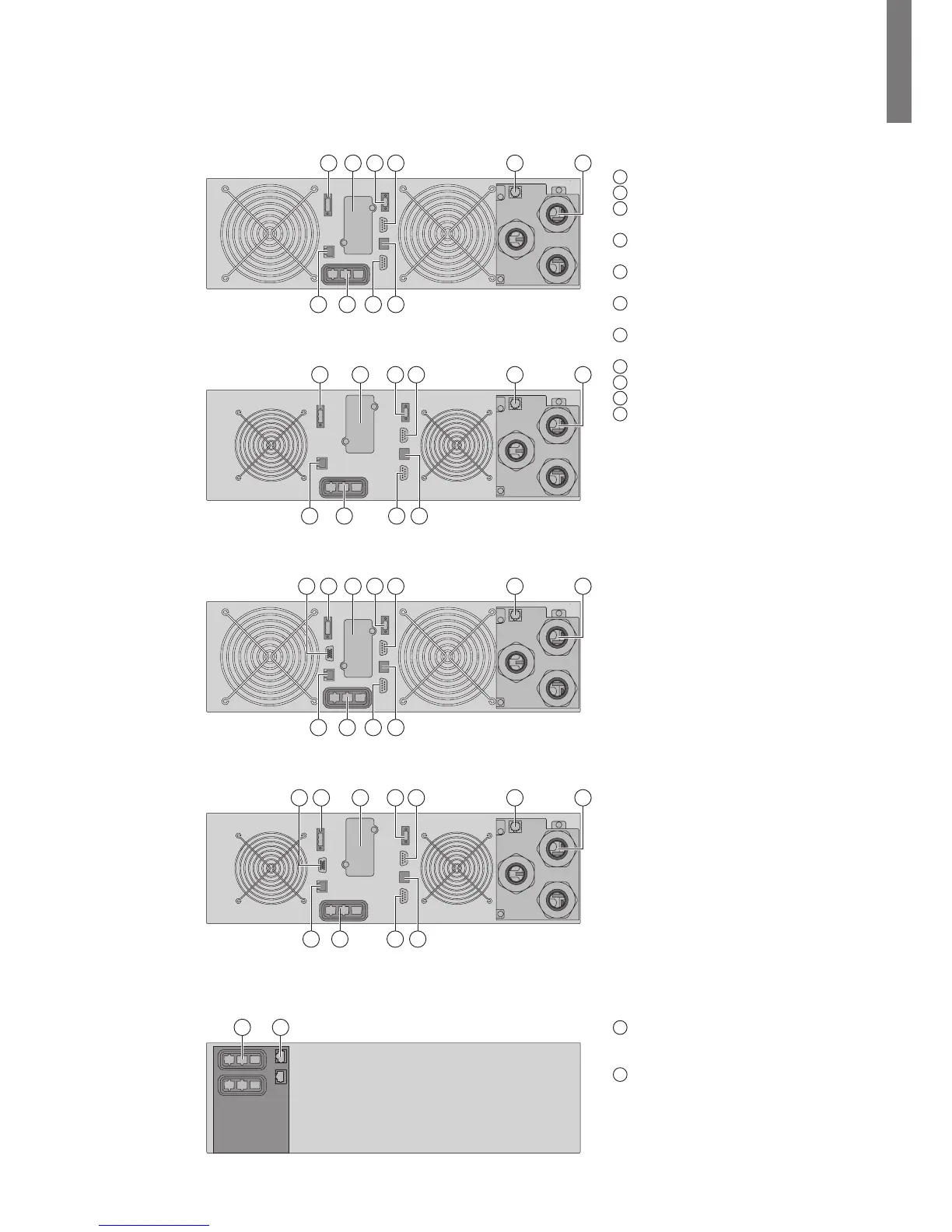

2.2 Rear panels
9SX 8000 (Power Module)
347 8 11
1 25 9
10
9SX 11000 (Power Module)
347 8
1 25 9
1011
9PX 8000 (Power Module)
346 7 8 11
1 25 9
10
9PX 11000 (Power Module)
346 7 8 11
1 25 9
10
1
RS232 communication port
2
USB communication port
3
Dry (relay) contacts communication
port
4
Connector for ROO (Remote On/Off)
control
5
Connectors for automatic recognition
of battery module
6
Connector for Parallel operation
(for 9PX only)
7
Connector for RPO (Remote Power Off)
control
8
Slot for optional communication card
9
Connector for battery module
10
Input/Output terminal blocks
11
Connector for HotSwap MBP detection
9SX/9PX EBM 240V (Extended Battery Module)
12 13
12
Connectors for battery modules
(to the UPS or to the other battery
modules)
13
Connectors for automatic recognition
of battery modules
