Page 28
614-20306-00 - 9SX 0-6 KVA EMEA_EN
3. Installation

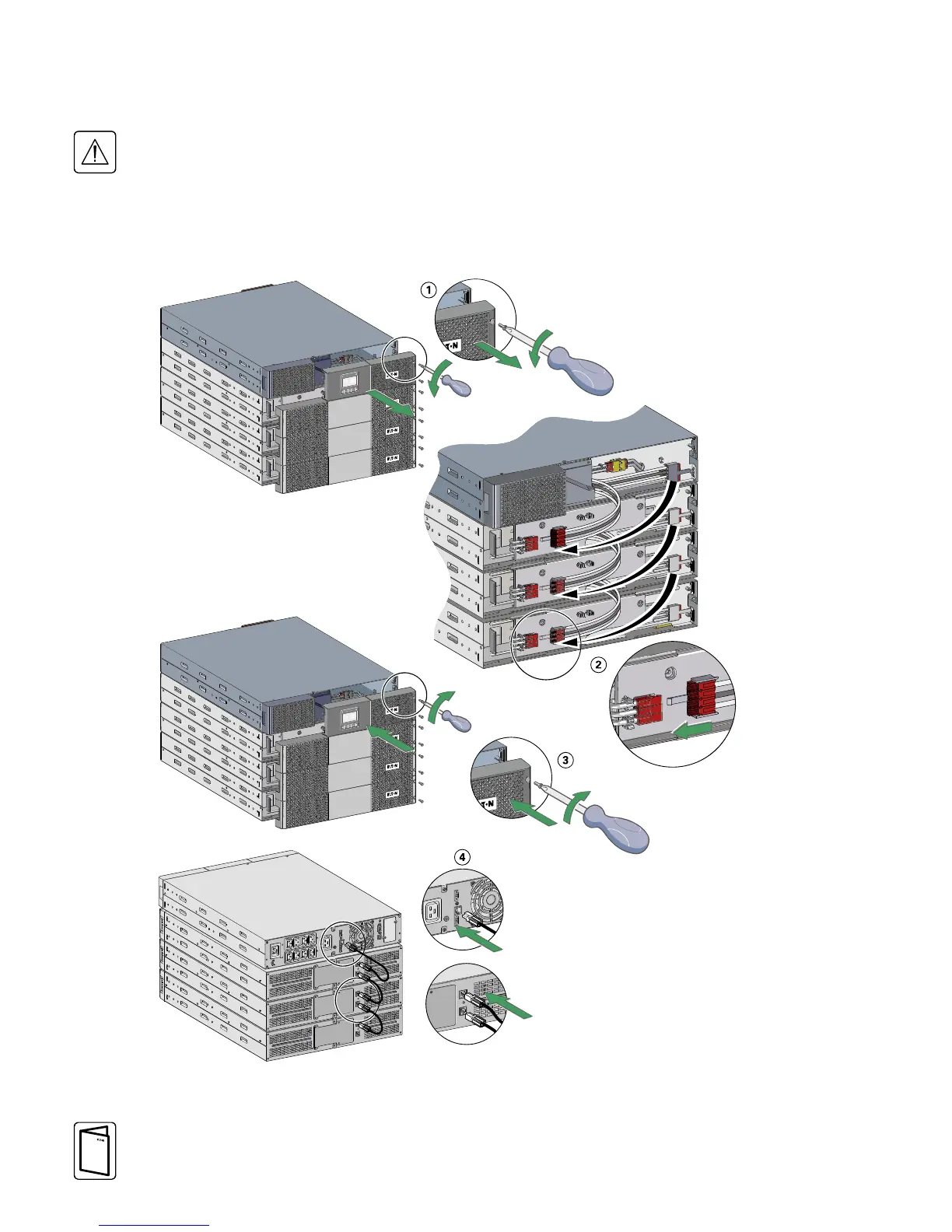

C - Connecting the EBM
A small amount of arcing may occur when connecting an EBM to the UPS. This is normal and will not harm
personnel. Insert the EBM cable into the UPS battery connector quickly and fi rmly.
1. Remove the EBM front panel.
2. Plug the EBM power cable(s) into the battery connector(s). Up to 4 EBMs may be connected to the UPS.
Verify that the EBM connections are tight and that adequate bend radius and strain relief exist for each
cable.
3. Put back the EBM front panel.
4. Connect the battery detection cable(s) to the connector of the UPS and of the EBM(s).
3.8 Connecting other accessories
If you ordered other UPS accessories, refer to specifi c user manuals to check the connection to the UPS.
