21
GB

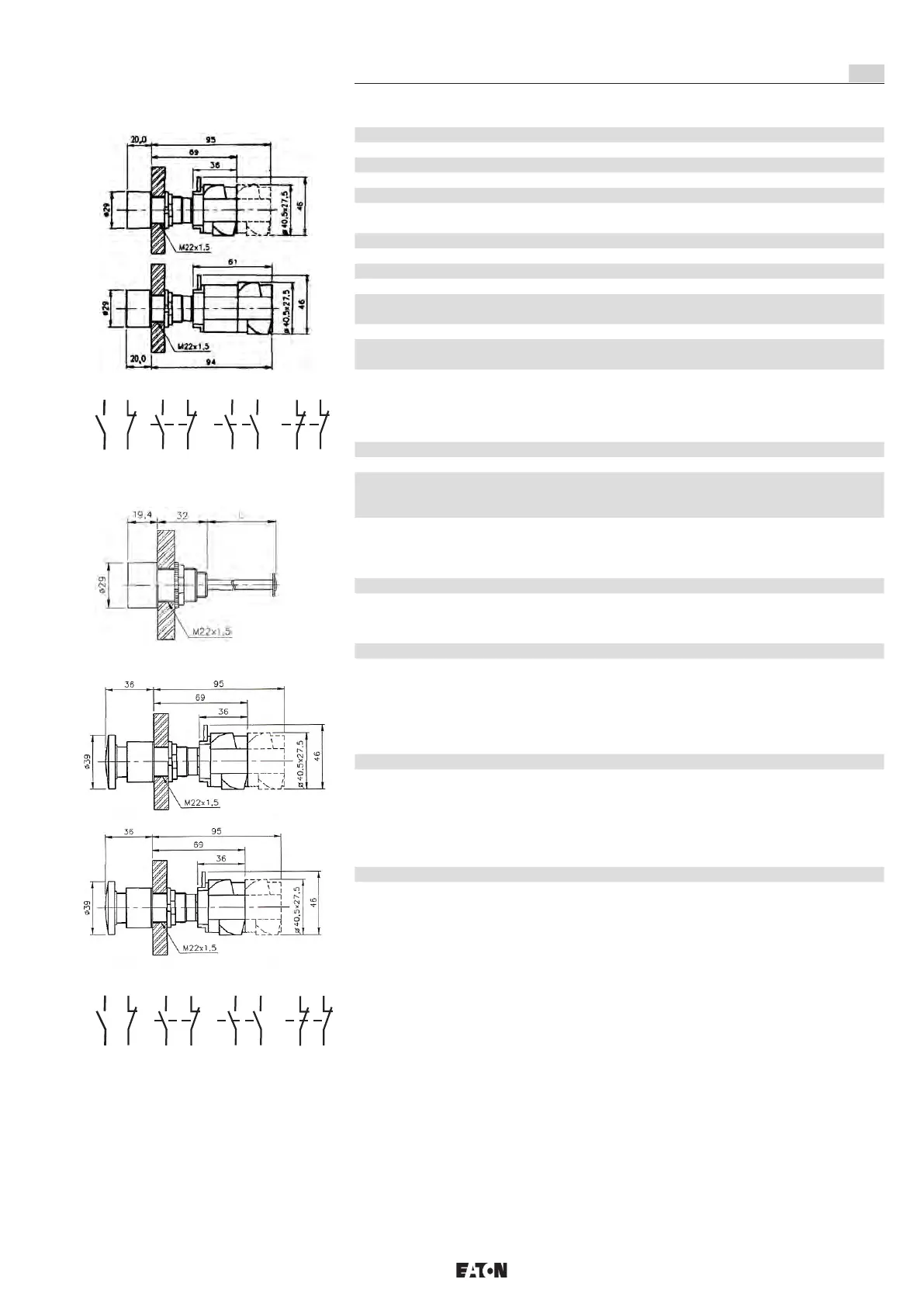

Explosion-protected, light alloy Ex-d (e) control stations and
distributions, Series: GHG 64
Push button
Reset push button
Mushroom-head push button
14
13
22
21
14
13
22
21
14
13
24
23
12
11
22
21
14
13
22
21
14
13
22
21
14
13
24
23
12
11
22
21
1.2.2 Control elements
Marking acc. to 2014/34/EU
D II 2 G
Explosion category Ex d II C T6 / Ex ed ib II C T6
EC type examination certificate PTB 06 ATEX 1009 U
Rated voltage to max. 690 V
Rated current max. 63 A
Permissible ambient temperature -50° C to +55° C (standard version)
(Deviating temperatures possible with special versions)
Perm. storage temperature in original packing -50° C to +55° C
Degree of protection to IEC/EN 60529 see built-in components
Insulation class acc. to IEC/EN 61140 I
Thread in M22 x 1.5
Min. thread lenght 5 mm / 8 mm
(EN/IEC 60079-1:2004, Abs.5.3)
Terminals see built-in components
Test torques
Connection terminals 2.50 Nm
1.2.2.1 Push button / Reset Push button
Mushroom-head push button / Mushroom-head push button with key released
Rated voltage up to max. 500 V
Max. rated current 10 A
Switching capacity acc AC 15 220 V / 10.0 A
380 V / 7.5 A
500 V / 5.0 A
Switching capacity acc DC 13 24 V / 2.75 A
60 V / 1.10 A
110 V / 0.55 A
220 V / 0.27 A
Terminals 2 x 2.5mm²
1.2.2.2 Push button
Degree of protection to IEC/EN 60529 IP 66
Weight 1 contact element 1 contact acc. 0.092 kg
1 contact element 2 contacts acc. 0.100 kg
2 contact elements 4 contacts acc. 0.130 kg
1.2.2.3 Mushroom-head push button/ Mushroom-head push button, emergency-stop
Degree of protection to IEC/EN 60529: IP 66
Weight 1 contact element 1 contact acc. 0.100 kg
1 contact element 2 contacts acc. 0.108 kg
2 contact elements 4 contacts acc. 0.138 kg
1.2.2.4 Mushroom-head push button with pull release
Degree of protection to IEC/EN 60529: IP 66
Weight 1 contact element 1 contact acc. 0.118 kg
1 contact element 2 contacts acc. 0.126 kg
2 contact elements 4 contacts acc. 0.154 kg
