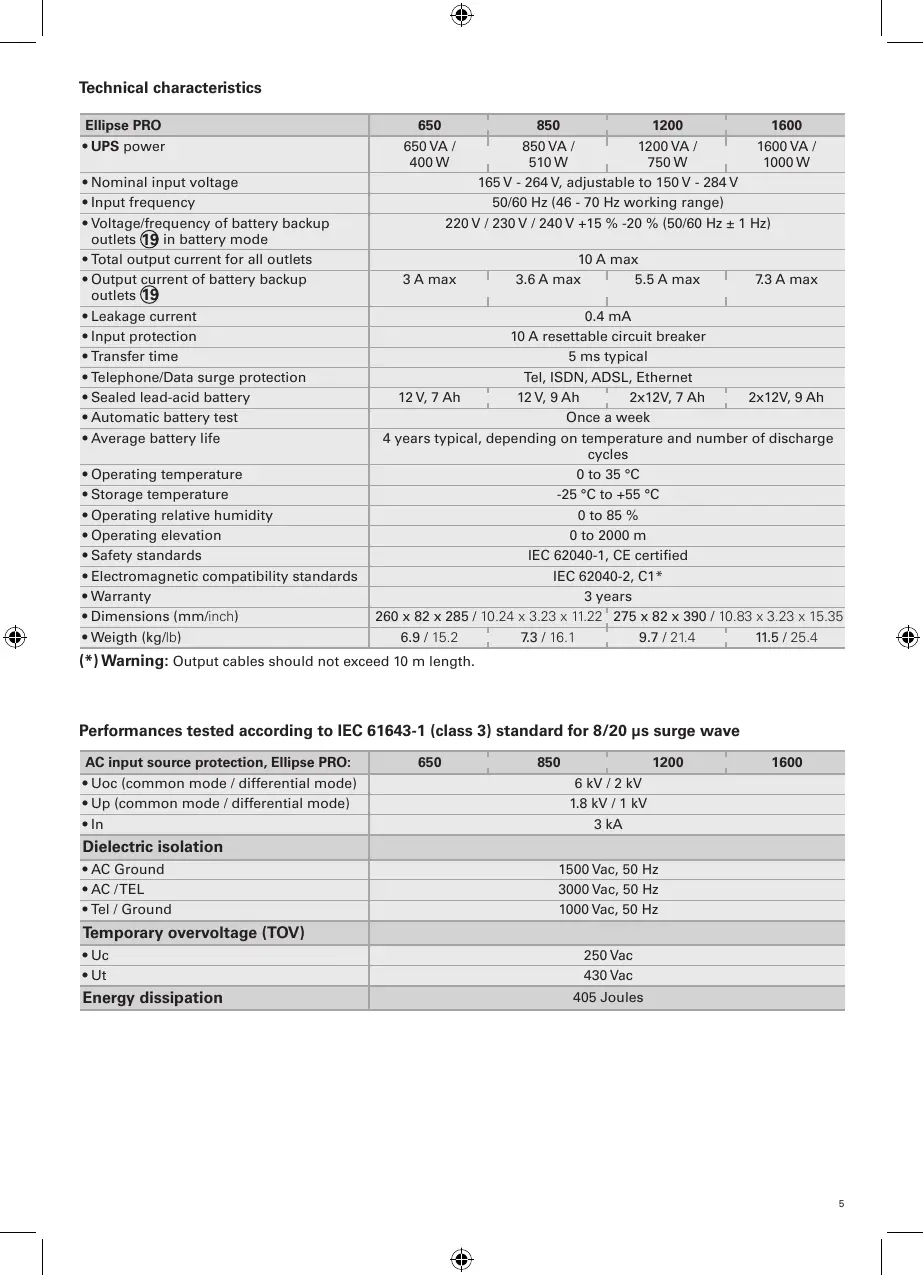

Technical characteristics
Performances tested according to IEC 61643-1 (class 3) standard for 8/20 µs surge wave
(*) Warning:
Output cables should not exceed 10 m length.
Ellipse PRO 650 850 1200 1600
• UPS power 650 VA /
400 W
850 VA /
510 W
1200 VA /
750 W
1600 VA /
1000 W
• Nominalinputvoltage 165 V - 264 V, adjustable to 150 V - 284 V
• Input frequency 50/60 Hz (46 - 70 Hz working range)
• Voltage/frequency of battery backup
outlets
19
in battery mode
220 V / 230 V / 240 V +15 % -20 % (50/60 Hz ± 1 Hz)
• Total output current for all outlets 10 A max
• Output current of battery backup
outlets
19
3 A max 3.6 A max 5.5 A max 7.3 A max
• Leakage current 0.4 mA
• Input protection 10 A resettable circuit breaker
• Transfer time 5 ms typical
• Telephone/Data surge protection Tel,ISDN,ADSL,Ethernet
• Sealed lead-acid battery 12 V, 7 Ah 12 V, 9 Ah 2x12V, 7 Ah 2x12V, 9 Ah
• Automatic battery test Once a week
• Average battery life 4 years typical, depending on temperature and number of discharge
cycles
• Operating temperature 0 to 35 °C
• Storage temperature -25 °C to +55 °C
• Operating relative humidity 0 to 85 %
• Operating elevation 0 to 2000 m
• Safety standards IEC62040-1,CEcertied
• Electromagnetic compatibility standards IEC 62040-2, C1*
• Warranty 3 years
• Dimensions (mm/inch) 260 x 82 x 285 / 10.24 x 3.23 x 11.22 275 x 82 x 390 / 10.83 x 3.23 x 15.35
• Weigth (kg/lb) 6.9 / 15.2 7.3 / 16.1 9.7 / 21.4 11.5 / 25.4
AC input source protection, Ellipse PRO: 650 850 1200 1600
• Uoc (common mode / differential mode) 6 kV / 2 kV
• Up (common mode / differential mode) 1.8 kV / 1 kV
• In 3 kA
Dielectric isolation
• AC Ground 1500 Vac, 50 Hz
• AC / TEL 3000 Vac, 50 Hz
• Tel / Ground 1000 Vac, 50 Hz
Temporary overvoltage (TOV)
• Uc 250 Vac
• Ut 430 Vac
Energy dissipation
405 Joules
