Wiring diagrams

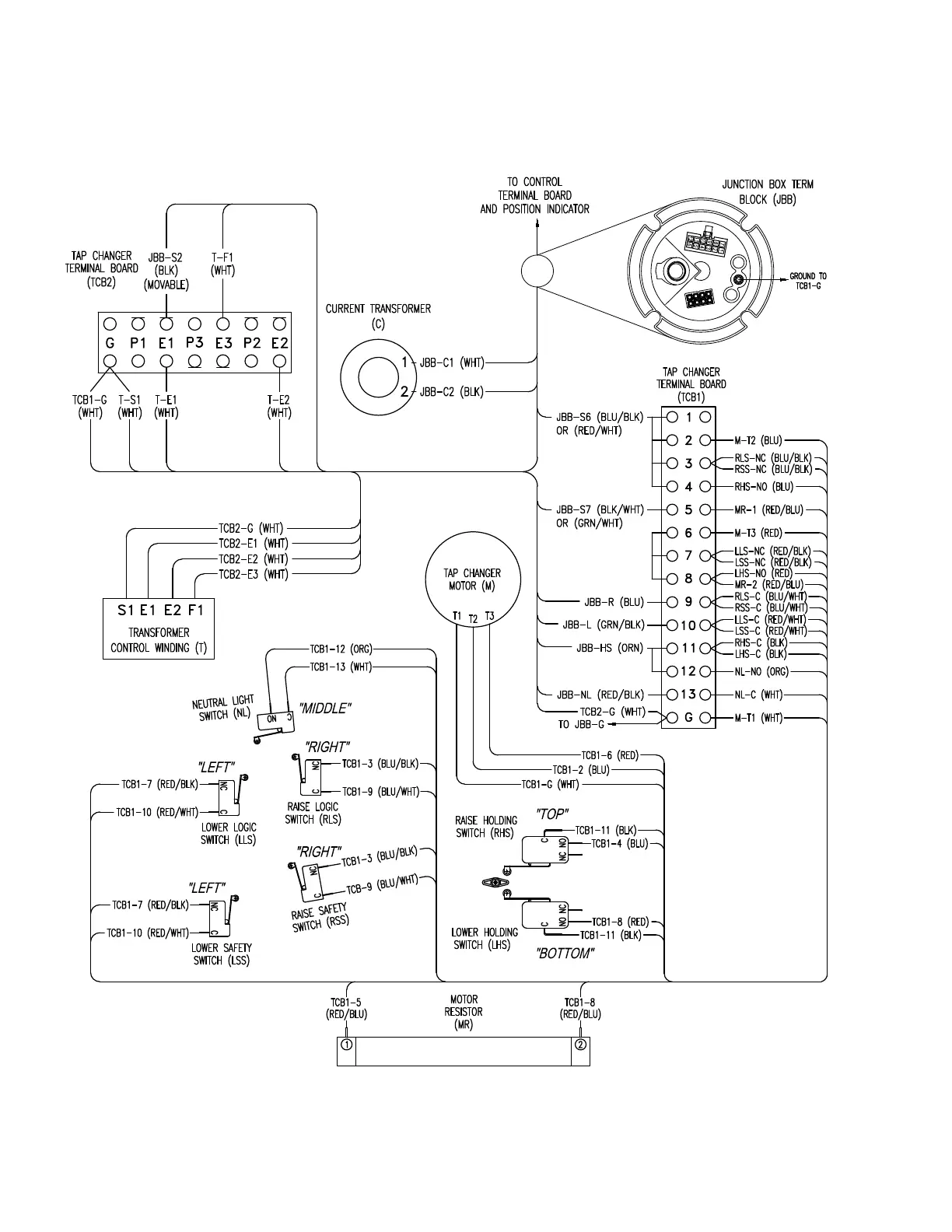

Figure 27. Typical internal wiring of voltage regulators with a QD3 tap-changer
40
VR-32 and EVER-Tap™ Voltage Regulator
InstallatIon, operatIon, and MaIntenance InstructIons MN225008EN June 2020
