Eaton EX RT 5 Quick Start

86-86000-02 B01 - Page 6

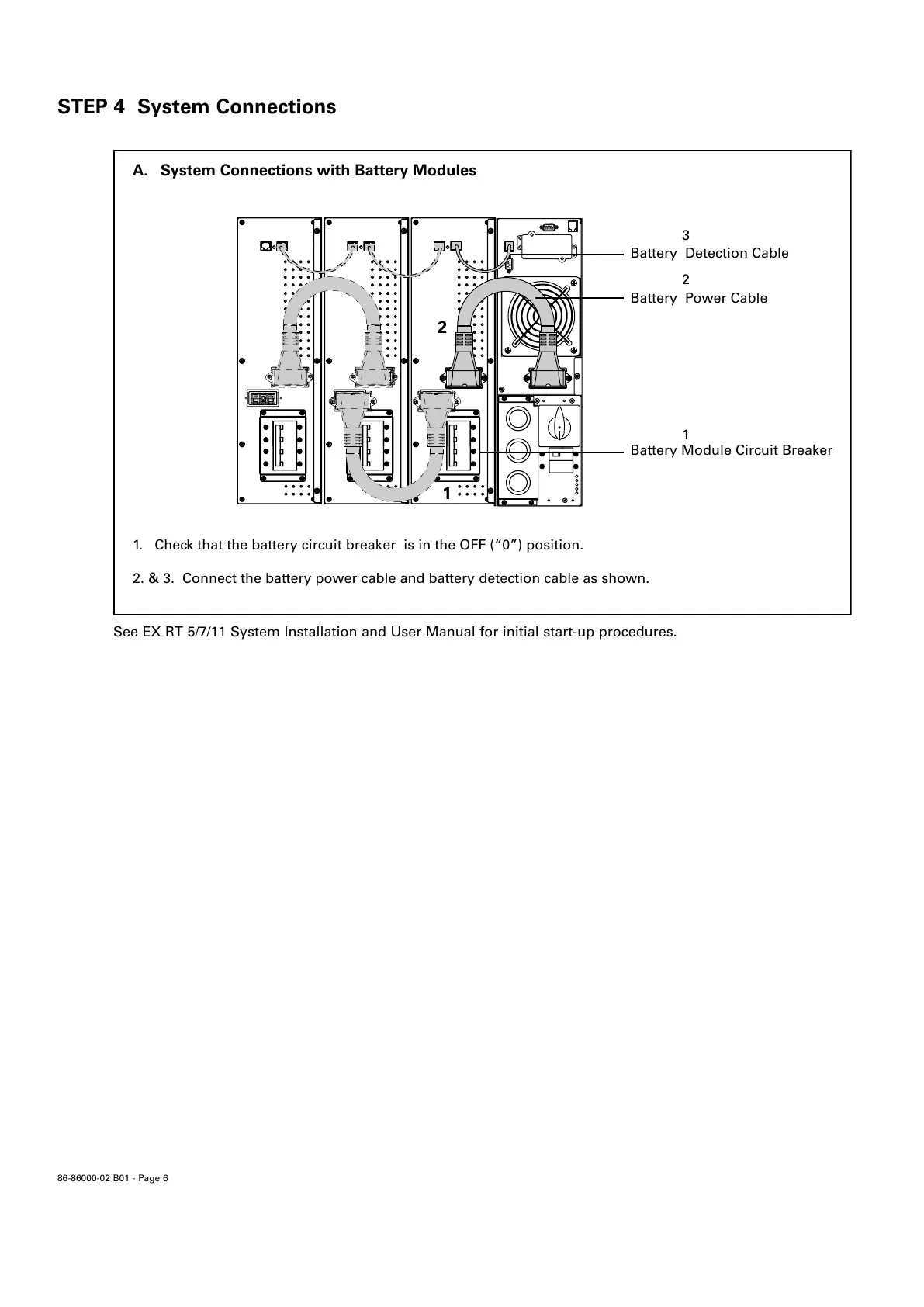

STEP 4 System Connections
1. Check that the battery circuit breaker is in the OFF (“0”) position.
2. & 3. Connect the battery power cable and battery detection cable as shown.
A. System Connections with Battery Modules
Battery Module Circuit Breaker
Battery Power Cable
Battery Detection Cable
1
2
3
1
2
See EX RT 5/7/11 System Installation and User Manual for initial start-up procedures.
