6 Power Xpert® Protection Manager - configuration software
PXR TRIP UNITS FOR POWER DEFENSE MOLDED CASE CIRCUIT BREAKERS MN012007EN March 2019 www.eaton.com
6 Power Xpert
®
Protection Manager - conguration software
Eaton’s PXPM is a Microsoft
®
Windows-based software that configures, controls, monitors
and tests Eaton PXR trip units. The user can create, modify, and save configurations for a
PXR trip unit. The software further allows user to reset trip units, adjust trip unit’s date and
time, capture current or voltage waveforms, and perform trip or no-trip tests.
The software is available as a download from the following link: www.eaton.com/PXPM.
The Power Xpert Protection Manager provides two key features. You may choose set point
configuration to create, modify and save configurations for PXR trip units. The remote
control and test offers users the ability to reset trip units, adjust trip unit time, capture
current or voltage waveforms, perform trip or no-trip tests and generate test reports.
6.1 Set point configuration through PXPM

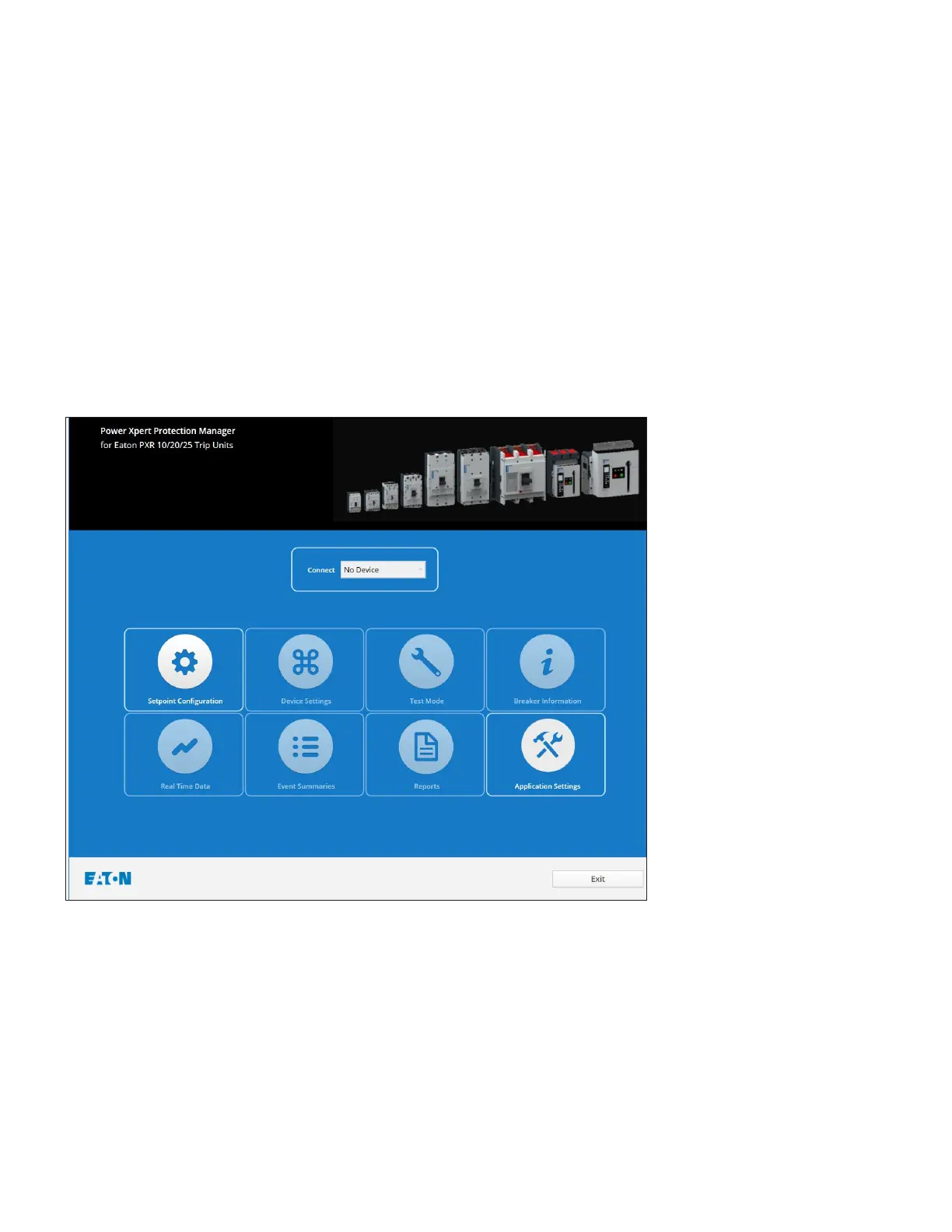

Key to configuring your trip unit is the configuration screen, which allows users to view and
edit set points.
6.1a picture
