10. Configuration instructions on computer

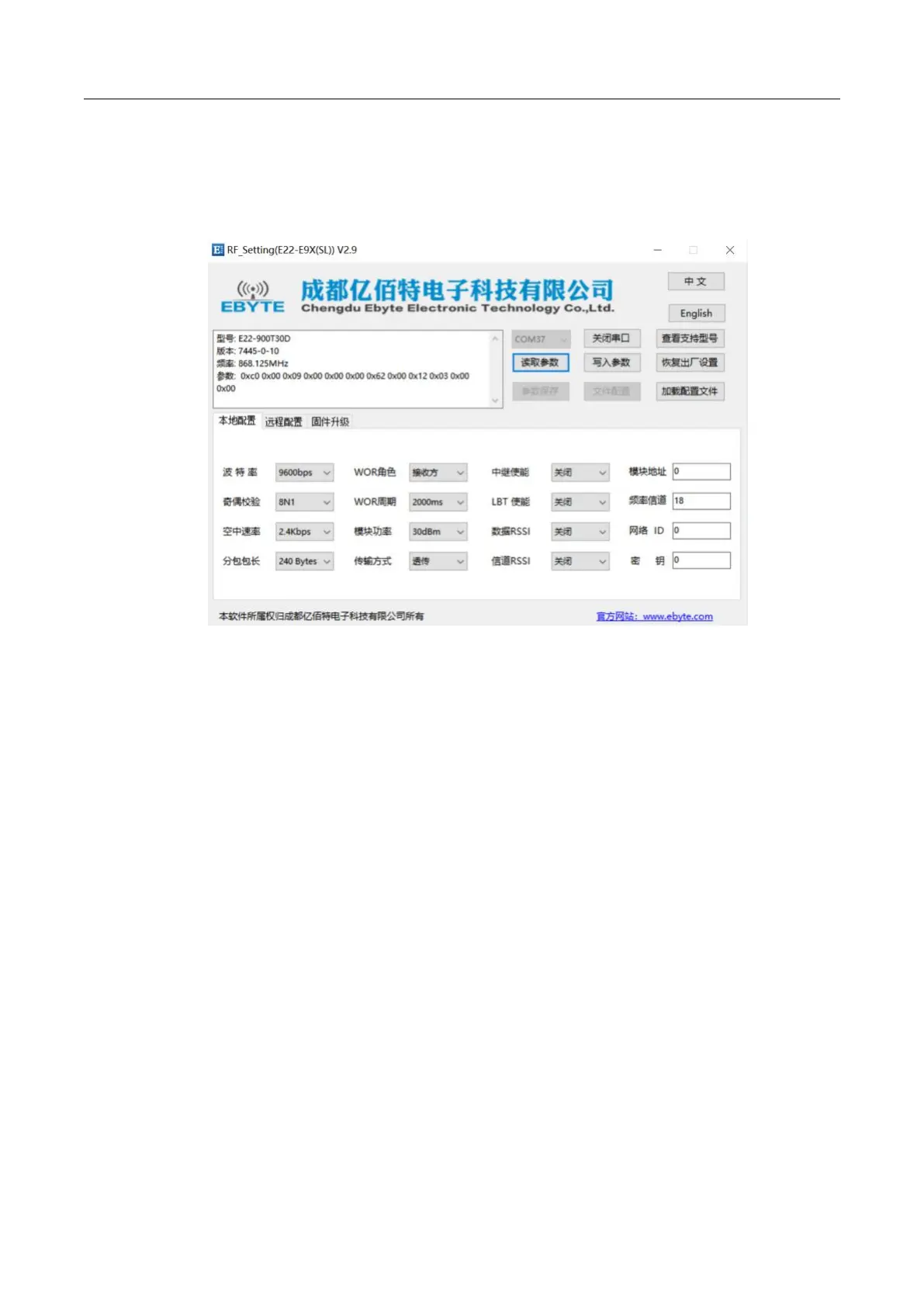

The following figure is the display interface of E22-900T30D configuration on computer. User can switch to the command mode
through M0, M1, and quickly configure and read the parameters on computer.
In the configuration software on computer, the module address, frequency channel, network ID, and key are all in decimal
display mode; The range of values of each parameter is:
Network address: 0
～
65535
Frequency channel: 0
～
80
Network ID: 0～255
Key: 0～65535
When user configures the repeater mode using the host computer, one point much be paid attention to: In the configuration
software, each parameter is in decimal, so the module address and network ID need to be converted when set it.
For example, in the configure software, if the network ID of Transmitter A is input 02, and the network ID of Receiver B is input
10, then the module address of Repeater R should be set as 522. (The address of Repeater R is 0X020A in hex, and it need to be
converted to decimal. )
11. Hardware Design
It is recommended to use a DC regulated power supply to power the module. The power supply ripple coefficient should be as
small as possible, and the module must be reliably grounded;
Please pay attention to the correct connection of the positive and negative poles of the power supply. Reverse connection may
cause permanent damage to the module;
Please check the power supply to ensure that it is within the recommended power supply voltage. If it exceeds the maximum
value, it will cause permanent damage to the module;
