serial
number
Catalog
M1
M0
Notes
Mode 0
Transparent
mode
Off
Off
Serial port open, wireless open, transparent
transmission (factory default mode), support special
command air configuration.
Mode 1
WOR mode
Off
On
Can be defined as WOR sender and WOR receiver,
support air wake-up
Mode 2
configuration
mode
On
Off
The user accesses the register through the serial port to
control the working state of the radio, and the user can
configure the radio through the host computer
configuration software.
Mode 3
sleep mode
On
On
radio goes to sleep
Note: The radio has the function of power-down saving mode (the factory default setting is transparent
transmission mode), the user needs to switch the corresponding mode according to the M1 and M0 indicators
(effective immediately).

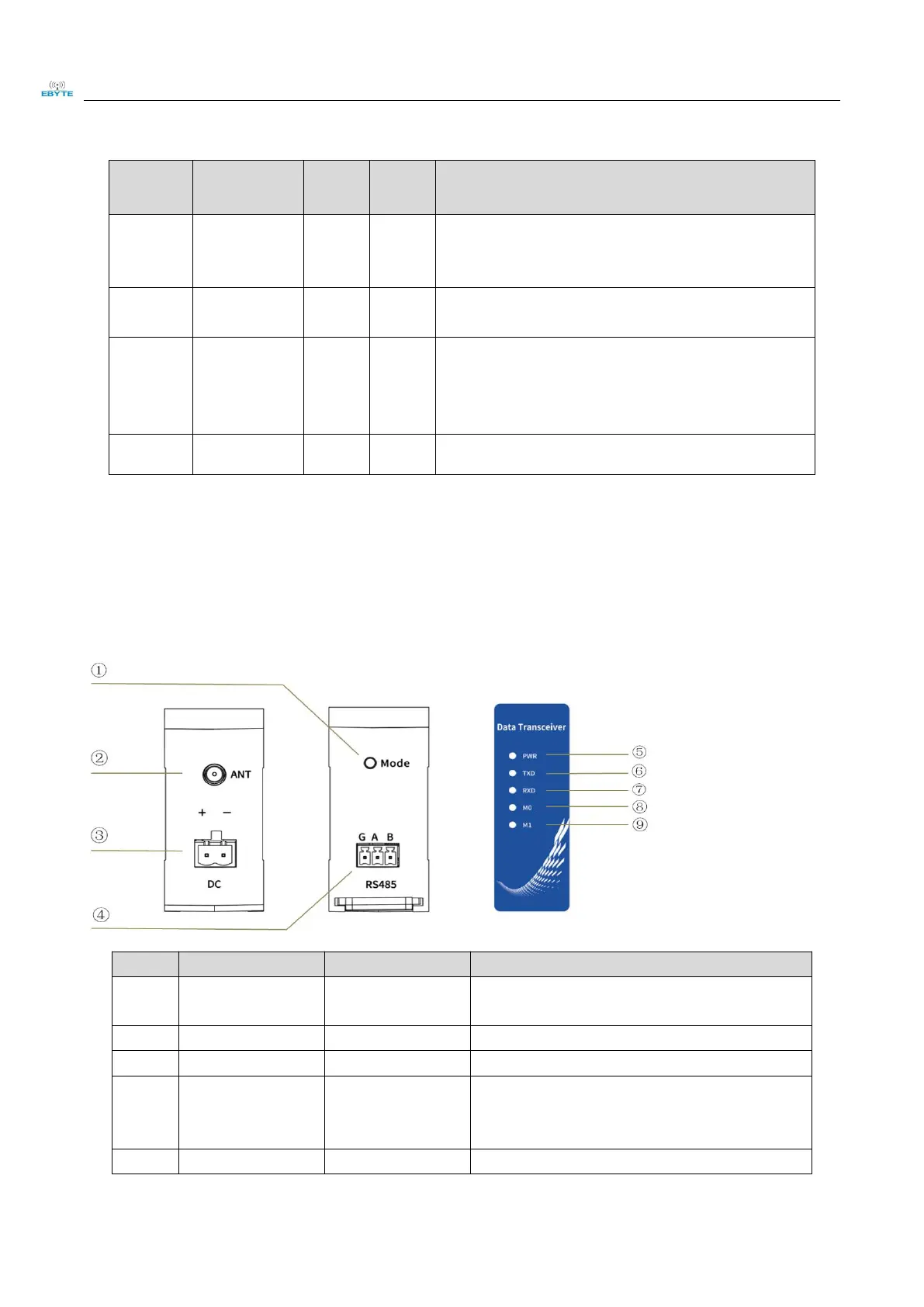

1.4 Description of each part
number
name
function
explanation
1
Mode
Mode switch
button
Working mode switching control
2
ANT
RF interface
SMA-K, external thread internal hole
3
DC
Power interface
DC power input port, crimped port
4
RS485
RS485
communication
port
Standard RS485 interface
5
PWR
Power Indicator
Lights up when the power is turned on
