Echo CS-3000 TYPE 1E - SERIAL NUMBER 2994 - 4033 User Manual

5

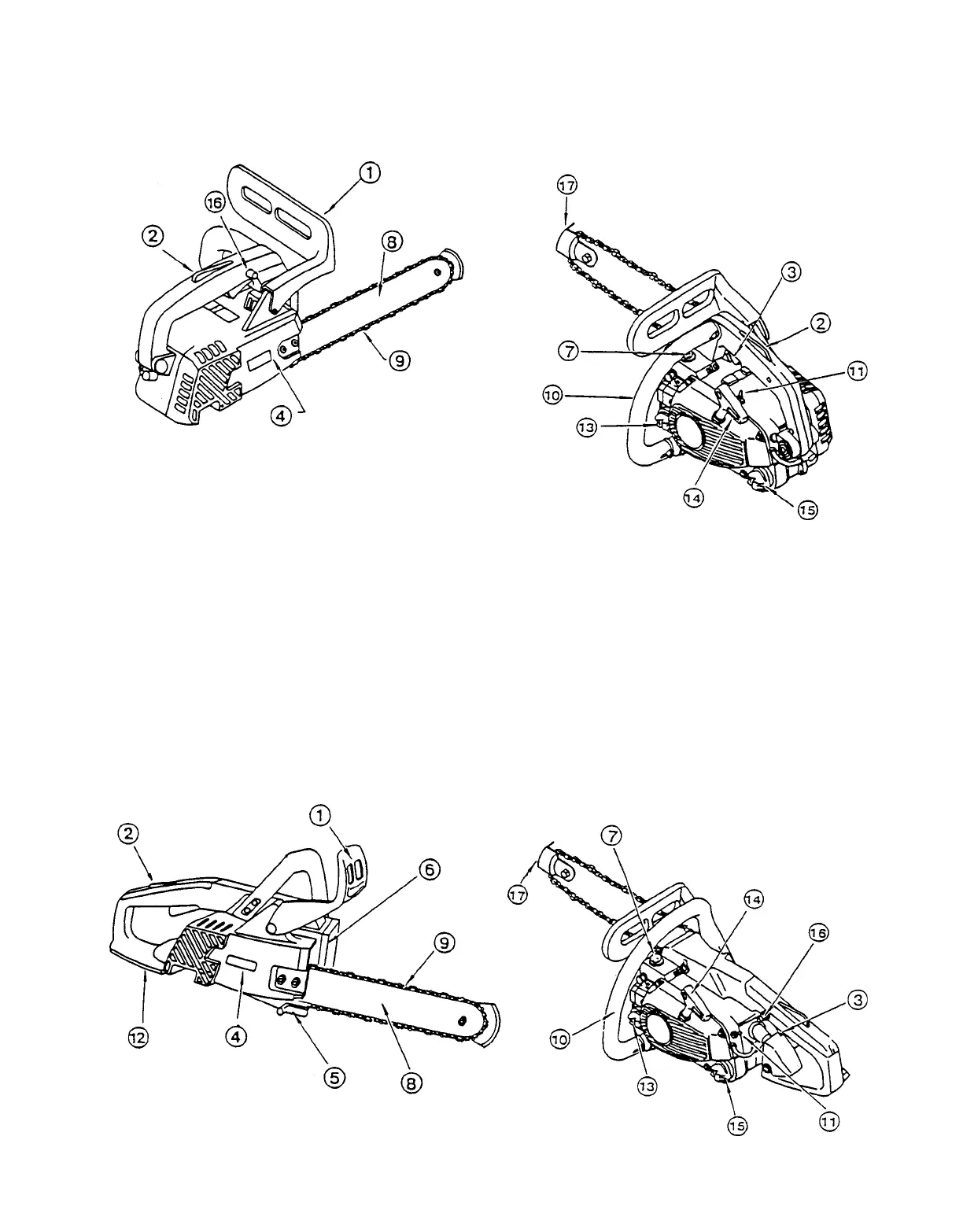

1. Hand guard
(Chain brake actuating lever)
2. Throttle control lockout
3. Throttle control trigger
4. Sprocket guard
5. Chain catcher
6. Air cleaner cover
7. Purge bulb
8. Guide bar
9. Saw chain
10. Front handle
11. On / Off switch
12. Rear hand guard
13. Fuel tank cap
14. Pull starter
15. Oil tank cap
16. Throttle control latch
17. Tip guard
CS-3450
NOMENCLATURE OF PARTS
CS-3000, CS-3400
IMPORTANT
This spark ignition system complies with Canadian ICES-002.

Echo CS-3000 TYPE 1E - SERIAL NUMBER 2994 - 4033 Specifications

General

Displacement	30.1 cc
Engine Type	2-stroke
Chain Pitch	3/8 in.
Chain Gauge	0.050 in.
Bar Length	14-16 inches
Fuel Tank Capacity	300 ml
Oil Tank Capacity	200 ml
Guide Bar Length	14-16 inches
