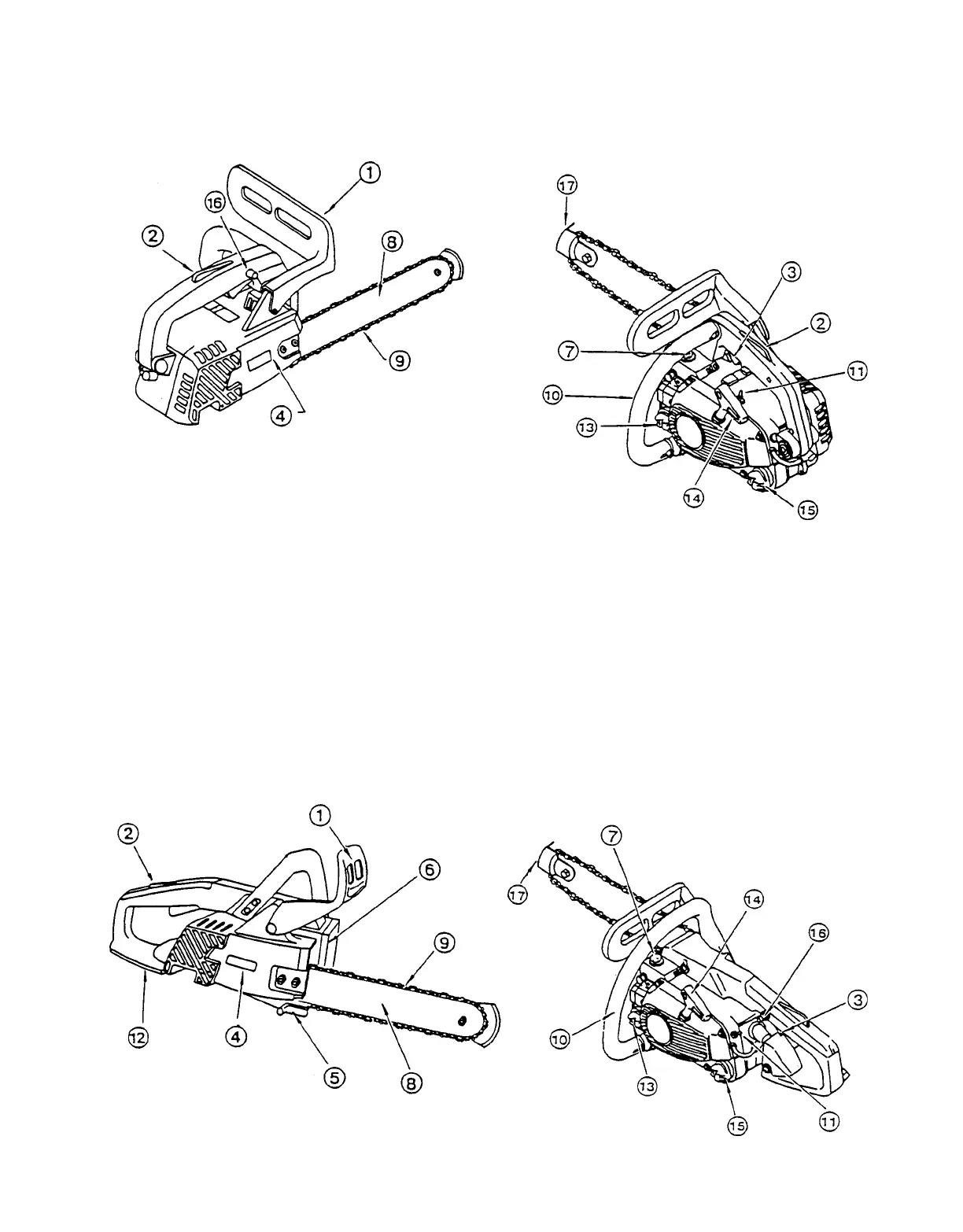

1. Hand guard
(Chain brake actuating lever)
2. Throttle control lockout
3. Throttle control trigger
4. Sprocket guard
5. Chain catcher
6. Air cleaner cover
7. Purge bulb
8. Guide bar
9. Saw chain
10. Front handle
11. On / Off switch
12. Rear hand guard
13. Fuel tank cap
14. Pull starter
15. Oil tank cap
16. Throttle control latch
17. Tip guard
CS-3450
NOMENCLATURE OF PARTS
CS-3000, CS-3400
