Echo GT-200R - 10-07 User Manual

10
C
A
B
A
B
C
D
E

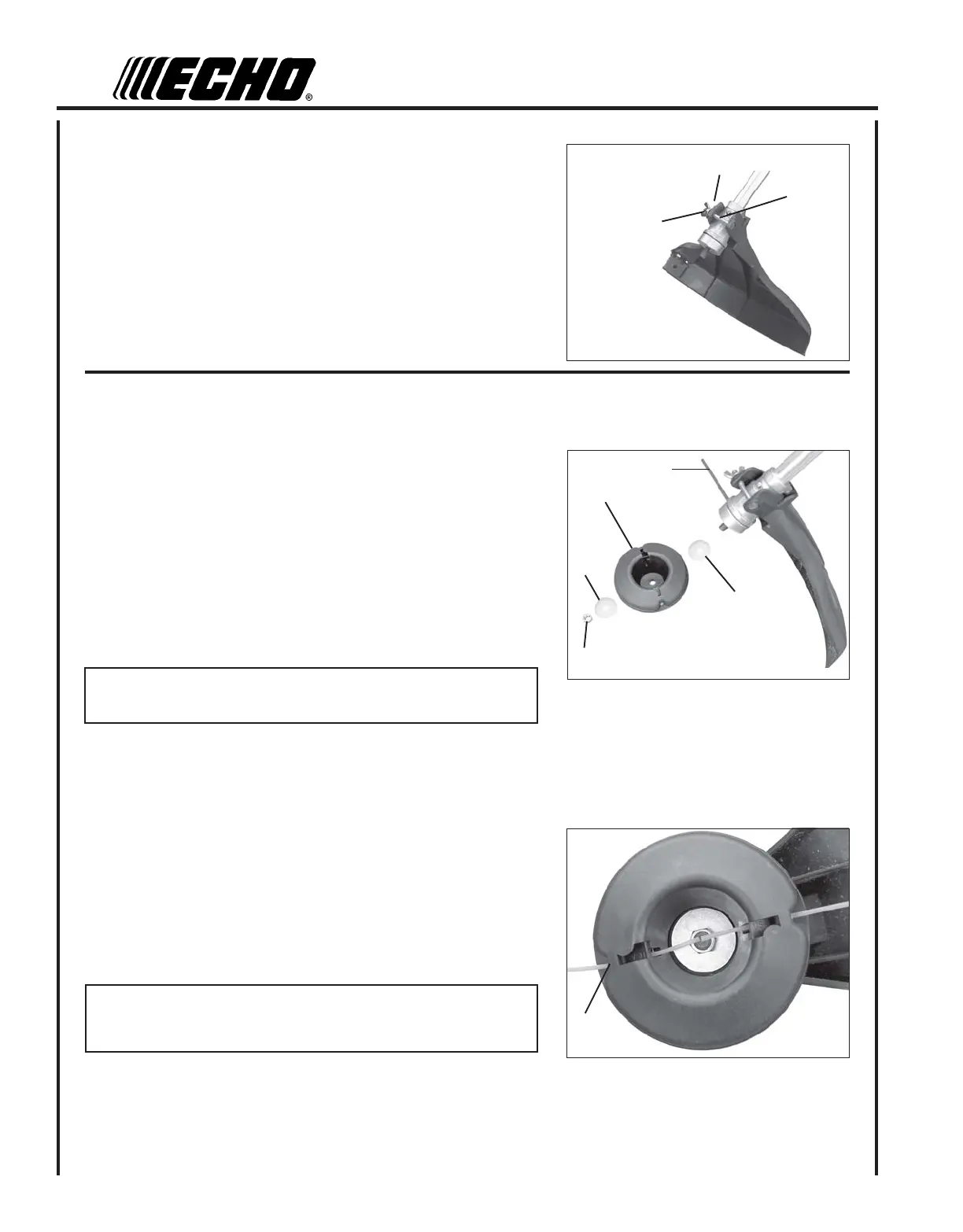

PLASTIC SHIELD INSTALLATION
1. Remove wing nut (A), washer (B), and bolt (C).
2. Snap the shield over the bearing housing.
3. Install bolt (C), washer (B), and wing nut (A).
NYLON LINE HEAD INSTALLATION
1. Remove plastic threaded shaft sleeve from threaded PTO shaft.
2. Align locating hole in upper plate with hole in bearing housing and
insert 5 mm (3/16 in.) diameter locking tool (A).
3. Place large washer (B) then line head (C) on threaded shaft,
followed by small metal washer (D) and locknut (E).
4. Install 3/8-24 locknut using 14.5 mm (9/16 in.) wrench. Turn locknut
clockwise, and tighten securely.
IMPORTANT
Remember to remove the locking tool.
NYLON LINE INSTALLATION
1. Shut engine off. Lay unit on the ground with head assembly up.
2. Remove old nylon line through center recess of head.
3. Thread new lines through outside holes (A) in housing until ends
meet in center of recess.
NOTE
Insert cutting line ends to center of head recess to insure easy
removal of used lines.
A

Echo GT-200R - 10-07 Specifications

General

Engine Type	2-Stroke
Displacement	21.2 cc
Shaft Type	Straight
Fuel Tank Capacity	400 ml
Cutting Width	400 mm
