MAINTENANCE HCA-2620
28 X7502342200
© 5/2017 ECHO Inc.
• Lightly brush debris from filter. Replace filter if it is damaged, fuel
soaked, very dirty, or the rubber sealing edges are deformed.
5. Assemble components in reverse order.

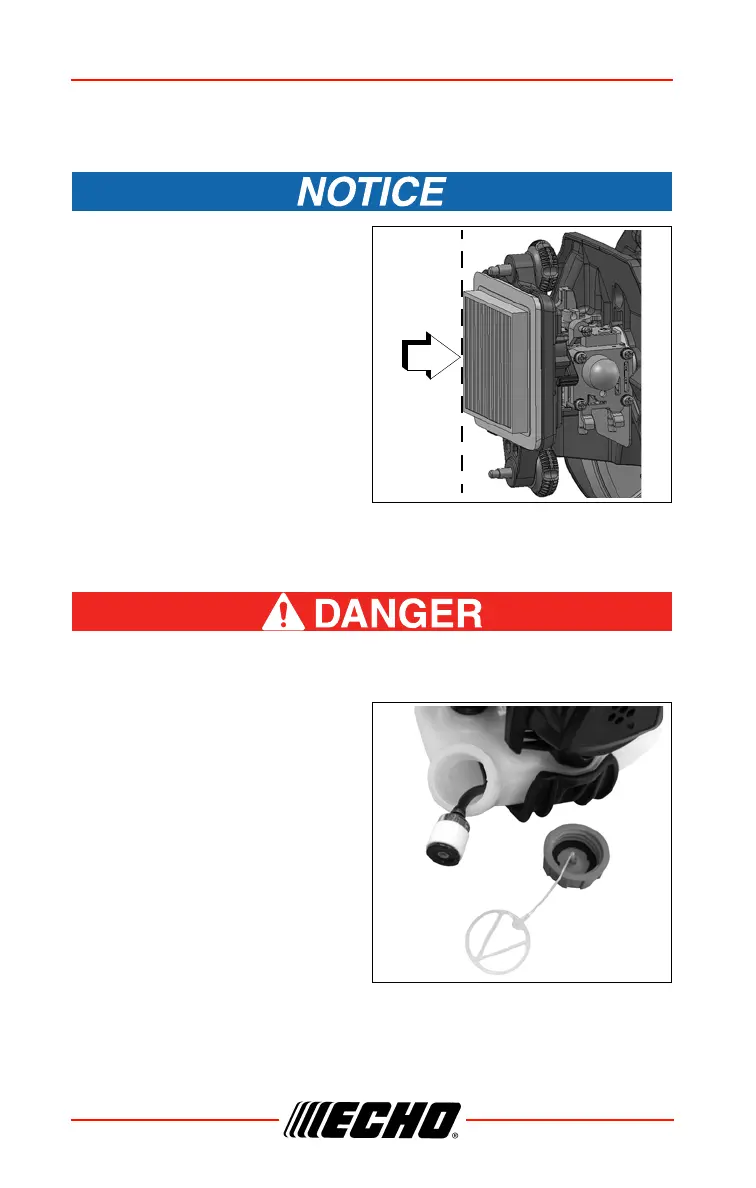

Assure air filter is assembled
with pleats oriented vertically.
Fuel Filter
Level 1.
Fuel is VERY flammable. Use extreme care when mixing, storing
or handling, or serious personal injury may result.
1. Use a clean rag to remove
loose dirt from around fuel cap
and empty fuel tank.
2. Pull the fuel filter from the fuel
tank.
Do not damage fuel line while removing fuel filter from tank.
3. Remove the filter from the line and install the new filter.
Parts Required: Tune Up Kit.
