PB-755S H/T ASSEMBLY
ASSEMBLY
PB-755S H
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.

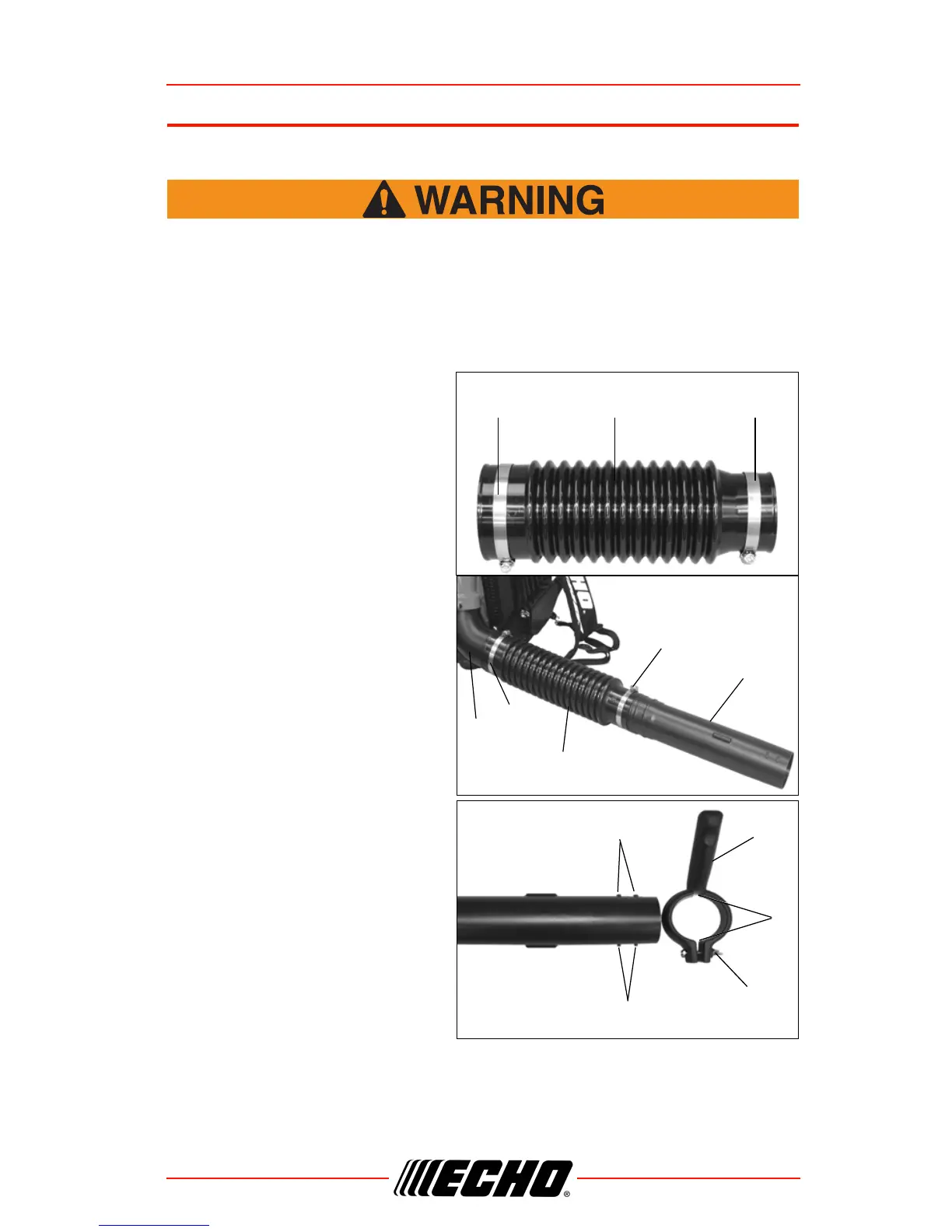

Install Blower Pipes/Stick Handle
1. Assemble clamps (A) onto
both ends of flexible pipe (B).
2. Assemble swivel pipe (C) into
flexible pipe (B) and tighten
clamp (A).
3. Assemble flexible pipe (B) to
elbow (D) on blower and
tighten clamps (A).
Note: A light lubricant may be
used to ease assembly
of flexible pipe to blower
elbow.
4. Loosen wing nut (E)
completely and open stick
handle clamp.
5. Align notches (F) in handle
clamp with tabs (G).
6. Slide stick handle onto swivel
pipe (C). Stick handle (H)
should be angled away from
operator.
7. Position stick handle (H) for
comfortable operation.
Tighten wing nut (E).
A
B
A
D
C
B
A
A
G
E
G
F
H
