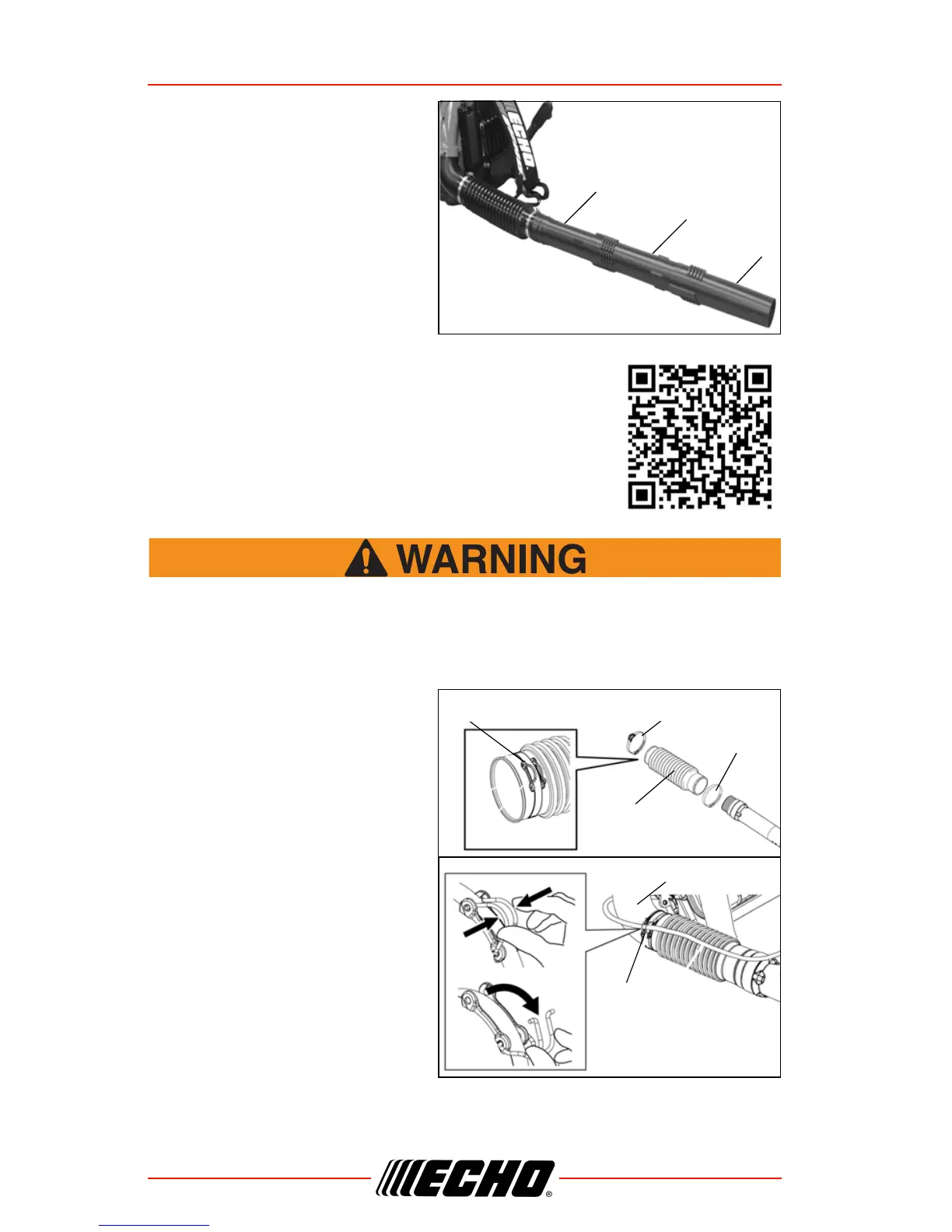

ASSEMBLY PB-755S H/T
18 X7531122809
© 5/2016 ECHO Inc.
8. Assemble straight pipe (K)
onto swivel pipe (C), until you
feel light resistance. Do not
force connection. Hold swivel
pipe and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not
force connection.
9. Assemble straight pipe with
decal (J) to straight pipe (K)
as in step 8.
Note: Blower use will eventually loosen pipe
connections. Exclusive positive locking
system allows pipes to be tightened. If
loosening occurs, remove two straight pipes
and reinstall according to instructions 8 & 9.
PB-755 T
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.
Install Blower Pipes
1. Assemble clamps (A) and (G)
onto both ends of flexible pipe
(B).
Note:
Clamp with cable guide
loop (G) fits elbow end of
flexible pipe.
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
2. Assemble flexible pipe to
elbow (D) on blower. Position
clamp with cable guide loop
(G) on outside of flexible pipe
and tighten clamp.
C
K
J
A
B
G
G
G
D
