11
SRM-22GES

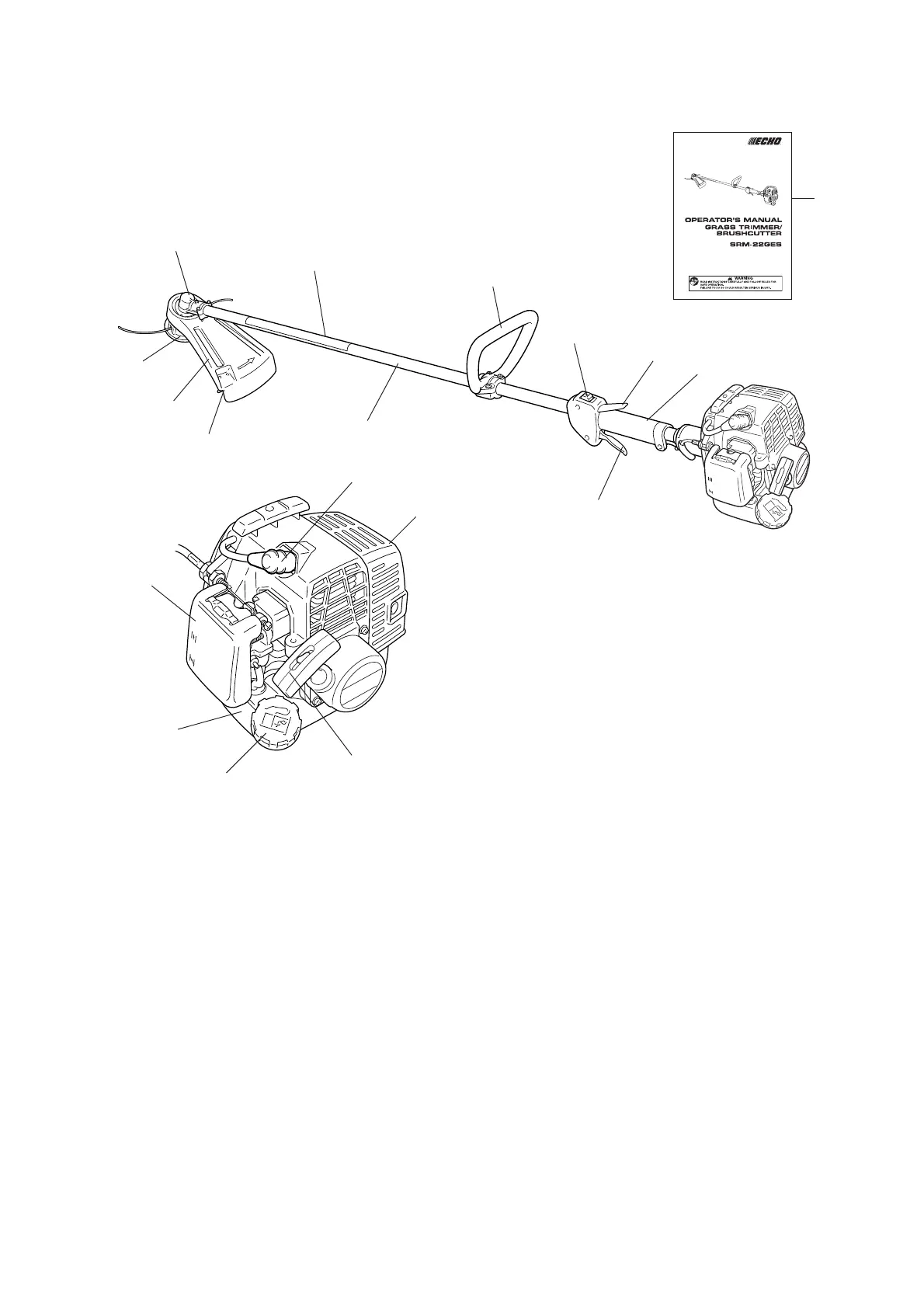

DESCRIPTION
1 OPERATOR’S MANUAL Included with unit. Read
before operation and keep for future reference to learn
proper, safe operating techniques.
2 ANGLE TRANSMISSION Having two gears to change
the angle of rotating axis.
3 CUTTING ATTACHMENT Nylon line head for cutting
grass and weed.
4 SHIELD Device to protect the operator from accidental
contact with the cutting head and thrown objects.
5 CUT OFF KNIFE Cut nylon line to adjust line length to
proper swath.
6 SHAFT TUBE Part of the unit that provides a casing for
power transmission shaft.
7 FRONT (LOOP) HANDLE Light weight, suitable for
Nylon line trimmer only.
8 IGNITION SWITCH ”Slide Switch” mounted on top of
the Throttle Trigger Housing, move switch forward to
RUN, backward to STOP position.
9 THROTTLE TRIGGER Activated by the operator’s
finger for controlling the engine speed.
10 THROTTLE TRIGGER LOCKOUT Locks throttle trigger
in the idling position until you have a proper grip with
your right hand around the handle.
11 GRIP Rear (right hand) handle.
12 AIR CLEANER COVER Covers air filter.
13 FUEL TANK Contains fuel and fuel filter.
14 FUEL TANK CAP For closing the fuel tank.
15 STARTER HANDLE Pull handle to start the engine.
(“ES” START)
16 SILENCER COVER Cover the silencer not to make
operator touch to hot surface of silencer.
17 SPARK PLUG
18 SAFETY DECAL Part Number 8910617-43130
2
3
4
5
6
7
8
9
10
11
18
12
16
17
15
14
13
1
