24
Installing the Motherboard
Connecting I/O Devices

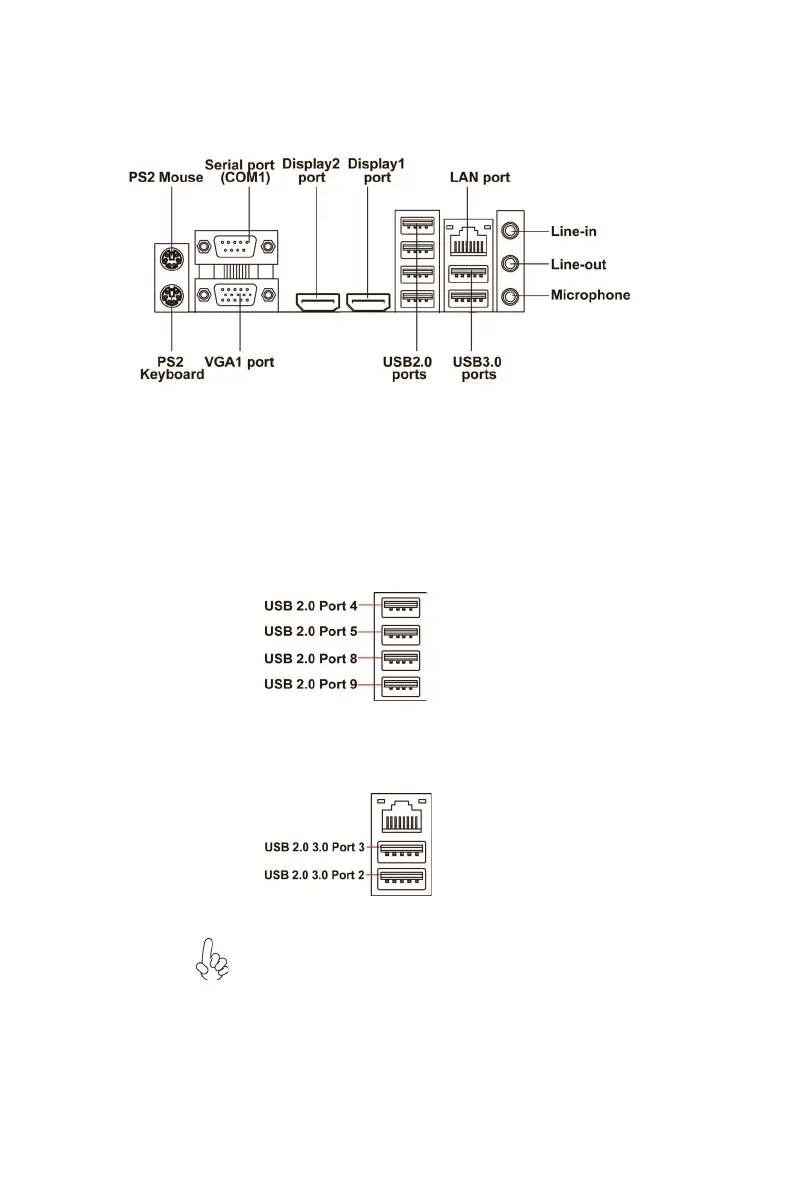

The backplane of the motherboard has the following I/O ports:
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Serial port (COM1)
Audio Ports
Use the three audio ports to connect audio devices. The
first jack is for stereo line-in singal. The second jack is for
stereo line-out singal. The third jack is for microphone.
Use the USB 3.0 ports to connect USB 3.0 devices.
USB 3.0 Ports
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
Use the COM1 port to connect the serial devices such as
mice or fax/modems.
VGA1 Port
Use the USB 2.0 ports to connect USB 2.0 devices.
USB 2.0 Ports
You can connect the display devices to the display ports.
Display1/2 Ports
Use the VGAI port to connect the monitor.
You can switch over the display 1 port by dongle.
