Chapter 2
15
H61H2-M17 USER MANUAL

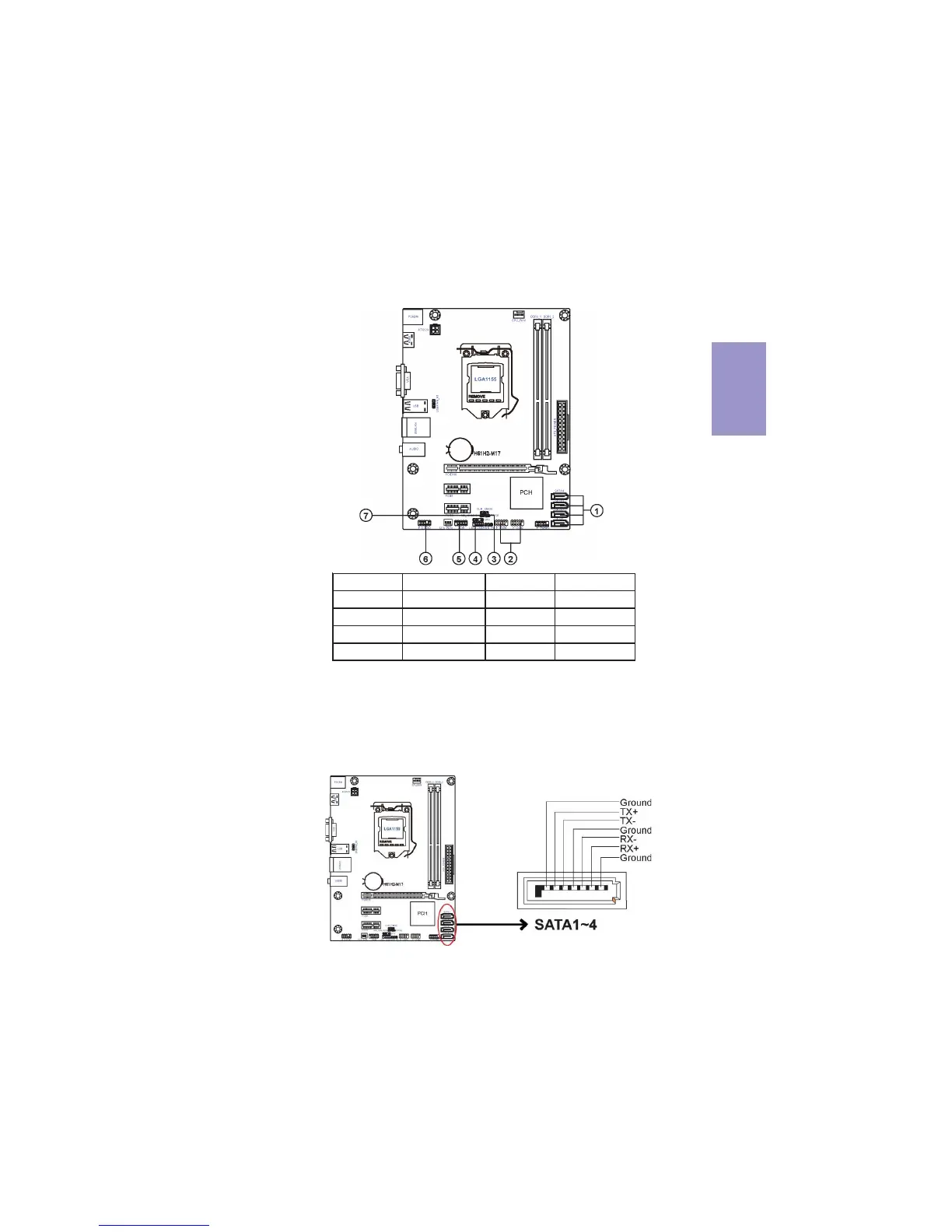

2-4-5. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 SATA1~4 5 COM
2 F_USB1~2 6 F_AUDIO
3CASE7ME_UNLOCK
4 LDC —— ——
SATA2~4 connectors are used to support the Serial ATA 3Gb/s device. Simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current Paral-
lel ATA interface. But maintains register compatibility and software compatibility
with Parallel ATA.
1. SATA1~4: Serial ATA connectors
