ECS H61H2-M17 User Manual

Chapter 3
H61H2-M17 USER MANUAL
33

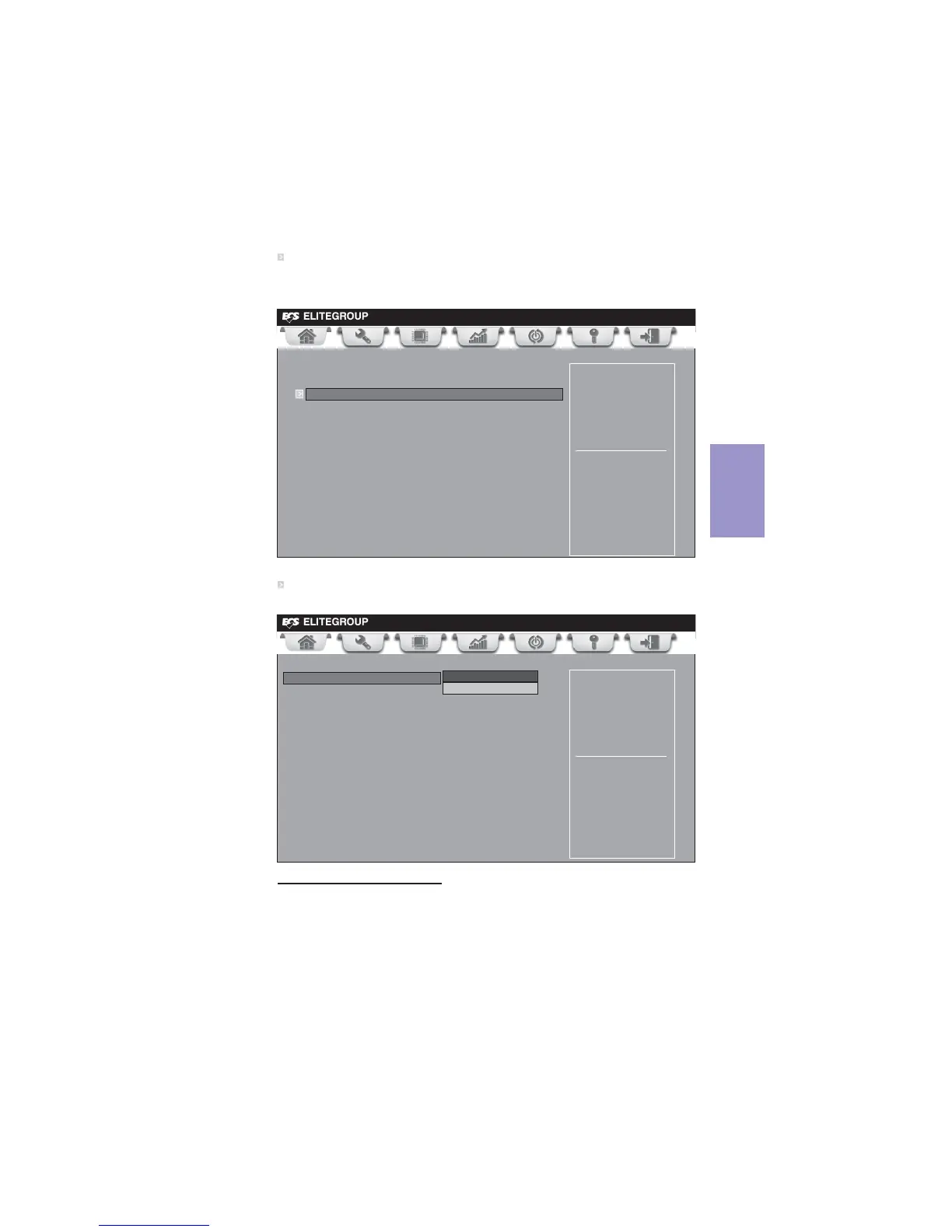

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press <Enter> to view the following screen:
Smart Fan Function
Main Advanced Chipset M.I.B III Boot Security Exit
CPU Fan Speed : 789 RPM
CPU Voltage : 1.168 V
AXG Voltage : 0.448 V
DIMM Voltage : 1.512 V
-=- PECI Mode -=-
Offset to TCC Activation Temp. : -59
Smart Fan Function
PC Health Status
Main Advanced Chipset M.I.B III Boot Security Exit
CPU Smart Fan Control (Enabled)
This item enables you to define the CPU by smartly adjusting the CPU Fan. When it
is set at certain temperature, the CPU Fan PWM value will change accordingly.
+/- : Change Opt.
Enter/Dbl Click : Select
“¤
«‹
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
+/- : Change Opt.
Enter/Dbl Click : Select
“¤
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
«‹
CPU Smart Fan Control Enabled
Smart Fan Mode Normal
High Limit Offset (-) : 30
Low Limit Offset (-) : 40
High Limit PWM : 200
Low Limit PWM : 78
